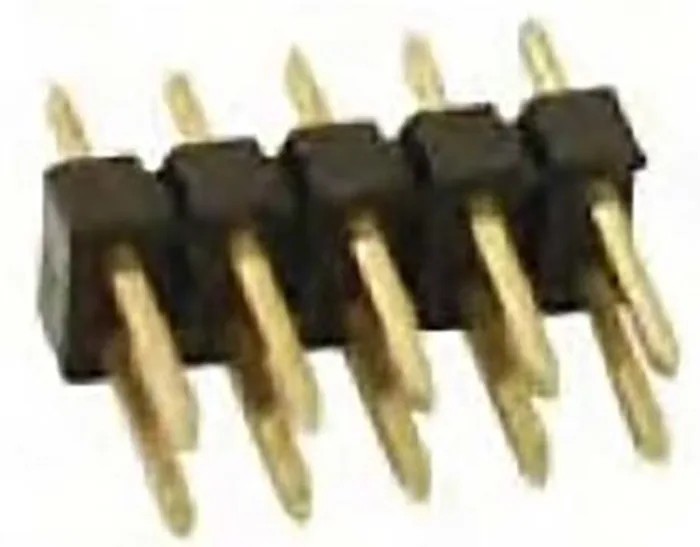

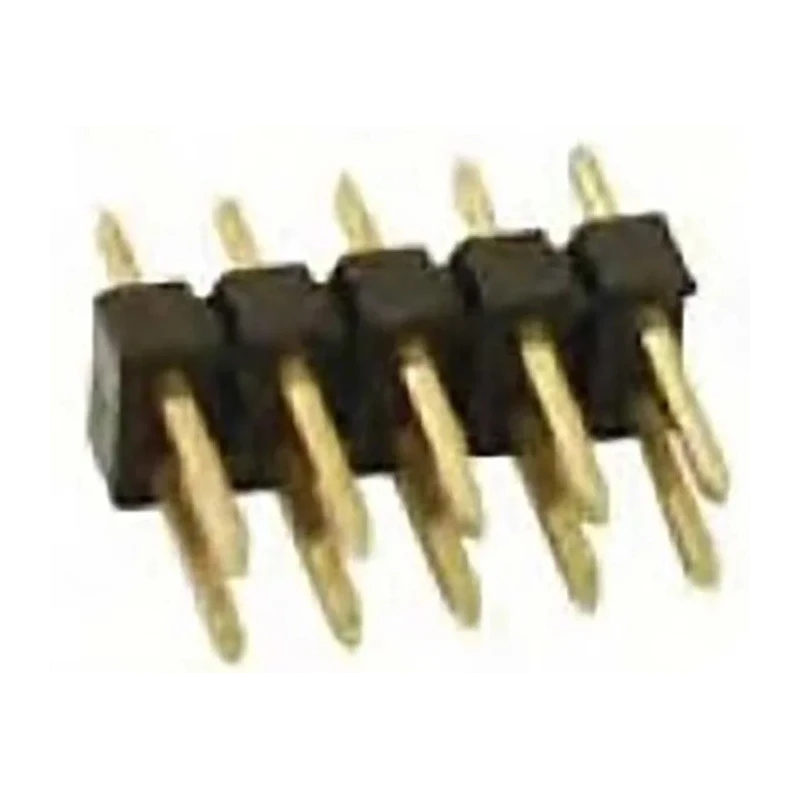

Amphenol Communications Solutions EconoStik Vertical Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch 10129381-906001BLF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 3A |
| Model | 10129381-906001BLF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | EconoStik |
| Termination Type | Right Angle |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Custom Polarization | Available |
Key Features
- Features 6 contacts in a 2 row vertical configuration.
- Standard 2.54 mm pitch for compatibility with PCB layouts.
- Through hole mount type ensures reliable, secure installation.
- Unshrouded, right angle termination for versatile integration.
- High-temperature thermoplastic housing provides durability.
- Brass contacts with gold plating ensure low resistance and corrosion protection.
- Rated for up to 3A current and 1500V voltage, suitable for industrial electronic systems.
- Wide operating temperature range from -55°C to 105°C for harsh conditions.
Product Description
Amphenol Communications Solutions 10129381-906001BLF EconoStik Series Vertical Through Hole Pin Header is designed to deliver reliable performance in complex electronic assemblies. With 6 contacts arranged in 2 rows, this pin header utilizes the industry-standard 2.54 mm pitch, ensuring compatibility with a wide range of PCB connectors and wire housings in industrial, laboratory, and commercial equipment.
The vertical through hole design enables robust, fixed mounting to printed circuit boards. The unshrouded configuration provides easy access for mating connectors and flexible integration in board-to-board and wire-to-board systems. Right angle termination further supports diverse installation requirements. High-temperature thermoplastic housing guarantees mechanical strength, thermal resistance, and long-lasting durability.
Contacts are manufactured from brass and provide low contact resistance, complemented by gold plating for optimal conductivity and corrosion prevention over 50 mating cycles. This header supports up to 3A current and 1500V voltage, meeting operational demands in devices ranging from industrial control systems to test equipment, metering, POS machines, set-top boxes, surveillance equipment, and vending machines.
Operating reliably from -55°C to 105°C, the pin header is suitable for applications in environments with significant temperature fluctuations. Customized mating and tail lengths, as well as custom polarization, are available for tailored assembly needs. RoHS compliance and lead-free construction ensure that the product meets global safety and environmental standards.
Due to its sturdy vertical mounting, the Amphenol EconoStik pin header is ideal for engineers and manufacturers seeking high-quality, high-performance connectors for PCB systems in industrial electronics, laboratory instruments, and professional manufacturing setups. Explore more Amphenol Communications Solutions PCB connectors on EnvMart for comprehensive connectivity options.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a maximum voltage of 1500V, making it suitable for various industrial electronic systems.
It supports a maximum current of 3A, ensuring reliable performance in electronic assemblies.
The pin header has a standard pitch of 2.54 mm, ensuring compatibility with a wide range of PCB layouts.
It features 6 contacts arranged in a 2-row configuration, allowing for versatile connections.
This model utilizes a right angle termination, which supports diverse installation requirements.
The contacts are made from brass and are gold plated to ensure low resistance and corrosion protection.
It operates reliably within a temperature range of -55°C to 105°C, suitable for harsh environmental conditions.
This model features a through hole mount type, ensuring a secure installation on printed circuit boards.
Yes, customized polarization options are available for tailored assembly needs.
The housing is made from high-temperature thermoplastic, providing mechanical strength and thermal resistance.
It supports a board-to-board connector system, facilitating flexible integration in various applications.
The country of origin for this pin header is India.
