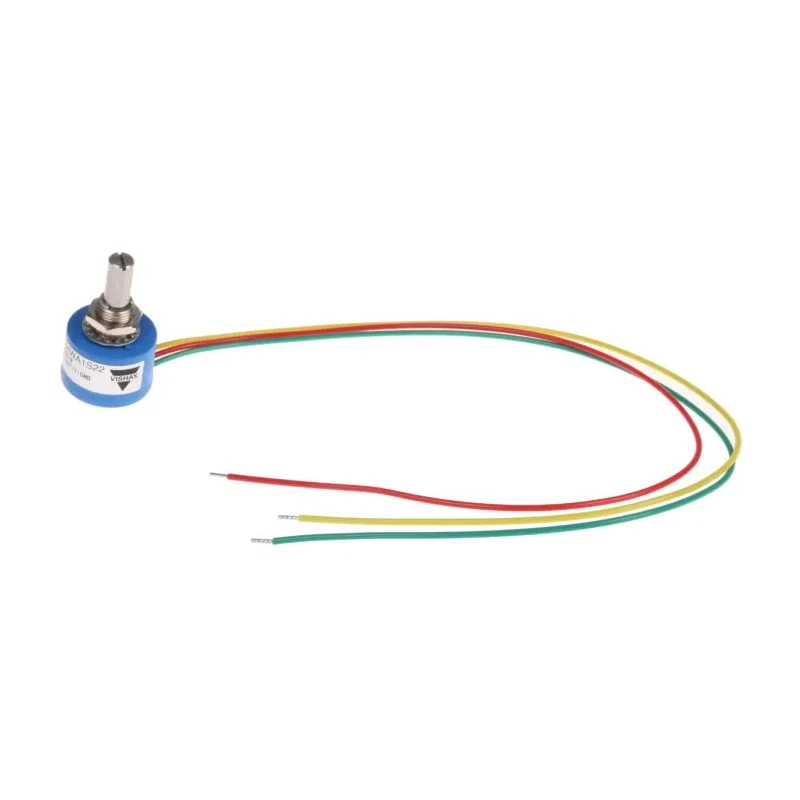

Vishay 351 HE Rotary Potentiometer 1-Turns Panel Mount Shaft Diameter 6.35mm 351HE0B4WA1S22
Specifications
| Country of Origin | France |
|---|---|
| Brand | Vishay |
| Length | 37.8mm |
| Model | 351HE0B4WA1S22 |
| Packaging | Bulk |
| Mount Type | Panel Mount |
| Series | 351 HE |
| Maximum Operating Temperature | 125°C |
| Actuator Type | Single-turn Rotating Shaft |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Shaft Length | 22.2mm |
| Standards/Approvals | RoHS |
| Termination Style | Wire |
| Element Material | Thermoplastic |
| Long life | greater than 10M cycles |
| Potentiometer Type | Rotary |
| Number of Turns | 1 |
| Electrical Taper | Linear |
| Accurate linearity down to | ± 0.5 % |
| Non contacting technology | Hall Effect |
Key Features
- Single-turn bushing mount potentiometer with Hall Effect technology for non-contact operation.
- Shaft diameter measures 6.35mm with a shaft length of 22.2mm for secure mounting.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
- Offers accurate linearity down to ±0.5% ensuring precise resistance control.
- Long operational life exceeding 10 million cycles.
- Termination style is wire type facilitating flexible wiring options.
- Panel mount type provides stable installation into control panels.
- Conforms to RoHS standards for environmental compliance.
Product Description
Vishay 351HE0B4WA1S22 Rotary Potentiometer is a single-turn, panel mount rotary potentiometer featuring advanced Hall Effect technology. Designed for high precision and durability, this potentiometer offers linear electrical taper and a thermoplastic element material that supports stable resistance under varied environmental conditions.
The potentiometer has a shaft diameter of 6.35mm and shaft length of 22.2mm, with an overall length of 37.8mm. It operates within a wide temperature range from -40°C to 125°C, making it suitable for demanding industrial and automotive environments.
Equipped with non-contact Hall Effect sensing technology, the 351 HE series potentiometers provide superior resistance to vibration up to 20G and shocks up to 50G, greatly enhancing reliability in harsh conditions. It achieves accurate linearity down to ±0.5% and boasts a long lifespan exceeding 10 million cycles.
Mount type is panel mount with wire termination, providing versatile installation options. The device complies with RoHS, ensuring environmentally safe manufacturing standards.
Common industrial and automotive use cases include foot pedal position sensing, throttle position, steering position sensing, rudder position feedback, autopilot feedback, drive-by-wire systems, lift and shuttle position control, tilt control, and suspension system position sensing. These applications span marine, avionics, forklift trucks, farm equipment, and automotive sectors.
Single-turn bushing mount potentiometer with Hall Effect non-contact technology. 6.35mm shaft diameter and 22.2mm shaft length for rigid panel mounting. Operating temperature between -40°C and 125°C. ±0.5% linearity accuracy for precise control.
Service life greater than 10 million cycles. Wire termination style allows flexible wiring. Panel mounted configuration for stable equipment integration. RoHS compliant for environmental safety. Suitable for industrial and automotive sensor applications.
This Vishay rotary Potentiometer is optimized for use in rugged environments where reliability and accuracy are critical. Its design supports advanced sensing demands in various commercial and industrial automation systems. Explore the full Vishay component range on EnvMart for compatible related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
The shaft diameter is 6.35mm and the shaft length is 22.2mm, designed for secure panel mounting.
It has a long operational life exceeding 10 million cycles, ensuring durability in use.
It features a wire termination style, providing flexible wiring options for installation.
This model utilizes Hall Effect technology for non-contact operation, enhancing reliability.
It offers accurate linearity down to ±0.5%, ensuring precise resistance control.
It is a panel mount type, providing stable installation into control panels.
The overall length of this model is 37.8mm.
It is commonly used in applications such as foot pedal position sensing, throttle position, and autopilot feedback among others.
Yes, it conforms to RoHS standards for environmental compliance, ensuring safe manufacturing practices.
It features a linear electrical taper, which is standard for rotary potentiometers.
The actuator type is a single-turn rotating shaft, designed for specific applications requiring one complete turn.
