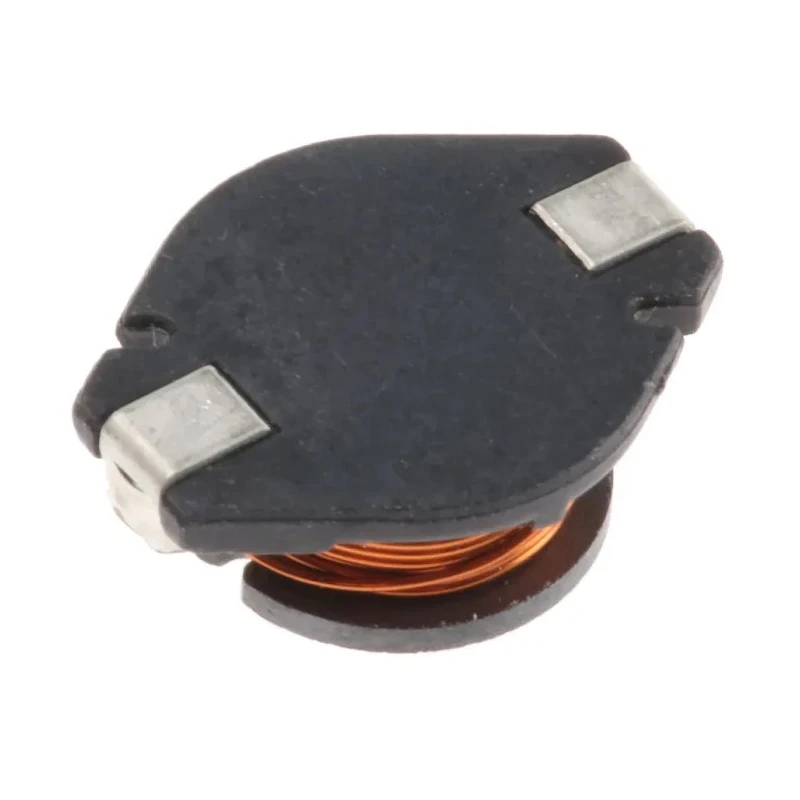

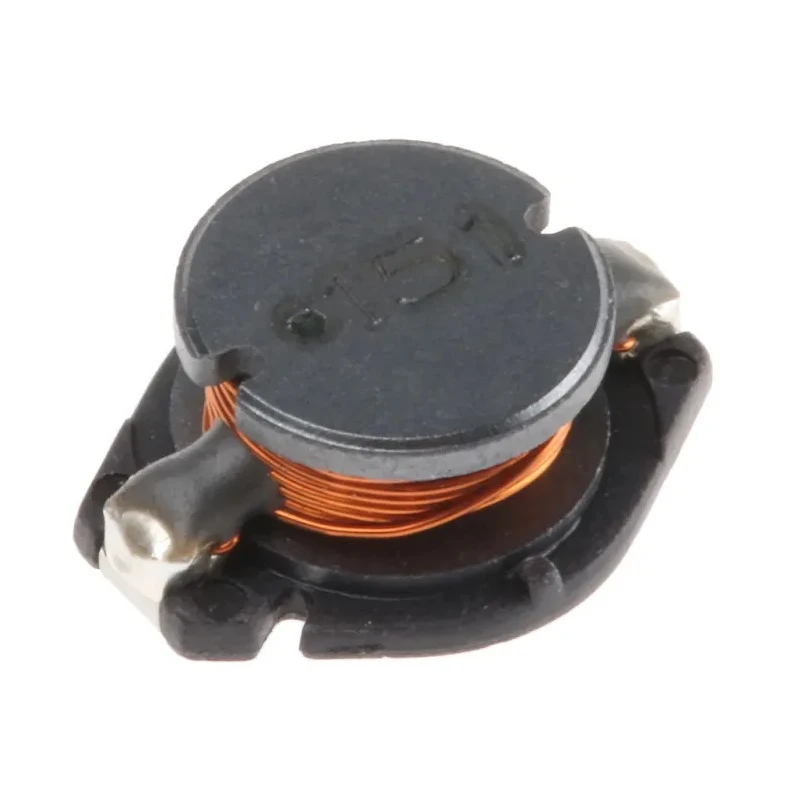

Wurth Elektronik WE-PD4 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 150μH ±10% 1A Idc 74456215
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 5mm |
| Length | 12.7mm |
| Model | 74456215 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 150μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 590mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5.3MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact WE-PD4 series design suitable for surface mount applications.
- Inductance tolerance of ±10% ensures reliable circuit performance.
- Low loss ferrite core material for efficient power handling.
- Maximum DC resistance of 590mΩ for minimal energy loss.
- Operating temperature range from -40°C to 125°C for harsh conditions.
- Construction includes a moulded wirewound inductor with no shielding.
- Maximum self-resonant frequency of 5.3MHz appropriate for high-frequency applications.
- Packaging supplied as tape and reel for automated PCB assembly.
Product Description
The Wurth Elektronik 74456215 WE-PD4 series is an unshielded wirewound surface mount inductor designed with a ferrite core. It offers a 150μH inductance with ±10% tolerance, handling a maximum DC current of 1A. The compact and low loss ferrite core construction enables efficient operation in high-frequency circuits up to 5.3MHz.
This inductor features a moulded wirewound design with a diameter of 7.6mm, length of 12.7mm, height of 5mm, and depth of 10mm. It has a maximum DC resistance of 590mΩ and operates reliably between -40°C and +125°C. It is packaged in tape and reel format, facilitating surface mount technology (SMT) assembly processes for electronic manufacturing.
Typically used in power supply circuits, interference suppression, and high efficiency switch mode power supply units (SMPSUs), this component meets RoHS, REACH, and JEDEC JS709B standards, ensuring compliance with environmental and quality requirements.
Its wirewound construction with a ferrite core provides durability and consistent inductance under demanding electrical conditions without shielding, making it suitable for applications where shielding is not required.
Compact and low loss ferrite core wirewound design. Suitable for high-frequency applications up to 5.3MHz. Reliable operating temperature range from -40°C to 125°C. Surface mount termination style for streamlined PCB assembly.
Compliance with RoHS, REACH, and JEDEC standards. Efficient power inductors for high efficiency SMPSUs and interference suppression. Explore the Electronics Components category at EnvMart to find more Surface Mount Inductors and related power components optimized for advanced electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 150μH with a tolerance of ±10%.
This unit can handle a maximum DC current of 1A.
The inductor has a diameter of 7.6mm, a length of 12.7mm, a height of 5mm, and a depth of 10mm.
The maximum DC resistance is 590mΩ, which minimizes energy loss during operation.
It operates reliably within a temperature range of -40°C to +125°C.
The maximum self-resonant frequency is 5.3MHz, making it suitable for high-frequency applications.
This inductor features a wirewound construction with a ferrite core and is unshielded.
It is packaged in tape and reel format, which facilitates automated PCB assembly processes.
It meets RoHS, REACH, and JEDEC JS709B standards, ensuring compliance with environmental and quality requirements.
This inductor is typically used in power supply circuits, interference suppression, and high efficiency switch mode power supply units (SMPSUs).
The termination style of this model is surface mount, suitable for SMT applications.
The core material used in this inductor is ferrite, which contributes to its low loss characteristics.
