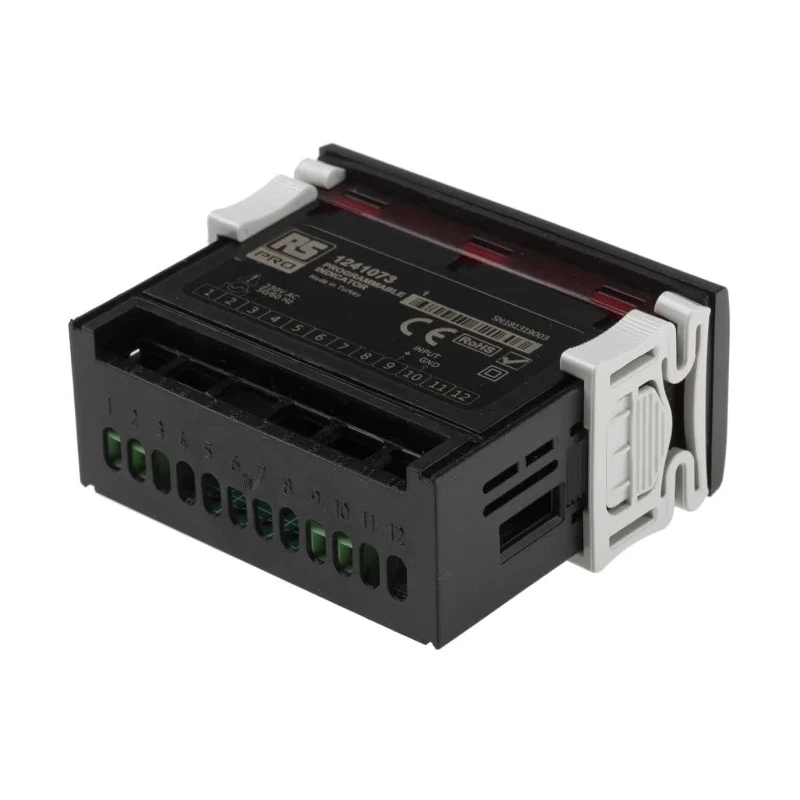

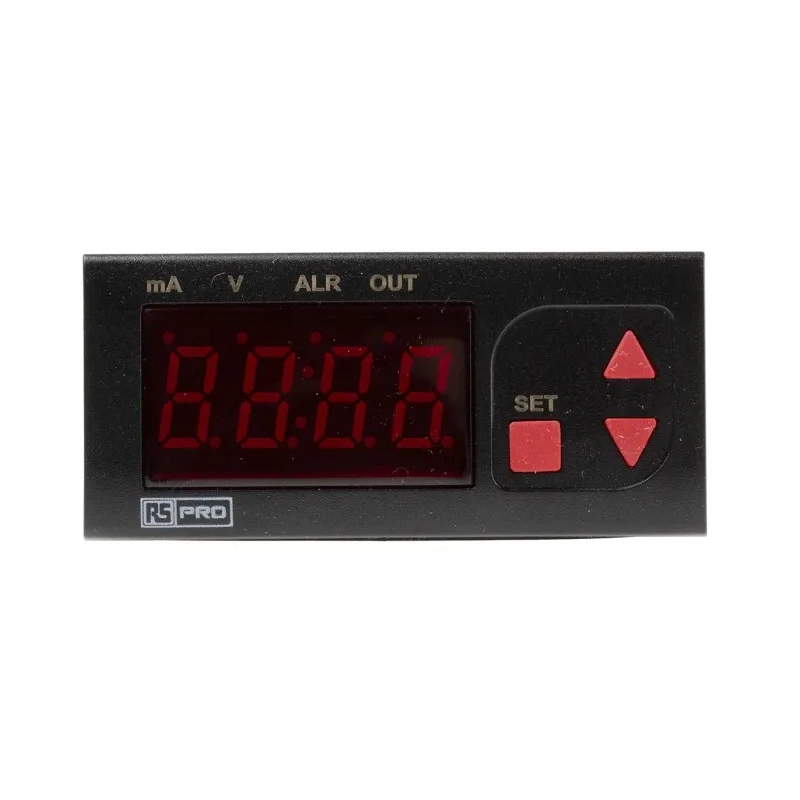

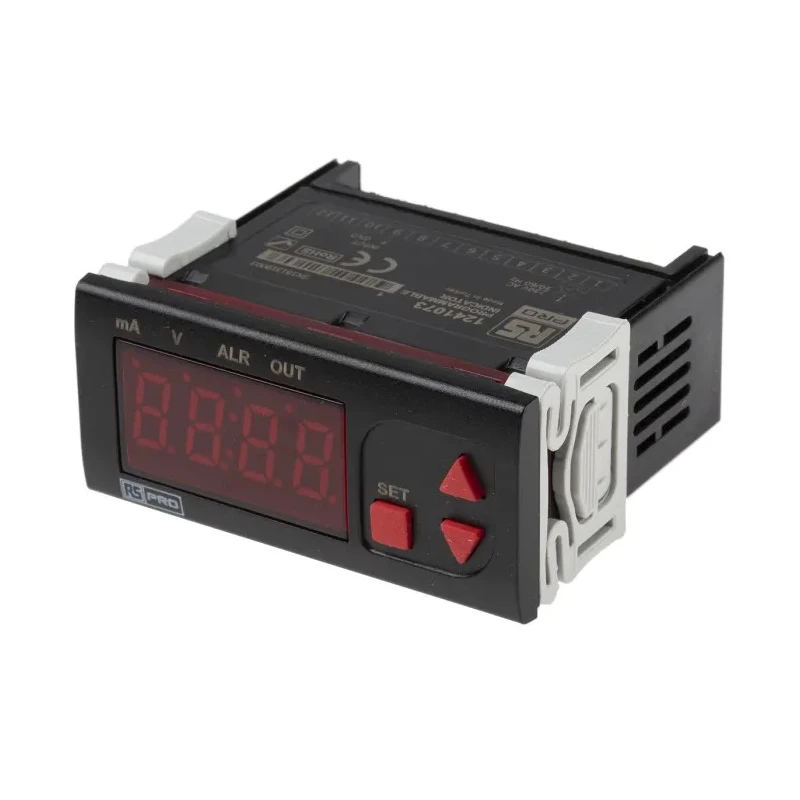

RS PRO Panel Mount Temperature Indicator 4 Input, 5 Output, 253V AC 124-1073
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | 4 Digit |
| Brand | RS PRO |
| Length | 71mm |
| Model | 124-1073 |
| IP Rating | IP20, IP65 |
| Width | 77mm |
| Mount Type | Panel Mount |
| Number of inputs | 4 |
| Series | RS PRO |
| Input Type | 0 to 10 V, 0 to 1 V, 0 to 20 mA, 4 to 20 mA |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 25mA |
| Number of outputs | 5 |
| Terminal type | Screw |
| Maximum Voltage | 12V |
| Maximum Supply Voltage | 253V ac |
| Digital Comms | RS485 Modbus RTU |
| Panel Depth | 71mm |
| Standards/Approvals EN 61010-1 | 2010, EN 61326-1:2013 |
| Eliwell LED Digital Panel Multi-Function Meter, 29mm x 71mmBrand | Eliwell |
Key Features
- Equipped to handle 4 selectable input types including 0 to 10 V, 0 to 1 V, 0 to 20 mA, and 4 to 20 mA.
- Supports 5 output connections for versatile control and monitoring.
- Features a 4-digit LCD display with adjustable decimal points for easy readability.
- Designed for panel mounting with compact dimensions of 77 mm width and 71 mm length.
- Operates reliably within 0°C to 50°C temperature range, with IP20 and IP65 ingress protection.
- Includes RS485 Modbus RTU digital communications for integration in automation systems.
- Utilizes screw terminal connections ensuring secure wiring and installation.
- Powered by a maximum supply voltage of 253 V AC for industrial power environments.
Product Description
RS PRO 124-1073 is a panel mount temperature indicator designed for industrial process temperature measurement and control. This device is highly adaptable with four selectable input types, including voltage and current inputs such as 0 to 10 V, 0 to 1 V, 0 to 20 mA, and 4 to 20 mA, allowing it to be used across diverse applications requiring precision temperature monitoring.
The indicator features a clear 4-digit LCD that displays temperature readings with selectable decimal points, enabling precise observation. It supports five outputs, facilitating multiple control and alarm functions integral to process systems. With an IP rating of IP20 and IP65, the device offers protection against dust and water, making it suitable for harsh industrial environments.
Its compact size, measuring 77 mm wide and 71 mm deep, fits conveniently into panels via screw-type terminals ensuring easy and stable installation. The instrument complies with EN 61010-1:2010 for electrical safety and EN 61326-1:2013 for EMC, ensuring reliable operation within industrial safety standards.
The device incorporates RS485 Modbus RTU communication protocol, allowing integration with modern automation and control systems. It operates on a maximum supply voltage of 253 V AC and is certified for use up to 50°C ambient temperatures, catering well to manufacturing, HVAC, water treatment, and other industrial control applications. Manufactured in Turkey, this temperature indicator aligns with international quality and compliance norms.
Equipped to handle 4 selectable input types including 0 to 10 V, 0 to 1 V, 0 to 20 mA, and 4 to 20 mA. Supports 5 output connections for versatile control and monitoring. Features a 4-digit LCD display with adjustable decimal points for easy readability.
Designed for panel mounting with compact dimensions of 77 mm width and 71 mm length. Operates reliably within 0°C to 50°C temperature range, with IP20 and IP65 ingress protection. Includes RS485 Modbus RTU digital communications for integration in automation systems.
Utilizes screw terminal connections ensuring secure wiring and installation. Complies with EN 61010-1:2010 and EN 61326-1:2013 standards for safety and electromagnetic compatibility. Powered by a maximum supply voltage of 253 V AC for industrial power environments.
This RS PRO temperature indicator is ideal for industrial and laboratory automation, process control, HVAC system management, manufacturing line temperature monitoring, and water treatment plant applications. Its versatility and rugged design ensure optimal performance in demanding environments.
Explore more related temperature control and indication products within the Measuring & Testing Instruments category at EnvMart.
Explore more products in our Temperature Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports four selectable input types: 0 to 10 V, 0 to 1 V, 0 to 20 mA, and 4 to 20 mA.
It operates on a maximum supply voltage of 253 V AC, suitable for industrial power environments.
This unit features five output connections for versatile control and monitoring.
The compact dimensions are 77 mm in width and 71 mm in depth, designed for easy panel mounting.
It operates reliably within a temperature range of 0°C to 50°C.
It features a 4-digit LCD display with adjustable decimal points for easy readability.
It includes RS485 Modbus RTU digital communications for integration in automation systems.
This temperature indicator has IP20 and IP65 ingress protection ratings, offering resistance against dust and water.
It complies with EN 61010-1:2010 for electrical safety and EN 61326-1:2013 for electromagnetic compatibility.
It utilizes screw terminal connections, ensuring secure wiring and installation.
This model is manufactured in Turkey, adhering to international quality and compliance norms.
It is suitable for applications in manufacturing, HVAC, water treatment, and laboratory automation.
