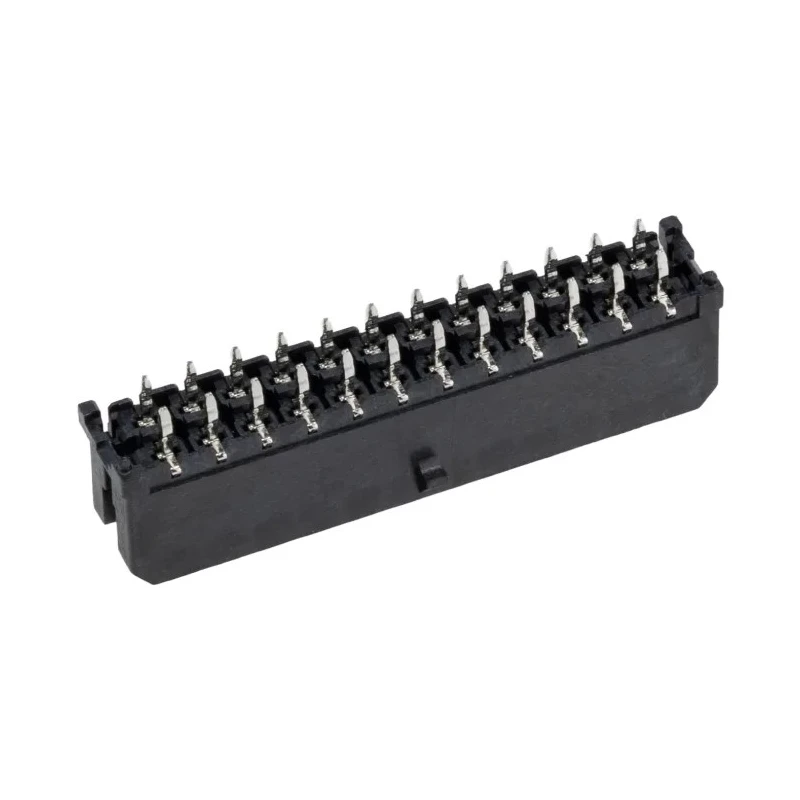

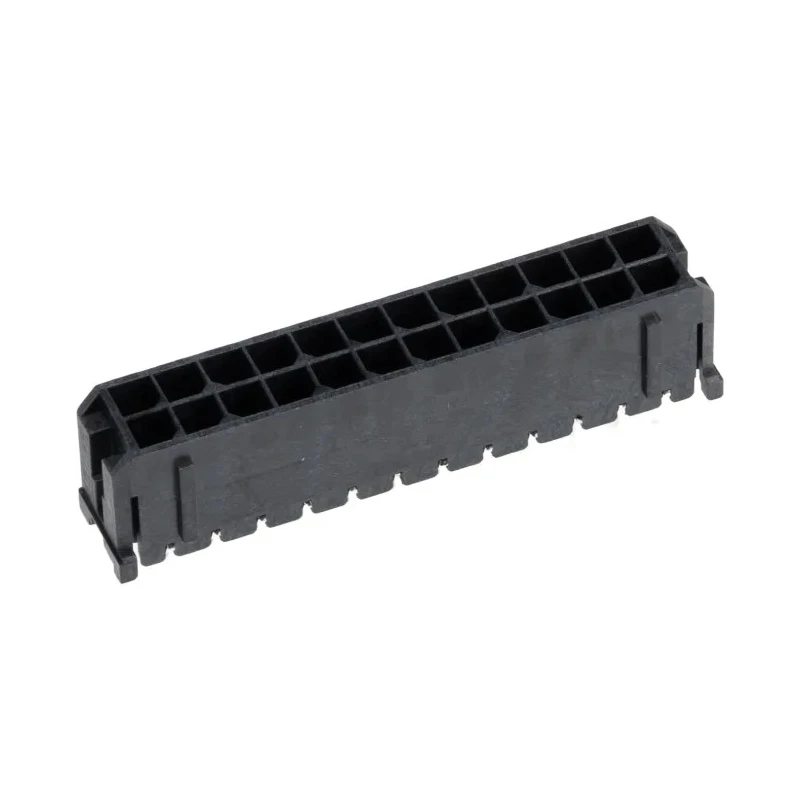

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header, 24 Contacts, 3 mm Pitch, Dual Row, Shrouded 43045-2412
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 8.5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Supports 8.5A current with 600V maximum voltage rating.
- Features a 3 mm pitch for compact PCB layouts.
- Shrouded design enhances connection stability and protection.
- Constructed with brass contacts plated in tin for durability.
- Operates reliably between -40°C and 125°C for harsh environments.
- Designed for through-hole mounting with solder termination.
- Suitable for wire-to-board connection systems.
- Male contact gender with 3 mm mating pin length ensures secure mating.
Product Description
Molex 43045-2412 Micro-Fit 3.0 Series Vertical Through Hole PCB Header is engineered for reliable electrical connections in electronic and industrial applications. This 24-contact, dual row header features a 3 mm pitch and is shrouded to improve connection security and reduce risk of misalignment during assembly.
The header supports a current rating of 8.5A and withstands voltages up to 600V, making it suitable for a wide range of power and signal transmission tasks. Its brass contacts are plated with tin and designed to endure challenging thermal conditions, operating efficiently from -40°C to 125°C.
Specially designed for through-hole mounting, the product ensures mechanical stability via kinked pins, simplifying soldering and enhancing durability. Its wire-to-board connector system and male contact gender provide compatibility with complementary components in automation machinery, industrial electronics, and PCB assemblies.
With a mating pin length of 3 mm, this PCB header supports up to 30 mating cycles, assuring long-term dependable operation. Ideal for power transmission and control applications within industrial, manufacturing, and electronic settings.
Supports 8.5A current with 600V maximum voltage rating. 3 mm pitch with 2-row dual configuration for space optimization. Durable brass contacts with tin plating for corrosion resistance. Operating temperature range from -40°C to 125°C for rugged conditions.
Through-hole mount type with solder termination ensures firm installation. Shrouded housing improves connector durability and safety. Designed for wire-to-board connector systems with male contact gender. Up to 30 mating cycles for reliable repeated connections.
Recommended PCB thickness of 1.60 mm for optimal performance. Highly suited for industrial automation, electronic device connections, and PCB assemblies.
This Molex PCB header is a vital component for precise electrical connectivity in electronics manufacturing and industrial applications. It supports robust performance in demanding environments, ensuring consistent functionality and ease of use.
Explore detailed technical specifications and browsing options for Molex products and other PCB Headers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 8.5A.
It can withstand voltages up to 600V.
The pitch of the contacts is 3 mm.
This model features 24 contacts.
It operates reliably between -40°C and 125°C.
It is designed for through-hole mounting with solder termination.
The contacts are made from brass and are plated with tin.
This PCB header has male contact gender.
It supports up to 30 mating cycles.
The recommended PCB thickness is 1.60 mm.
It is designed for wire-to-board connector systems.
The country of origin for this PCB header is India.
