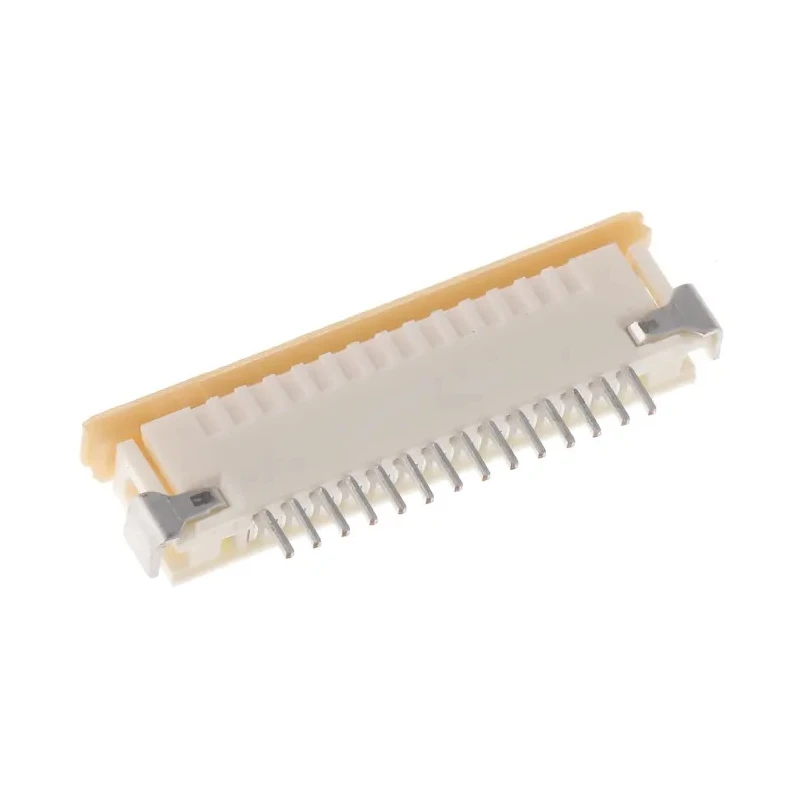

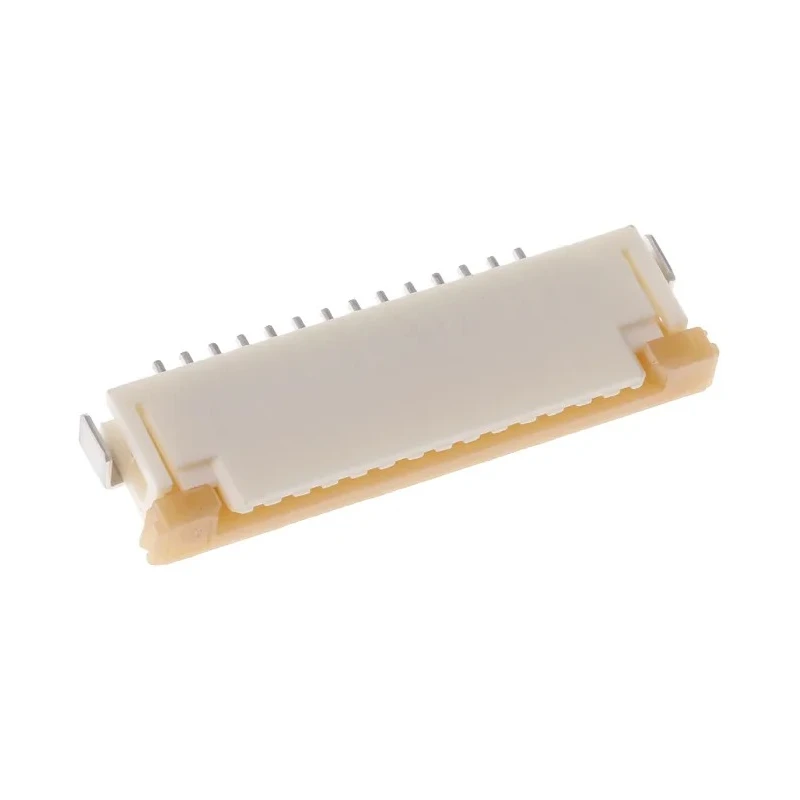

Molex 1 mm Pitch 14 Way Right Angle Female FPC Connector, Solder 52207-1460
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52207 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Top |
Key Features
- Features phosphor bronze contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
- Supports a current rating of 1A and voltage of 125V ensuring efficient power transfer.
- Includes a slide type actuator for easy insertion and secure connection of the FPC.
- Constructed with nylon housing for durability and mechanical strength.
- Operates reliably within a temperature range of -20°C to 85°C.
- Right angle orientation with top contact position optimizes space-saving on PCB layouts.
- Incorporates locking mechanism to maintain secure connector engagement.
- Designed for surface mount installation with solder termination for firm PCB retention.
Product Description
Molex 52207-1460 is a 14 Way Right Angle Female FPC Connector with a 1 mm pitch designed for solder termination and surface mount applications. This easy-on FFC/FPC connector features phosphor bronze contacts plated with gold over nickel, combining excellent electrical performance with high reliability. The connector includes a slide type actuator that facilitates secure and easy insertion of flexible printed circuits.
The right angle design with top contact positioning helps in space optimization on densely packed PCBs. Its nylon housing ensures durability and strong mechanical resistance. The connector operates reliably within a temperature range of -20°C to 85°C, supporting applications requiring moderate environmental resilience.
Rated for 1A current and 125V voltage, this connector incorporates a locking mechanism to ensure stable connector engagement and electrical contact. The solder tabs on the base provide secure retention on PCBs and strain relief for the solder tails, enhancing mechanical robustness.
This 52207 series FPC connector is suitable across various industrial applications including automotive navigation and audio systems, digital cameras, home security devices, tablet and notebook PCs, medical patient monitors, GPS, smartphones, and portable tablets.
Phosphor bronze contact material plated with gold over nickel ensures excellent conductivity and corrosion resistance. Slide type actuator provides ZIF (Zero Insertion Force) operation for repeated cycles with minimum wear.
Right angle orientation with locking mechanism secures connector engagement and alignment. Nylon housing offers durability suitable for harsh industrial environments. Surface mount solder termination with tabs provides strain relief and secure PCB retention.
Rated for 1A current at 125V voltage; suitable for low power electronic circuits. Operating temperature range from -20°C to 85°C offers flexibility in various environments. Ideal for automotive, consumer electronics, datacommunication, medical, and mobile device applications.
Explore more high-quality FPC Connectors from Molex at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A and a voltage rating of 125V, ensuring efficient power transfer in low power electronic circuits.
It operates reliably within a temperature range of -20°C to 85°C, making it suitable for various environments.
The connector features a nylon housing for durability, with phosphor bronze contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
It is designed for surface mount installation with solder termination, providing secure retention on PCBs and strain relief for the solder tails.
The pitch of this connector is 1 mm, which is standard for many flexible printed circuit applications.
Yes, it incorporates a locking mechanism to maintain secure connector engagement and ensure stable electrical contact.
It includes a slide type actuator that facilitates easy insertion and secure connection of flexible printed circuits, enabling ZIF operation.
This connector has a right angle orientation with top contact position, optimizing space-saving on PCB layouts.
The Molex 52207-1460 features 14 contacts, making it suitable for various electronic applications.
It is suitable for various industrial applications including automotive navigation, audio systems, digital cameras, medical patient monitors, and smartphones.
This connector belongs to the 52207 series, which is designed for easy-on FFC/FPC applications.
The country of origin for this connector is India, reflecting its manufacturing location.
