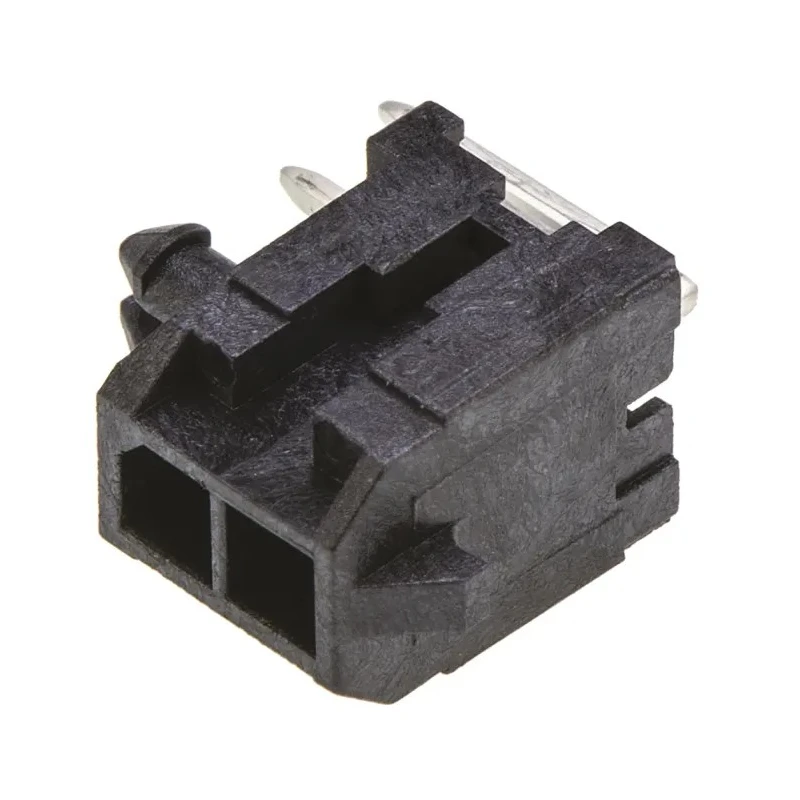

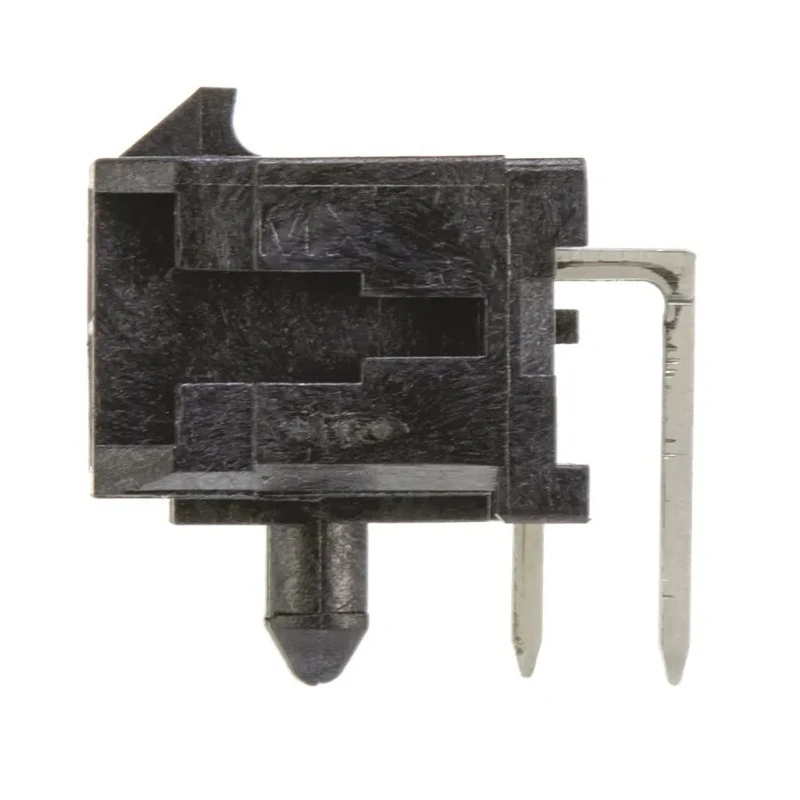

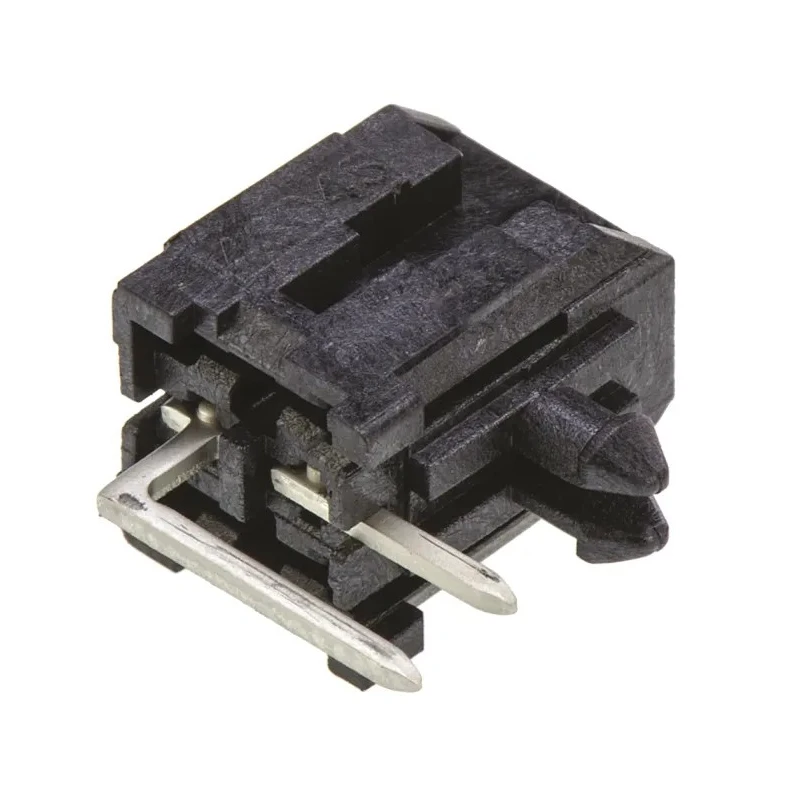

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 2 Contacts, 3 mm Pitch, 2 Row, Shrouded 43045-0201
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Designed for wire-to-board connections with a shrouded male contact configuration.
- Supports up to 5A current capacity in a compact footprint.
- Constructed with high temperature thermoplastic housing suitable for IR reflow soldering.
- Features positive latching with locking ramp for secure mating and reduced accidental disconnection.
- Through hole mount type with snap-in plastic peg PCB locks for stable PCB attachment.
- Gold-plated brass contacts ensure reliable electrical performance and corrosion resistance.
- Operating temperature range from -40°C to 125°C suitable for diverse industrial environments.
- Dual row with 2 contacts and 3 mm pitch to optimize space and connectivity.
Product Description
Molex 43045-0201 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header is a high-quality dual row, 2 contact, 3 mm pitch connector designed for reliable wire-to-board applications. This shrouded PCB header features male contacts made of brass with gold plating, ensuring optimal electrical conductivity and longevity.
The housing is made from high temperature thermoplastic UL 94V-0 Liquid Crystal Polymer, capable of withstanding up to 265°C during the IR reflow soldering process, making it ideal for modern manufacturing environments. Its right-angle orientation and through hole mounting with snap-in plastic peg PCB locks provide secure mechanical fixation on printed circuit boards.
Rated for 5A current and 250V voltage, this connector series supports robust power distribution within a compact footprint. The positive latching mechanism via a locking ramp prevents accidental disconnection, enhancing reliability in demanding conditions such as military Commercial Off The Shelf (COTS), solar power, consumer appliances, data communication equipment, medical devices, telecommunications, and gaming terminals.
The dual beam terminals are fully isolated within the housing to reduce arcing and increase safety. The Micro-Fit 3.0 series combines high performance with versatility in low to mid power applications.
Compact dual row 2 contact PCB header with 3 mm pitch. Shrouded housing ensures safe mating connections. Gold plated brass contacts provide durable conductivity. High temperature UL 94V-0 thermoplastic housing for IR reflow soldering.
Right angle orientation with through hole snap-in peg mount for PCB stability. Positive latching with locking ramp prevents accidental disconnects. Operating temperature range from -40°C to 125°C. Voltage rating of 250V and current rating of 5A.
Suitable for diverse industrial sectors including military, solar, consumer, data communication, medical, and telecom applications.
This product is a dependable choice within the Electronics & Electricals sector for power and signal connections on PCB assemblies. It balances high current capacity, thermal tolerance, and mechanical security in a compact connector profile.
Explore more PCB Headers and connectors at EnvMart for comprehensive industrial and commercial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A, making it suitable for robust power distribution applications.
It is rated for a voltage of 250V, allowing it to be used in various electrical applications.
The operating temperature range is from -40°C to 125°C, suitable for diverse industrial environments.
The housing is made from high temperature thermoplastic, while the contacts are brass with gold plating for optimal conductivity.
It features a through hole mount type with snap-in plastic peg PCB locks for stable attachment.
This model has a 3 mm pitch and consists of 2 contacts arranged in a dual row configuration.
It supports wire-to-board connections, making it suitable for various electronic applications.
Yes, it includes a positive latching mechanism with a locking ramp to enhance mating security and prevent accidental disconnections.
The header is designed with a right angle orientation, facilitating space-efficient installations on PCBs.
The termination type is solder, which is common for PCB connections.
The country of origin for this PCB header is Mexico.
