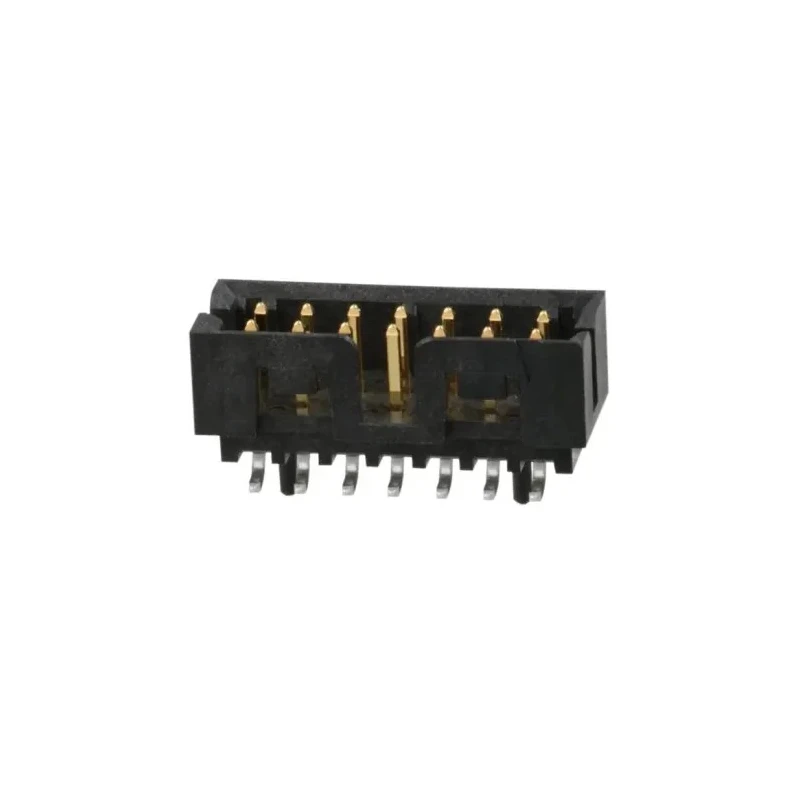

Molex Milli-Grid Series Vertical Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded, Gold Plated, 878325623

Free Delivery in India | Lowest Global Shipping Charges

Molex Milli-Grid Series Vertical Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded, Gold Plated, 878325623

Name: Molex Milli-Grid Series Vertical Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded, Gold Plated, 878325623
Brand: Molex
SKU: 89471



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Malaysia
Voltage	125V
Brand	Molex
Orientation	Vertical
Current	2A
Mount Type	Surface
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	Milli-Grid
Termination Type	Surface Mount
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Standards/Approvals	CSA LR19980, UL E29179
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Milli Grid Connector System

Key Features

Milli-Grid Series vertical PCB header designed for secure mating on surface mount boards.
Features 14 male contacts with a 2 mm pitch and 2 row shrouded housing for precise alignment.
Gold-plated phosphor bronze contacts provide excellent electrical conductivity and corrosion resistance.
Nylon housing ensures durable insulation and robust mechanical support.
Rated for up to 2A current and 125V voltage, making it suitable for demanding electronic applications.
Operating temperature range from -55°C to 105°C allows for use in harsh environments.
Certified by CSA LR19980 and UL E29179 for compliance and safety.

Product Description

Molex 878325623 Milli-Grid Series Vertical Surface PCB Header is engineered for high-performance electronic applications requiring robust, reliable board-to-board connections. As part of the renowned Milli-Grid Series, this vertical header stands out with its precise 2 mm pitch and shrouded, surface-mount configuration, making it ideal for densely populated circuits and automated assembly lines.

The component features 14 phosphor bronze contacts, gold plated to ensure optimal electrical conductivity and long-term corrosion resistance. Arranged in two distinct rows within a nylon housing, these contacts promote accurate alignment and mechanical stability during mating with other components in the Milli Grid Connector System.

Milli-Grid Series vertical surface-mount PCB header, model 878325623. Offers 14 male contacts in a 2-row configuration with 2 mm pitch for fine spacing and compact layout. Shrouded housing protects contacts, ensures correct alignment, and prevents accidental mismating.

Gold-plated phosphor bronze contacts guarantee low contact resistance and high durability. Rated for 2A current at up to 125V, meeting key demands in industrial, instrumentation, PCB assembly, and commercial electronics.

Nylon insulation maintains mechanical strength and electrical isolation across temperature extremes. CSA LR19980 and UL E29179 certifications ensure compliance with international safety standards. Surface mount termination type supports automated placement and secure soldering.

This header operates reliably in environments from -55°C to 105°C, making it suitable for wide-ranging use in industrial, laboratory, and commercial electronics, including motor controls, test equipment, communications, and embedded systems.

With its vertical orientation, shrouded design, and durable materials, the Molex Milli-Grid header streamlines device integration and is a preferred choice for OEMs and engineers seeking compact, robust connectors for advanced circuit designs. Country of Origin: Malaysia.
