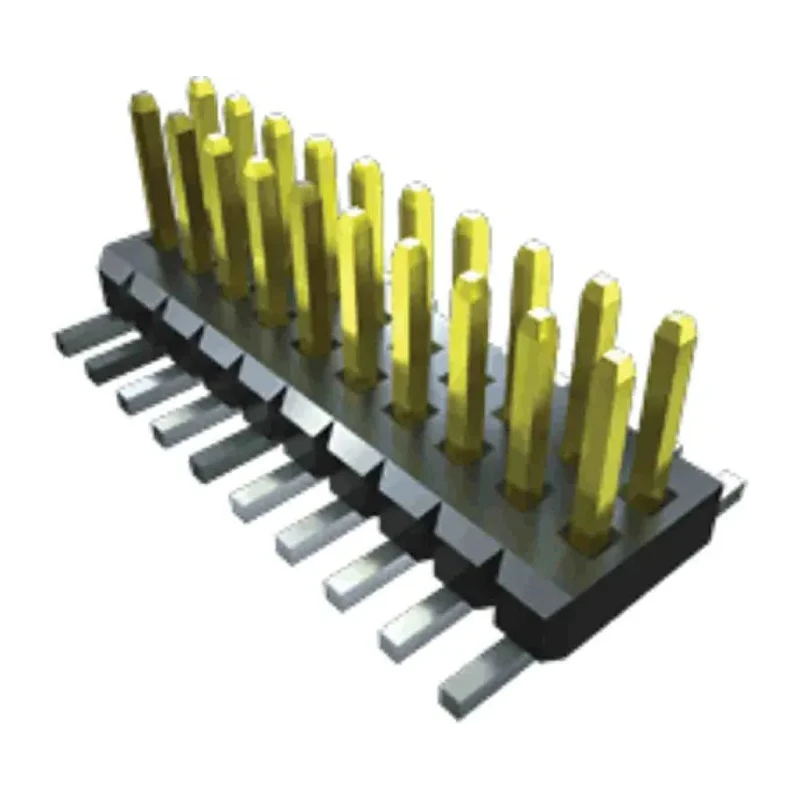

Samtec FTM Series Vertical Surface Pin Header 20 Contacts 1 mm Pitch 2 Row Unshrouded FTM-110-02-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Vertical |
| Current | 3.1A |
| Model | FTM-110-02-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Current Rating | 2.8A per pin |
| Series | FTM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Terminal Material | phosphor bronze |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Operating temp range | -55°C to +125°C |
Key Features
- Features a compact 1 mm pitch between pins for precise PCB layouts.
- Constructed with phosphor bronze contacts plated in gold for excellent conductivity.
- Housing made from liquid crystal polymer for high durability and thermal stability.
- Rated for a current of 3.1A, supporting robust electrical performance.
- Designed for surface mount applications with vertical orientation.
- Unshrouded style allows flexible positioning and easy solder termination.
- Operates reliably across a temperature range from -55°C to +125°C.
- Suitable for industrial and electronic applications demanding strong board-to-board connectors.
Product Description
Samtec FTM-110-02-L-DV is a high-quality vertical surface pin header featuring 20 male contacts arranged in 2 rows with 1 mm pitch. This unshrouded connector provides secure board-to-board connection with exceptional electrical and mechanical reliability.
Constructed using phosphor bronze material with gold plating on the contacts, the header ensures excellent conductivity and corrosion resistance. Its housing comprises liquid crystal polymer that offers exceptional mechanical strength and thermal stability, suitable for demanding industrial environments.
Rated for a continuous current of 3.1 amperes, it meets the requirements of many electronic systems, with a pin current rating of 2.8A per contact. The operating temperature range from -55°C to +125°C makes it ideal for applications exposed to extreme temperatures.
The vertical, surface mount design facilitates compact PCB layouts and efficient assembly processes. The unshrouded configuration supports versatile positioning and makes soldering connections straightforward.
Compact 1 mm pitch and 2-row configuration for dense PCB interconnections. Gold-plated phosphor bronze contacts ensure durability and low electrical resistance. Liquid crystal polymer housing for robust mechanical and thermal performance.
Supports 3.1A current, suitable for various electronic and industrial uses. Wide operating temperature range from -55°C to +125°C for harsh environments. Unshrouded male contacts for flexible mounting and easy soldering.
Designed for vertical orientation and surface mount applications. Reliable board-to-board connector system enhancing device communication integrity.
This Samtec FTM series pin header is widely applicable in electronics manufacturing, industrial automation, and power connector assemblies. It provides a dependable interconnect solution conforming to industrial standards, ensuring long-term operation and safety. Explore related PCB Headers and connectors in our Electronics Components category at EnvMart for comprehensive offerings.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 3.1A, with a pin current rating of 2.8A per contact.
It features a compact 1 mm pitch and has 20 male contacts arranged in 2 rows.
The contacts are made of phosphor bronze and are gold plated, while the housing is constructed from liquid crystal polymer.
It operates reliably across a temperature range from -55°C to +125°C.
This unit is designed for surface mount applications with a vertical orientation.
This connector is unshrouded, allowing for flexible positioning and easy solder termination.
The termination type for this model is solder.
It is suitable for various electronic and industrial applications that require robust board-to-board connections.
The brand of this pin header is Samtec.
The housing is made from liquid crystal polymer, which provides high durability and thermal stability.
This model has 2 rows of contacts.
It belongs to a board-to-board connector system, enhancing device communication integrity.
