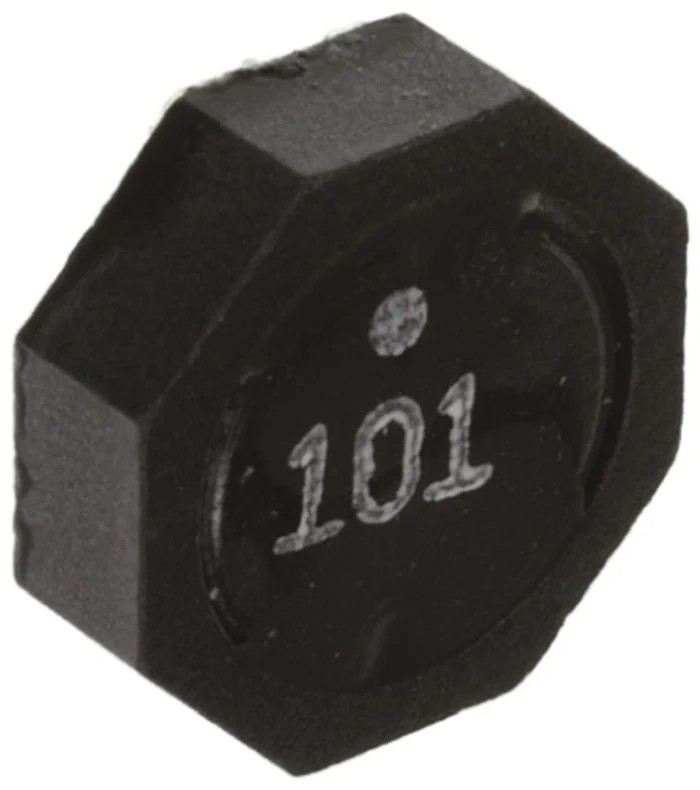

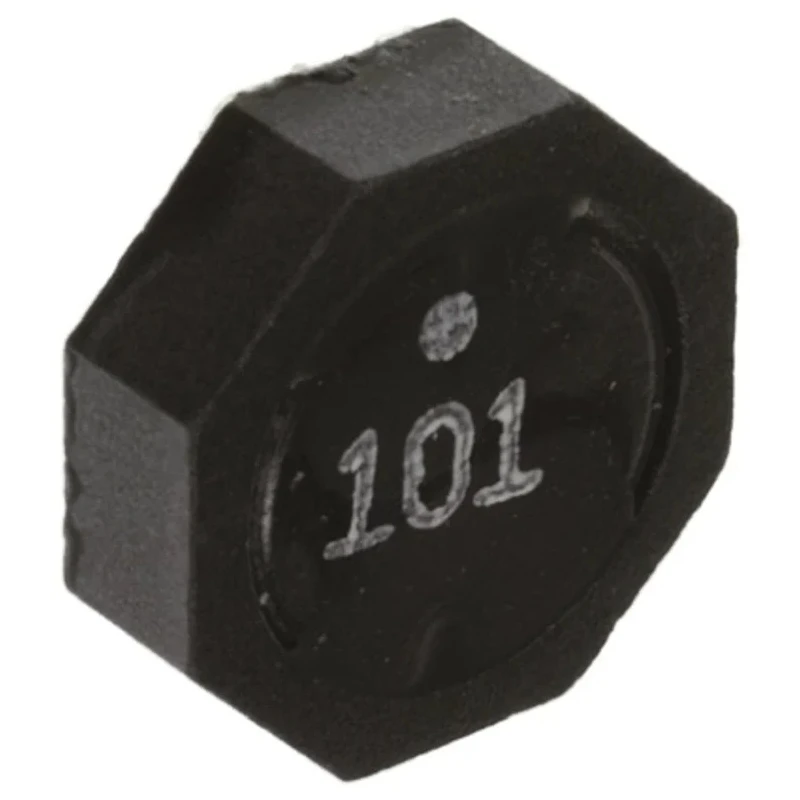

Wurth Elektronik WE-TPC 1038 Shielded Wirewound Surface Mount Inductor with Ferrite Core 5 μH ±30 % 4.9 A IDC 744066005
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 3.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 5μH |
| Package/Case | 1038 |
| Maximum DC Current | 4.9A |
| Maximum DC Resistance | 22mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 30MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsIEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
| IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
Key Features
- Features a compact 1038 package size with length 10 mm and height 3.8 mm.
- Magnetically shielded design ensures low leakage fields and enhanced efficiency.
- Operating temperature range from -40°C to 125°C suitable for automotive AEC-Q200 standards.
- Maximum DC resistance is 22 mΩ supporting stable performance in high current applications.
- Constructed with a ferrite core and wirewound inductor construction for reliability.
- Complies with IEC, IPC/JEDEC, REACH, and RoHS standards for quality and environmental safety.
- Suitable for portable power devices, DC/DC converters, embedded PCs, mobile data gathering, and telemetric applications.
Product Description
Wurth Elektronik 744066005 WE-TPC 1038 shielded wirewound surface mount inductor features a ferrite core and offers 5 μH inductance with ±30% tolerance and maximum DC current rating of 4.9 A.
This magnetically shielded power inductor in a 10 mm square package is designed for applications demanding compact size and high current capacity. Its wirewound construction combined with a ferrite core ensures excellent performance with low leakage field.
Operating over a wide temperature range of -40°C to 125°C and compliant with automotive standard AEC-Q200, it is suitable for use in portable power devices such as PDAs, digital cameras, PCMCIA cards, displays, embedded PCs, and DC/DC converters.
The inductor provides a maximum DC resistance of 22 mΩ and a self-resonant frequency of 30 MHz, supporting stable operation in demanding industrial and electronics applications.
Manufactured according to IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B standards, this component is RoHS and REACH compliant, ensuring environmental safety and high-quality performance.
Compact 1038 package with dimensions 10 mm length, 3.8 mm height, 10 mm depth. Shielded wirewound construction for low EMI and high reliability. Wide operating temperature range suitable for automotive and industrial use.
Magnetically shielded to minimize electromagnetic interference. High current handling capability of 4.9 A IDC. Tape & reel packaging for efficient production line assembly. Applications include portable electronics, telemetric devices, DC/DC converters, and embedded systems.
This Wurth Elektronik inductor is an ideal choice for engineers designing compact, efficient, and reliable electronic circuits in industrial, automotive, communication, and consumer devices. Explore more high-quality inductors and components in the Surface Mount Inductors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 5 μH with a tolerance of ±30%.
The maximum DC current rating for this unit is 4.9 A IDC.
It has a compact package size with dimensions of 10 mm in length, 10 mm in depth, and 3.8 mm in height.
The operating temperature range is from -40°C to +125°C, making it suitable for various applications.
This inductor is constructed with a ferrite core, which contributes to its performance characteristics.
It complies with automotive standard AEC-Q200 and other standards including IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, and RoHS and REACH regulations.
The maximum DC resistance is 22 mΩ, which supports stable performance in high current applications.
The maximum self-resonant frequency of this inductor is 30 MHz.
It is packaged in tape and reel format, which facilitates efficient assembly on production lines.
This unit is suitable for use in portable power devices, DC/DC converters, embedded PCs, and telemetric applications.
It features a surface mount termination style, making it suitable for various PCB applications.
This inductor belongs to the WE-TPC series, known for its compact and efficient design.
