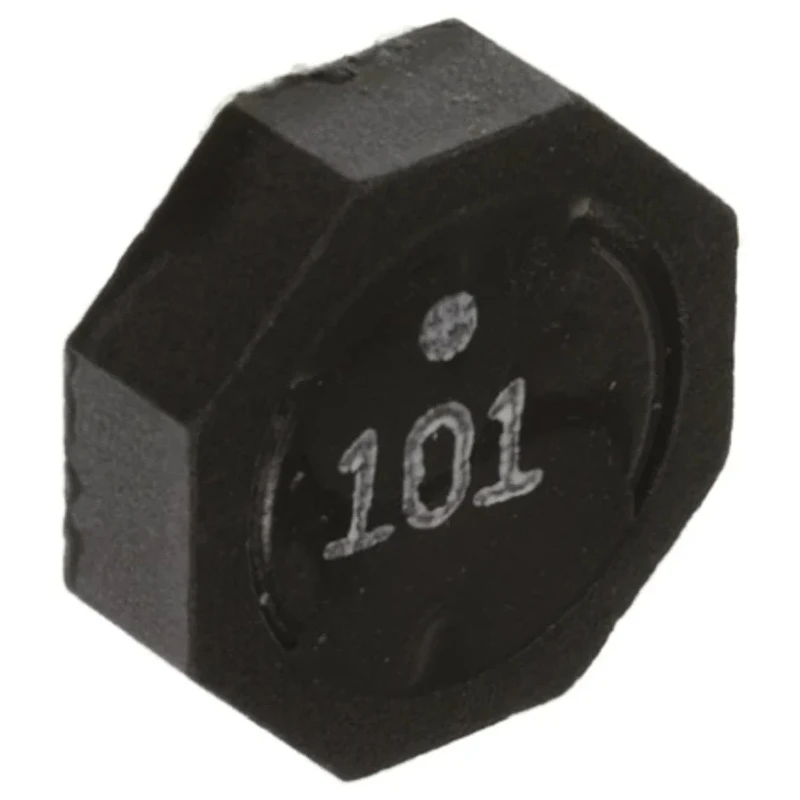

Wurth Elektronik WE-TPC 1038 Shielded Wirewound Surface Mount Inductor Ferrite Core 10μH ±30% 3.6A Idc 744066100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 3.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 1038 |
| Maximum DC Current | 3.6A |
| Maximum DC Resistance | 35mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsIEC 61249-2-21, IEC 60286-3 | 2013, RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E |
Key Features
- Compact 10mm length and 3.8mm height suitable for PCB surface mount applications.
- Magnetically shielded construction reduces electromagnetic interference.
- Ferrite core ensures stable inductance across operating temperatures.
- Operates reliably between −40°C to 125°C for automotive and industrial use.
- Maximum DC resistance is 35mΩ, supporting efficient current flow.
- Comes in tape & reel packaging optimized for automated assembly processes.
- Complies with automotive standard AEC-Q200 ensuring durability under harsh conditions.
- Maximum self-resonant frequency up to 20MHz enhances performance in high-frequency circuits.
Product Description
Wurth Elektronik model 744066100 is a shielded wirewound surface mount inductor designed with a ferrite core, providing an inductance of 10μH with ±30% tolerance and a maximum DC current rating of 3.6A. This component has a compact footprint with dimensions of 10mm length, 3.8mm height, and 10mm depth, making it suitable for densely packed electronic assemblies.
Its magnetically shielded wirewound construction minimizes electromagnetic interference, making it ideal for precision electronic applications including portable power devices, DC/DC converters, and embedded PC modules. The inductor is qualified to operate within a temperature range from −40°C to 125°C, meeting automotive-grade AEC-Q200 requirements which ensures reliable performance in automotive and industrial environments.
The maximum DC resistance of 35mΩ supports efficient current flow, and the maximum self-resonant frequency of 20MHz allows use in moderately high-frequency circuits. Packaging on tape & reel facilitates automated manufacturing processes enhancing production efficiency.
This product complies with multiple standards including IEC 61249-2-21, IEC 60286-3:2013, RoHS, REACH, JEDEC JS709B, and IPC/JEDEC J-STD-020E, ensuring environmental and performance compliance. It is well suited for applications in electronic components, power and connectors, and passive component categories especially where surface mount inductors with robust shielding and current handling are required.
Compact size with 10mm length and 3.8mm height dimensions. Shielded design reduces electromagnetic interference in sensitive circuits. Ferrite core provides stable inductance and good thermal performance. Wide operating temperature range from −40°C to 125°C suitable for automotive and industrial use.
3.6A maximum DC current capacity supports high power loads. Packaged in tape & reel for effective automated assembly. Compliance with AEC-Q200 standard ensures automotive readiness. Maximum self-resonant frequency of 20MHz optimizes high-frequency applications.
Meets RoHS and REACH environmental standards. Explore more electronic components and Surface Mount Inductors on EnvMart for your precise industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10μH with a tolerance of ±30%.
The maximum DC current rating for this unit is 3.6A.
It has a compact size with dimensions of 10mm in length, 3.8mm in height, and 10mm in depth.
This inductor operates reliably within a temperature range of −40°C to 125°C.
It comes packaged in tape & reel, which is optimized for automated assembly processes.
The core material of this inductor is ferrite, which helps ensure stable inductance across operating temperatures.
The maximum DC resistance is 35mΩ, supporting efficient current flow.
The maximum self-resonant frequency of this model is up to 20MHz, suitable for high-frequency applications.
Yes, it complies with the automotive standard AEC-Q200, ensuring durability in automotive applications.
It complies with multiple standards including IEC 61249-2-21, IEC 60286-3:2013, RoHS, REACH, and IPC/JEDEC J-STD-020E.
This inductor features a wirewound construction, which contributes to its performance in electronic applications.
It is suitable for applications in portable power devices, DC/DC converters, and embedded PC modules.
