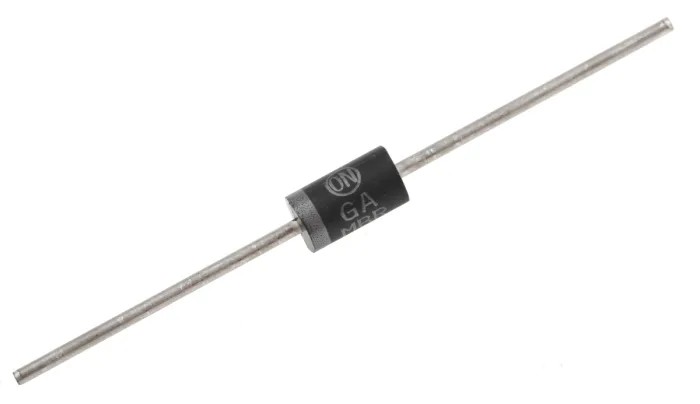

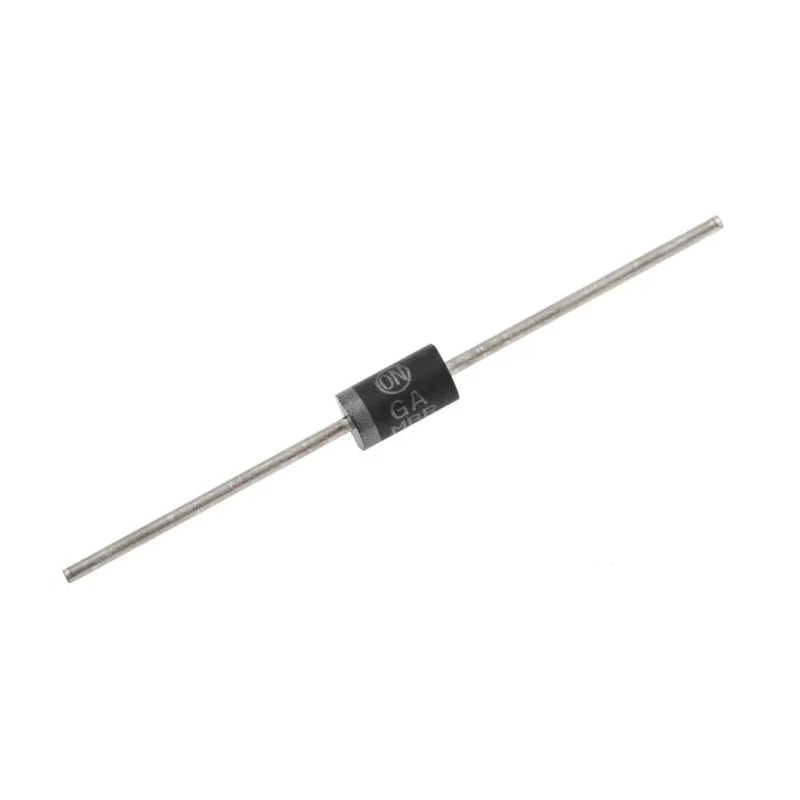

onsemi 60 V 3 A Schottky Diode 2-Pin DO-201AD MBR360RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | MBR360RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 1.1 gram (approximately) |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | MBR360 |
| Maximum Operating Temperature | 150°C |
| Case | Epoxy, Molded |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode indicated by Polarity Band |
| Marking | B350, B360 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 600μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 1.08V |
| Lead Temperature for Soldering Purposes | 260°C Max. for 10 Seconds |
| onsemi Diode, MBR360Brand | ON Semiconductor |
| Vishay 60V 3.3A, Schottky Diode, 2-Pin C 16 VS-31DQ06Brand | Vishay |
Key Features
- Through hole mount type for easy circuit integration.
- Maximum continuous forward current of 3 amps ensures robust performance.
- Peak reverse repetitive voltage rating at 60 volts.
- Low forward voltage of 1.08 V for power-efficient operation.
- Epoxy molded case provides corrosion resistance and durability.
- Operating temperature range from -65°C to 150°C supports extreme conditions.
- Compact dimensions of 9.5 mm length and 5.3 mm diameter.
- Terminal leads are solderable with a max temperature of 260°C for 10 seconds.
Product Description
onsemi MBR360RLG Schottky Diode 2-Pin DO-201AD is designed for industrial and electronic applications requiring efficient rectification with low power loss. It uses the Schottky barrier principle with large area metal-to-silicon construction enhancing performance in power conversion circuits.
This diode features an epoxy molded package providing corrosion resistance and excellent mechanical protection. It supports a continuous forward current of 3 A and a peak repetitive reverse voltage of 60 V, suitable for low voltage, high-frequency systems.
The device operates reliably from -65°C up to 150°C, accommodating harsh industrial environments. Its forward voltage drop is 1.08 V, minimizing conduction losses for energy efficiency. The 2-pin DO-201AD package with a length of 9.5 mm and diameter of 5.3 mm allows compact circuit design.
Key mechanical characteristics include corrosion resistant external surfaces and terminal leads that can withstand soldering temperatures up to 260°C for 10 seconds. The polarity is marked to avoid installation errors, enhancing assembly reliability.
Through hole mount for easy installation. Maximum forward current rating of 3 amps. Peak reverse voltage of 60 volts. Low forward voltage for efficient operation. Epoxy molded corrosion resistant casing. Wide operating temperature range.
Compact dimensions suitable for dense PCB layouts. High surge current capacity of 80 A transient. Solderable terminal leads with high thermal tolerance. Marked polarity for correct circuit assembly.
This Schottky diode is ideal for industrial power supplies, inverter circuits, free wheeling diode applications, and polarity protection circuits in automotive and industrial electronics.
Explore more semiconductor components and Schottky diodes in the Electronics & Electricals category on EnvMart for your industrial and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
The peak reverse repetitive voltage rating is 60 V.
The forward voltage drop for this diode is 1.08 V, which helps in minimizing conduction losses.
It operates reliably within a temperature range from -65°C to 150°C.
This model has a length of 9.5 mm and a diameter of 5.3 mm.
It uses a through hole mount type for easy installation in circuits.
The maximum non-repetitive forward surge current capacity is 80 A.
The package type for this diode is DO-201AD.
The diode features an epoxy molded case that provides corrosion resistance and durability.
The polarity is marked on the diode to indicate the cathode, which helps avoid installation errors.
The maximum lead temperature for soldering is 260°C for a duration of 10 seconds.
This Schottky diode is suitable for industrial power supplies, inverter circuits, and polarity protection circuits in automotive and industrial electronics.
