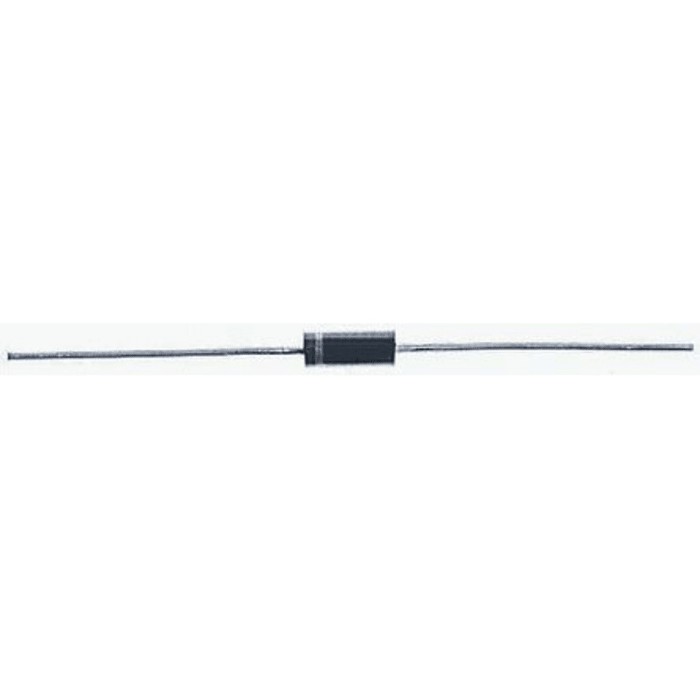

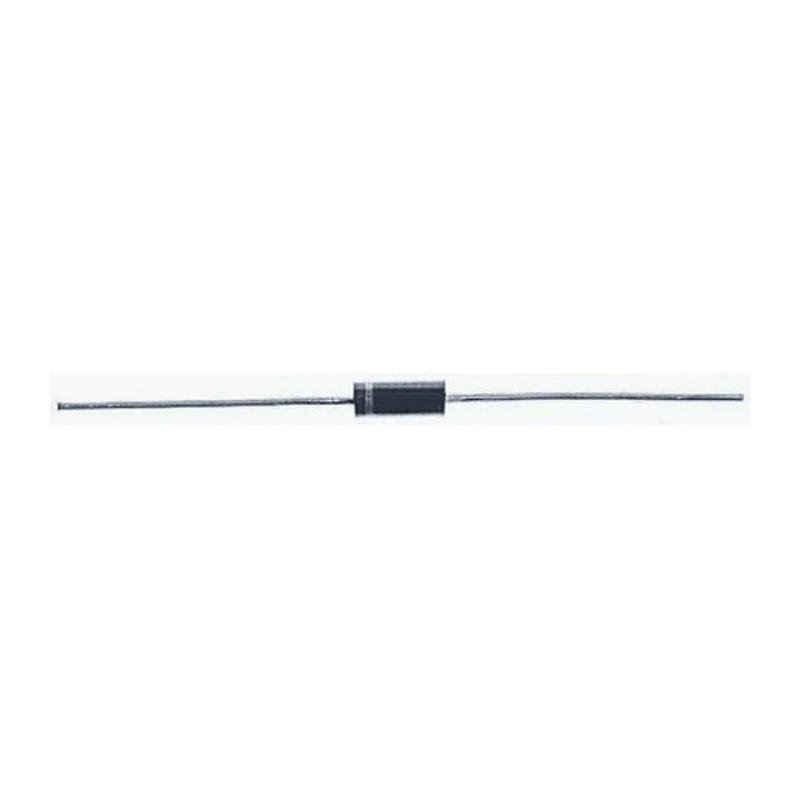

onsemi Schottky Diode 50 V 1 A 2-Pin DO-41 MBR150RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | MBR150RLG |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | MBR150 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 1V |
| onsemi 50V 1A, Schottky Diode, 2-Pin DO-41 MBR150Brand | ON Semiconductor |
Key Features
- Designed with a compact 2-pin DO-41 package suitable for automated board assembly.
- Maximum continuous forward current rating of 1 ampere.
- Peak reverse repetitive voltage of 50 volts ensures reliable blocking capability.
- Maximum forward voltage drop of 1 volt for efficient energy conversion.
- Operates within a wide temperature range of -65°C to 150°C for robust performance.
- Peak non-repetitive forward surge current is rated at 25 amperes.
- Lightweight epoxy molded case weighing approximately 11.7 mg enhances thermal protection.
- Suitable for freewheeling, polarity protection, and surface mount applications.
Product Description
onsemi MBR150RLG Schottky Diode 50 V 1 A DO-41 is a high-performance diode designed for efficient low voltage and high frequency rectification tasks. Its through-hole mount and compact DO-41 package make it ideal for situations demanding automated board assembly while maintaining a robust mechanical footprint.
The diode features a maximum continuous forward current of 1 ampere and can withstand a peak reverse repetitive voltage of 50 volts, allowing it to be used for various power rectification and protection purposes in electronic circuits.
With a maximum forward voltage of 1 volt, the MBR150RLG minimizes power loss during operation, enhancing energy efficiency. Its operating temperature range from -65°C to 150°C enables use in diverse industrial, automotive, and electronic environments requiring high reliability.
This product is housed in an epoxy molded case that provides stress protection and lightweight construction with a package weight of approximately 11.7 mg. Its dimensions of 5.2 mm length and 2.7 mm diameter contribute to a compact and space-saving design.
The MBR150RLG is Pb-free and designed for use in applications such as freewheeling diodes, polarity protection, and general rectification in industries including manufacturing, automotive, electronics, and instrumentation. It is suitable for through-hole printed circuit boards in discrete semiconductor assemblies.
Compact 2-pin DO-41 package suitable for automated assembly. Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage of 50 volts for blocking applications. Maximum forward voltage drop of 1 volt for efficient operation.
Wide operating temperature range from -65°C to 150°C. Peak non-repetitive forward surge current of 25 amperes. Small dimensions of 5.2 mm length and 2.7 mm diameter. Epoxy molded case providing stress protection and lightweight packaging.
Applications include automotive, industrial, and general electronic circuit rectification. Lead-free for environmentally conscious manufacturing.
Explore the extensive range of schottky diodes and rectifiers at EnvMart to find reliable semiconductor components engineered for performance and durability in diverse industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 1 ampere.
This diode can withstand a peak reverse repetitive voltage of 50 volts.
The maximum forward voltage drop is 1 volt, which aids in efficient energy conversion.
It operates within a wide temperature range of -65°C to 150°C.
The diode has a length of 5.2 mm and a diameter of 2.7 mm.
This model is housed in a compact 2-pin DO-41 package.
The peak non-repetitive forward surge current is rated at 25 amperes.
It features a through-hole mount type, suitable for automated board assembly.
This diode is suitable for applications such as freewheeling, polarity protection, and general rectification in electronic circuits.
The epoxy molded case weighs approximately 11.7 mg, providing thermal protection.
Yes, this diode is Pb-free, making it suitable for environmentally conscious manufacturing.
The diode configuration is single, designed for efficient rectification tasks.
