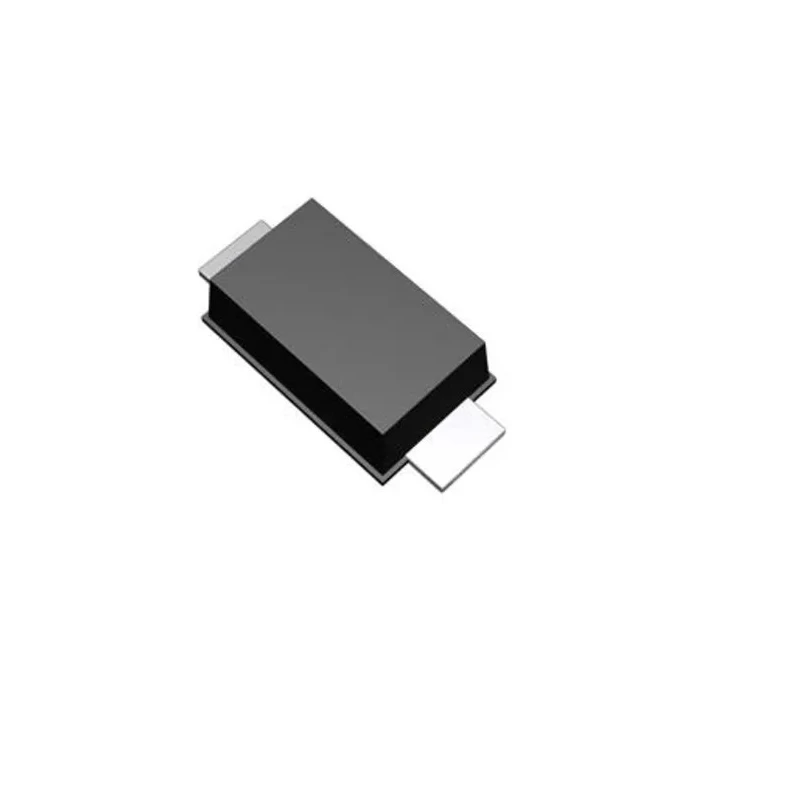

ROHM Surface Mount 150 V 3 A Rectifier & Schottky Diode DO-214AC Package RB058L150DDTE25
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 4.7mm |
| Length | 2.8mm |
| Model | RB058L150DDTE25 |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | RB058L150DD |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 90A |
| Maximum Forward Voltage Vf | 0.85V |
Key Features
- Package type is DO-214AC suitable for surface mounting.
- Maximum continuous forward current is 3 A, supporting high current applications.
- Peak reverse repetitive voltage rating is 150 V for robust voltage handling.
- Diode configuration is single with Schottky rectifier type for low forward voltage drop.
- Peak non-repetitive forward surge current rating is 90 A, ensuring surge resilience.
- Operating temperature range from -55°C to 175°C for automotive-grade performance.
- Meets AEC-Q101 automotive standard ensuring high reliability and quality.
- Low peak reverse current of 3 µA improves efficiency in power applications.
Product Description
ROHM RB058L150DDTE25 is a surface mount Rectifier & Schottky Diode designed for applications requiring efficient and reliable power rectification. This diode provides a maximum continuous forward current of 3 amps and a peak reverse voltage of 150 volts, ensuring robust performance under demanding electrical conditions.
The DO-214AC package offers a compact footprint suitable for high-density surface mount PCB designs. The device features a single diode configuration and a Schottky rectifier type, which is known for fast switching and low forward voltage drop of 0.85V, enhancing overall circuit efficiency.
Its operating temperature range from -55°C to 175°C makes it suitable for automotive and industrial environments, supported by compliance with the AEC-Q101 automotive standard. The peak non-repetitive forward surge current capacity of 90 A allows it to sustain transient current spikes without failure.
Key physical dimensions are 2.2 mm width, 2.8 mm length, and 4.7 mm height, allowing integration into compact electronic assemblies. This diode is ideal for use in power supply rectification, automotive electronics, and general semiconductor applications where high efficiency and durability are required.
Package type is DO-214AC suitable for surface mounting. Maximum continuous forward current is 3 A, supporting high current applications. Peak reverse repetitive voltage rating is 150 V for robust voltage handling. Diode configuration is single with Schottky rectifier type for low forward voltage drop.
Peak non-repetitive forward surge current rating is 90 A, ensuring surge resilience. Operating temperature range from -55°C to 175°C for automotive-grade performance. Meets AEC-Q101 automotive standard ensuring high reliability and quality.
Compact dimensions: Width 2.2 mm, Length 2.8 mm, Height 4.7 mm optimize PCB space. Low peak reverse current of 3 µA improves efficiency in power applications. Suitable for applications requiring high reliability and low forward voltage Schottky diodes.
Explore more semiconductor and Schottky Diode solutions at EnvMart for industrial, automotive, and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 A, making it suitable for high current applications.
This diode has a peak reverse repetitive voltage rating of 150 V, allowing it to handle robust voltage conditions.
The operating temperature range for this unit is from -55°C to 175°C, which is suitable for automotive-grade performance.
The package type of this diode is DO-214AC, which is designed for surface mounting.
It has a peak non-repetitive forward surge current rating of 90 A, ensuring resilience against transient current spikes.
The dimensions of this model are 2.2 mm in width, 2.8 mm in length, and 4.7 mm in height, optimizing PCB space.
The maximum forward voltage drop for this Schottky diode is 0.85 V, contributing to its efficiency in power applications.
This model meets the AEC-Q101 automotive standard, ensuring high reliability and quality for automotive applications.
The peak reverse current for this unit is 3 µA, which helps improve efficiency in power applications.
This diode features a single diode configuration with a Schottky rectifier type for low forward voltage drop.
This diode is suitable for power supply rectification, automotive electronics, and general semiconductor applications.
This model has a pin count of 2, which is typical for surface mount devices.
