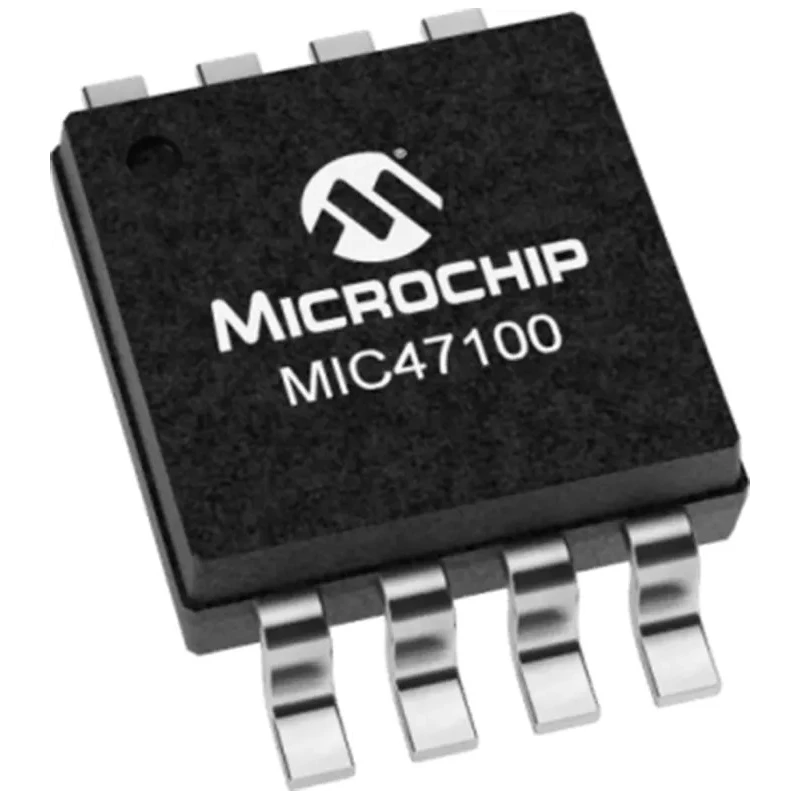

Microchip Voltage Regulator 3.6V MSOP 8-Pin MIC47100YMME
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 860μm |
| Length | 3mm |
| Model | MIC47100YMME |
| Width | 3mm |
| Mount Type | Surface |
| Input Supply | 1.0V to 3.6V |
| Series | MIC47100 |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Polarity | Positive |
| Maximum Input Voltage | 3.6V |
| Minimum Input Voltage | 1V |
| Pin Count | 8 |
| Bias Supply | 2.3V to 5.5V |
| High bandwidth | very fast transient response |
| ePad MSOP-8 | small form factor power package |
Key Features
- Operates with input supply voltage from 1.0V to 3.6V and bias supply from 2.3V to 5.5V.
- Delivers output voltage range between 0.8V and 2.0V with ±1.5% initial accuracy.
- Low dropout voltage of 80mV at 1A load ensures efficient power delivery.
- Stable operation with just a 1μF ceramic output capacitor.
- Small thermally enhanced MSOP-8 package measuring 3mm by 3mm.
- High bandwidth provides very fast transient response.
- Logic level enable input with under-voltage lockout on supplies.
- Maximum operating temperature up to 125°C.
Product Description
Microchip MIC47100YMME Voltage Regulator is a high-performance, low voltage dropout linear regulator designed for demanding point-of-load power supply applications. It operates over a wide input voltage range from 1.0V to 3.6V with a bias supply between 2.3V and 5.5V, delivering output voltages between 0.8V to 2.0V with remarkable accuracy and efficiency.
The regulator supports up to 1A output current with a low dropout voltage of only 80mV at full load, making it ideal for battery-powered and compact electronic devices. Its high bandwidth and very fast transient response help maintain stable output during rapid load changes.
Designed in a thermally enhanced MSOP-8 package measuring 3mm by 3mm with a height of 860μm, the MIC47100YMME is suitable for space-constrained industrial, communication, computing, and consumer electronics applications.
Protected by under-voltage lockout (UVLO) on both input and bias supply voltages with a logic level enable input, this device simplifies power sequencing and improves system reliability. Its low external component count, stable operation with just a 1μF ceramic output capacitor, and positive output polarity further simplify system design.
Operates with input voltage supply from 1.0V to 3.6V and bias supply from 2.3V to 5.5V. Produces output voltage range of 0.8V to 2.0V with ±1.5% initial accuracy and ±2% over temperature. Low dropout voltage of 80mV at 1A load current for efficient power utilization.
Compact MSOP-8 package (3mm x 3mm x 860μm) with thermal pad for heat dissipation. High bandwidth ensures very fast transient response for dynamic loads. Logic level enable and UVLO on supplies for enhanced control and protection.
Stable with minimal external capacitance (1μF ceramic capacitor). Maximum operating temperature of 125°C suitable for harsh environments.
This voltage regulator IC from Microchip is extensively used in designing power management circuits for industrial, communication, computing, and various electronic systems requiring precise and reliable voltage regulation.
Explore more Voltage Regulator products and related power management ICs in EnvMart’s Electronics & Electricals section for components tailored to your electronic engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input supply voltage range from 1.0V to 3.6V.
This model delivers an output voltage range between 0.8V and 2.0V with an initial accuracy of ±1.5%.
The MIC47100YMME supports up to 1A output current.
It has a low dropout voltage of 80mV at a 1A load, ensuring efficient power delivery.
The package measures 3mm by 3mm with a height of 860μm.
The bias supply voltage range is from 2.3V to 5.5V.
It can operate at a maximum temperature of 125°C.
It is stable with just a 1μF ceramic output capacitor, simplifying the design.
Yes, it includes under-voltage lockout (UVLO) on both input and bias supply voltages.
The output voltage polarity is positive.
This voltage regulator is suitable for industrial, communication, computing, and consumer electronics applications requiring precise voltage regulation.
The high bandwidth provides very fast transient response, which helps maintain stable output during rapid load changes.
