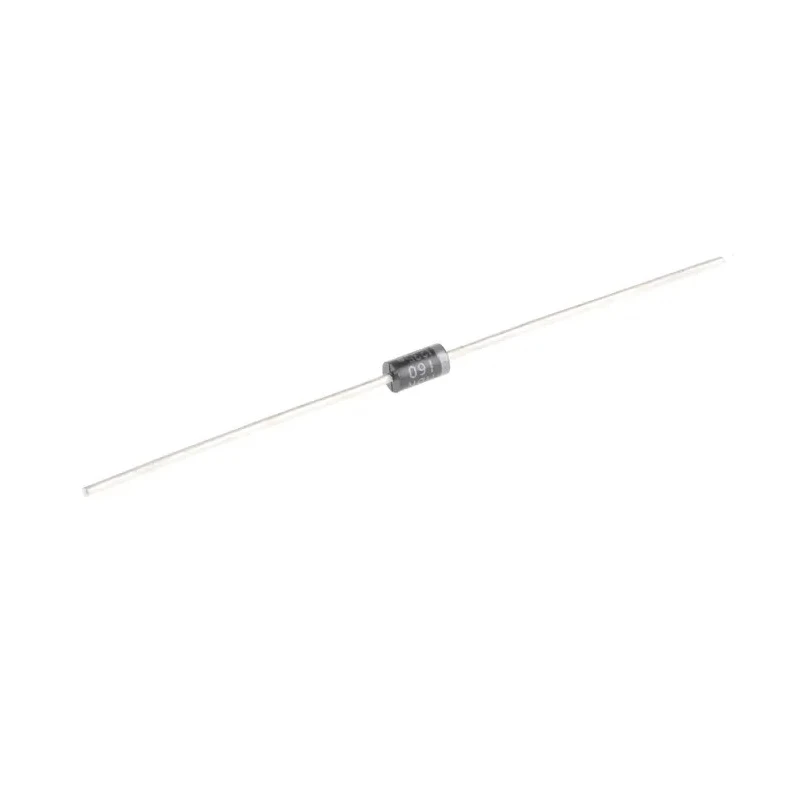

onsemi Schottky Diode 60 V 1 A Through Hole DO-41 Package MBR160RLG

onsemi MBR160RLG Schottky Diode is a single diode configured device designed using the Schottky Barrier principle, suitable for low voltage and high frequency electronic applications requiring efficient power rectification.

This diode utilizes epitaxial construction with oxide passivation and metal overlap contact geometry, ensuring low power loss, majority carrier conduction, and low stored charge.

The through-hole DO-41 package offers a compact footprint with dimensions of approximately 5.2mm length and 2.7mm diameter, with an epoxy molded case providing mechanical protection.

With a maximum continuous forward current of 1 Ampere and peak reverse voltage up to 60 Volts, it is ideal for use in inverters, freewheeling diode circuits, polarity protection, and other power conversion applications within industrial, automotive, and electronic manufacturing sectors.

The diode is built to withstand operating temperatures ranging from -65°C to 150°C, ensuring reliability in demanding environments, and it complies with automotive standard AEC-Q101 for automotive-specific use cases.

Its low forward voltage drop of 1 Volt helps minimize power losses, contributing to higher overall system efficiency. The diode supports a peak non-repetitive forward surge current of 25 Amperes, enhancing robustness against transient overloads.

All external surfaces are corrosion resistant and terminal leads are solderable at temperatures up to 260 °C for 10 seconds, facilitating secure mounting and long-term durability. Polarity is clearly marked with a cathode band for proper circuit orientation during assembly.

The marking includes designations B150 and B160 for easy product identification.

These leaded devices are supplied in plastic bags, typically in batches of 1000 units, ready for automated machine insertion and processing, which improves production throughput and component handling efficiency.

onsemi Schottky Diode MBR160RLG is suitable for use in industrial electronics, automotive electronics, power supply units, and various high-frequency rectification roles within manufacturing, HVAC, and laboratory equipment.
