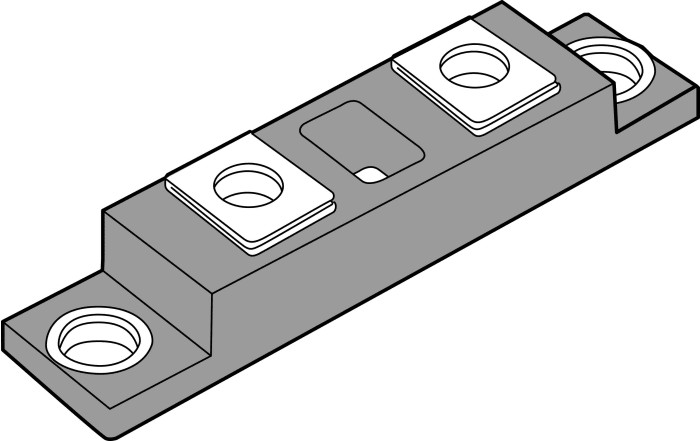

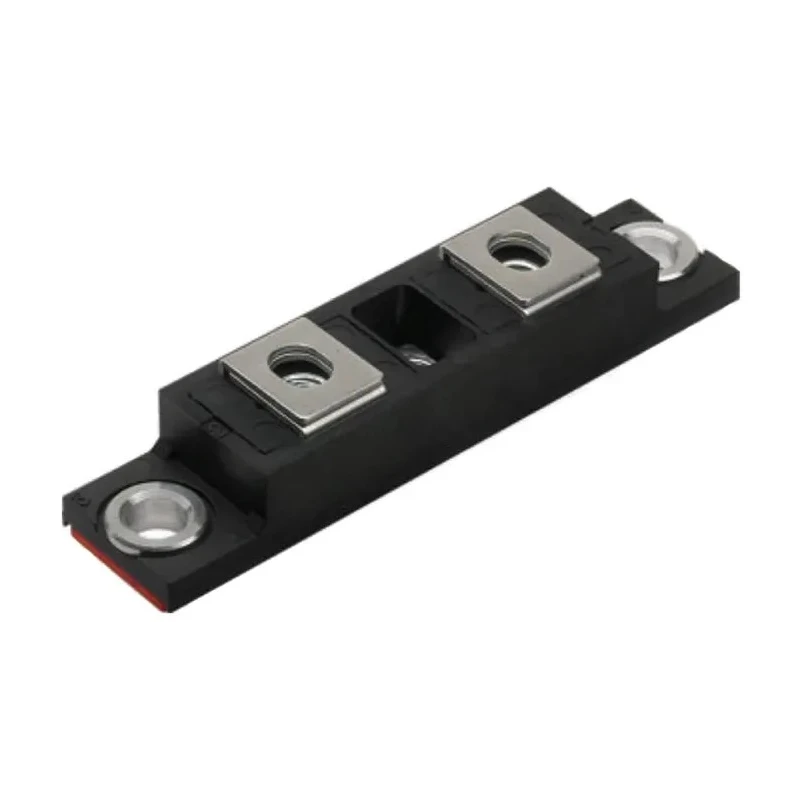

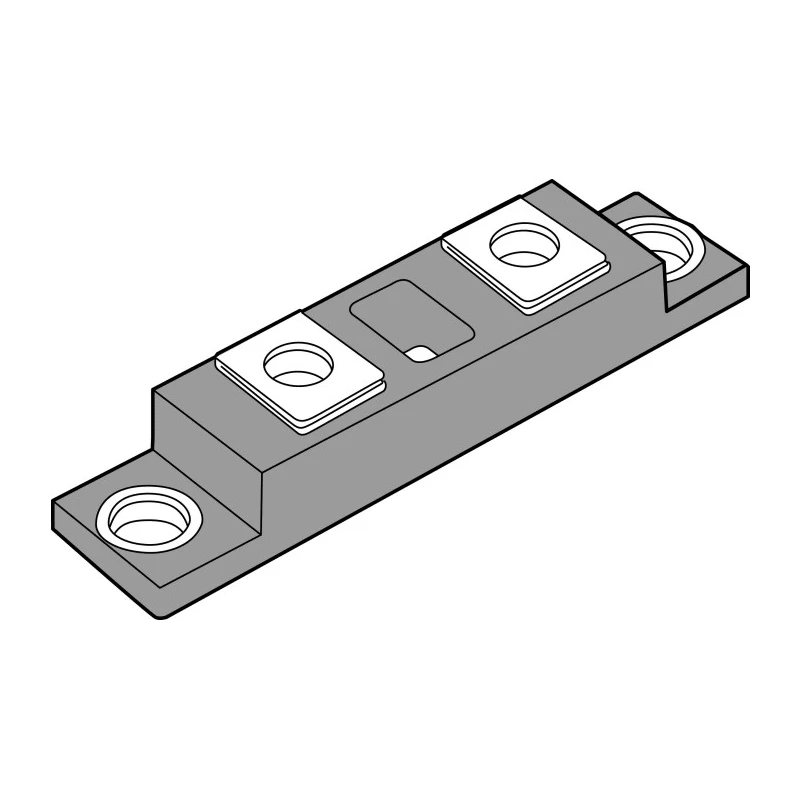

Vishay 30 V 440 A Schottky Diode 3-Pin TO-244 VS-440CNQ030PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15.75mm |
| Length | 92.71mm |
| Model | VS-440CNQ030PBF |
| Width | 20.32mm |
| Mount Type | Panel |
| Series | VS |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-244 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 440A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 27kA |
| Maximum Forward Voltage Vf | 0.41V |
| International Rectifier Diode, 401CNQ045Brand | International Rectifier |
Key Features
- Low forward voltage drop of 0.41 V reduces power loss during operation.
- High maximum continuous forward current capability of 440 A supports demanding loads.
- Fast reverse recovery times for efficient switching performance.
- Robust operation over a temperature range of -55°C to 150°C.
- Compact TO-244 package with 3 pins for easy panel mounting.
- Common cathode diode configuration for versatile circuit integration.
- Supports peak non-repetitive forward surge current of 27 kA for transient resilience.
- Peak reverse repetitive voltage rating of 30 V ensures protection against voltage spikes.
Product Description
Vishay VS-440CNQ030PBF Schottky Diode 3-Pin TO-244 is a high-performance semiconductor component engineered for fast switching and low power dissipation in electronic circuits. With a maximum continuous forward current of 440 A and a peak reverse voltage of 30 V, it operates effectively in power-sensitive and high-load environments.
Featuring a low forward voltage drop of 0.41 V, this Schottky diode minimizes energy losses, enhancing overall system efficiency. Its robust thermal specifications enable operation between -55°C and 150°C, making it suitable for various industrial, electronics manufacturing, and power supply applications where thermal stability is critical.
The diode's TO-244 package incorporates 3 pins with a common cathode configuration, facilitating reliable panel mounting and integration into assemblies requiring Schottky rectifiers. It withstands high surge currents up to 27 kA, offering resilience against transient electrical events that occur in switching and rectification processes.
This component is tailored for use in electronic circuitry demanding rapid switching, low thermal resistance, and high forward current handling. Typical industries include power supply design, industrial electronics, automotive electronic control units (excluding automotive certification), and other advanced semiconductor applications.
Dimensions measure 92.71 mm in length, 20.32 mm in width, and 15.75 mm in height, allowing compact implementation without compromising electrical performance. Low forward voltage drop improves energy efficiency. High forward current of 440 A supports large load currents.
Fast reverse recovery time ensures efficient switching. Wide operating temperature range from -55°C to 150°C. 3-Pin TO-244 package fits standard panel mounting requirements. Common cathode diode configuration for flexible usage.
Withstands peak surge currents up to 27 kA for durability. Rated for peak reverse voltage of 30 V for voltage spike protection. Designed for industrial electronics and semiconductor applications. Compact physical dimensions for space-saving design.
Explore more Vishay electronic components and Schottky diode solutions at EnvMart for industrial, laboratory, and commercial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay VS-440CNQ030PBF Schottky diode is 440 A.
This diode has a peak reverse repetitive voltage rating of 30 V, ensuring protection against voltage spikes.
The forward voltage drop of this Schottky diode is 0.41 V, which helps to reduce power loss during operation.
It operates effectively over a temperature range of -55°C to 150°C, making it suitable for various applications.
The Vishay VS-440CNQ030PBF comes in a TO-244 package with a 3-pin configuration, designed for panel mounting.
This model can withstand a peak non-repetitive forward surge current of up to 27 kA, providing resilience against transient events.
The diode features fast reverse recovery times, which contribute to efficient switching performance in electronic circuits.
The dimensions of this diode are 92.71 mm in length, 20.32 mm in width, and 15.75 mm in height.
It uses a common cathode diode configuration, allowing for versatile integration into various circuits.
This Schottky diode is commonly used in power supply design, industrial electronics, and automotive electronic control units.
The peak reverse current rating for the Vishay VS-440CNQ030PBF is 20 mA.
The country of origin for this diode is India.
