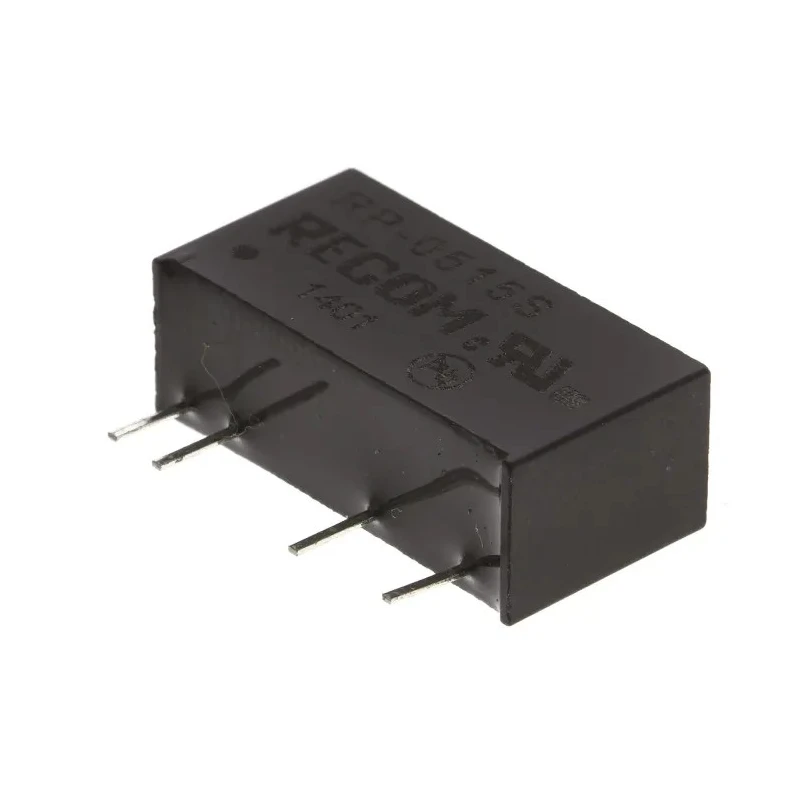

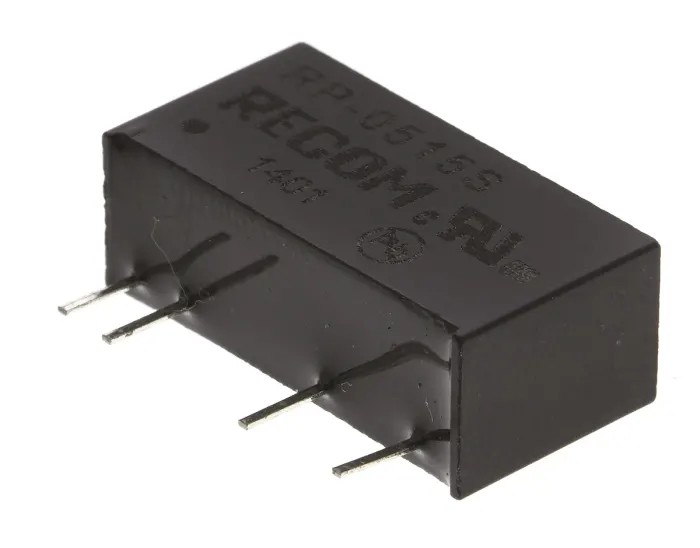

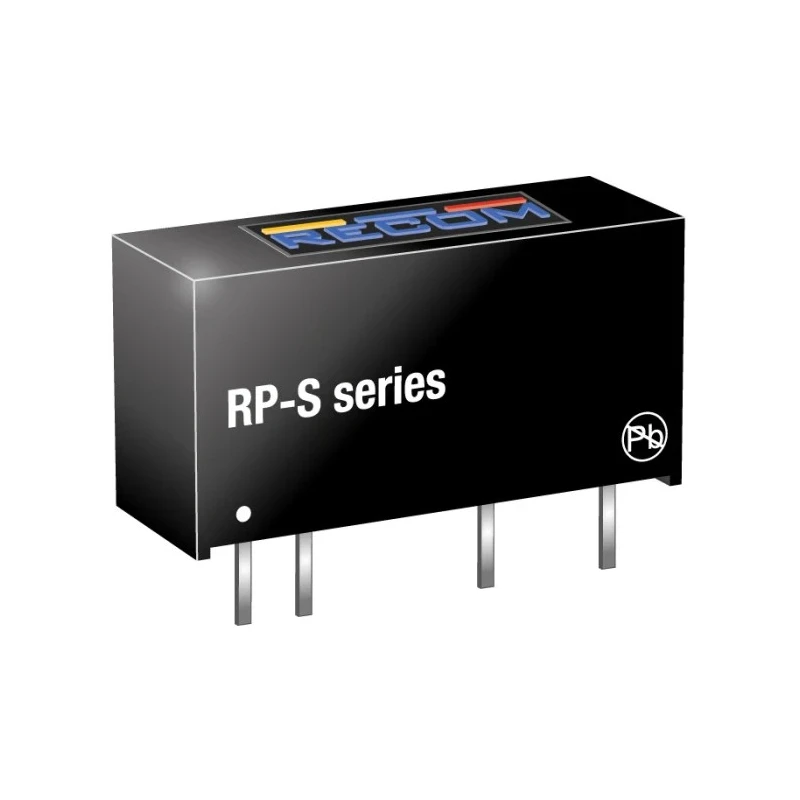

Recom DC/DC Converter with 15V Output, 66 mA Current, 5V DC Input, 1W Power, Through Hole Mount RP-0515S

Recom RP-0515S is a reliable DC/DC Converter designed for industrial and electronic applications requiring a stable 15V DC output at 66 mA from a low voltage input range between 4.5V and 5V DC. It delivers 1 watt of power with exceptional efficiency, achieving up to 82%, minimizing energy waste and heat generation.

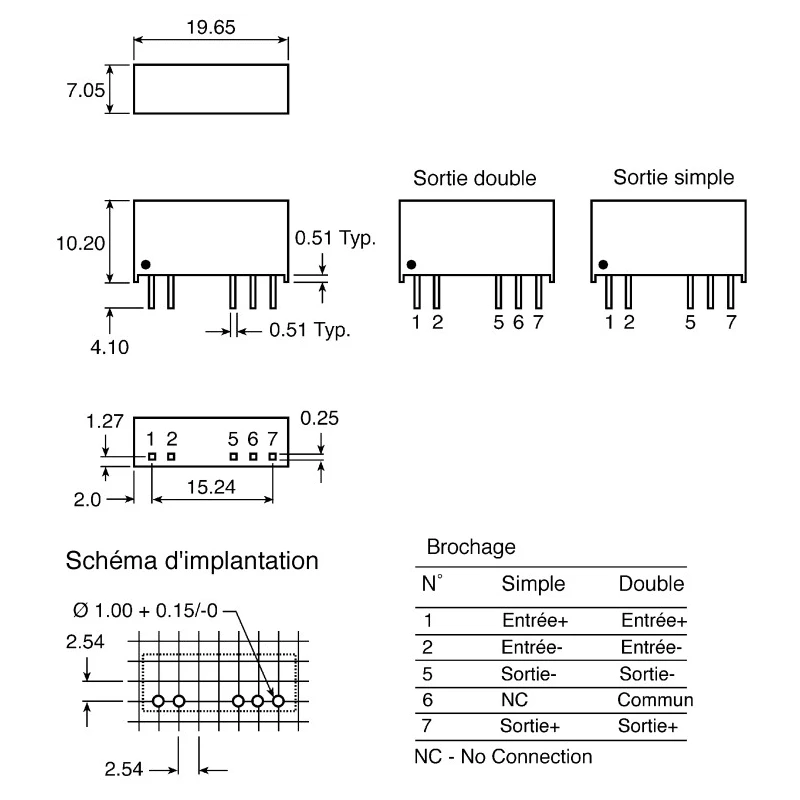

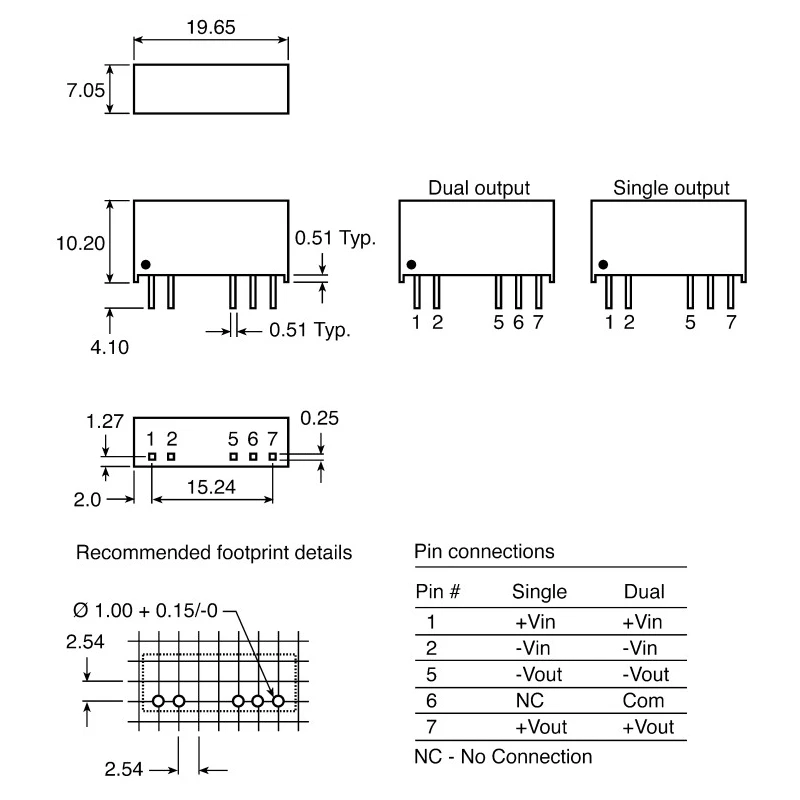

Its compact SIP package measures 19.65 mm in length, 7.05 mm in width, and 10.2 mm in depth, featuring a through-hole mount design allowing easy installation on circuit boards. The converter maintains output voltage accuracy within ±5%, which ensures smooth and stable power supply to sensitive electronic components, limiting noise and ripple voltage to a low 100mV max.

Equipped with a high isolation voltage rating of 2.6kV AC, the RP-0515S offers excellent resistance to electrical surges and noise, safeguarding connected circuitry. Suitable for demanding environments, this device operates reliably across a wide temperature range from -40°C to +85°C, making it ideal for industrial, server management, and construction applications.

The integrated short-circuit protection feature reduces risks of damage due to electrical faults, enhancing overall system safety. Additionally, a robust Mean Time Between Failures (MTBF) of 18,400,000 hours underlines its durability and suitability for continuous operation.

Efficient power conversion with 82% efficiency rating. Compact SIP package with dimensions 19.65mm x 7.05mm x 10.2mm. High isolation voltage of 2.6kV AC for reliable operation. Wide operating temperature range from -40°C to +85°C.

Output voltage accuracy within ±5% for stable performance. Integrated short-circuit protection enhances system safety. Single output design suitable for industrial and server management applications. Mounts easily on through-hole circuit boards for convenient installation.

Robust MTBF of 18,400,000 hours ensures long operational life.

This converter is essential for industrial power supplies, electronic instrumentation, and server hardware requiring regulated voltage conversion with high efficiency and reliability. It supports various industrial environments, including signal processing, thermal processing, and construction machinery electronics.
