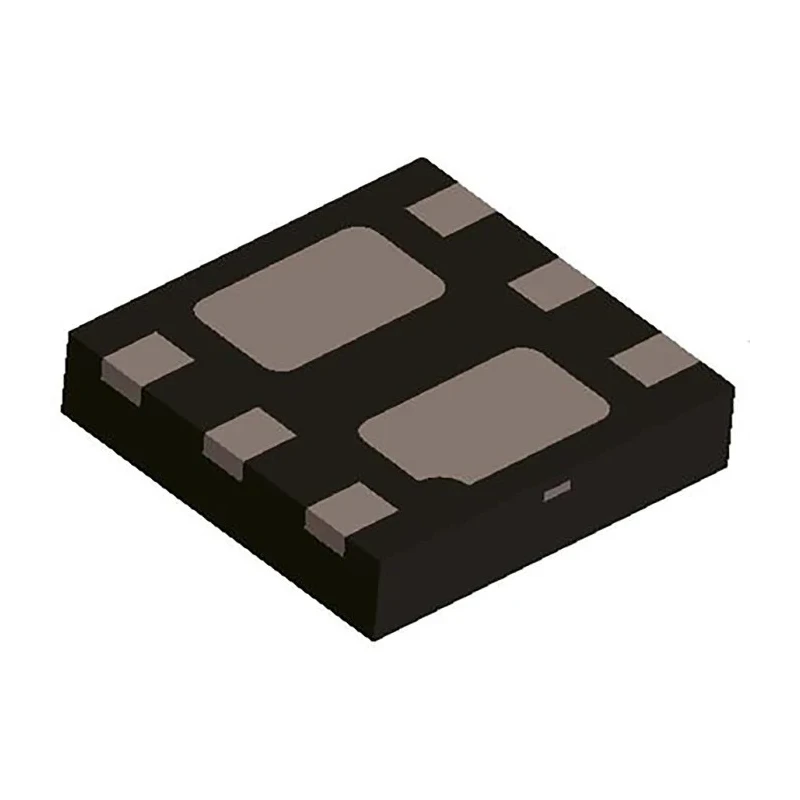

DiodesZetex Dual 2 Type P-Channel MOSFET, -4.5 A, 20 V Enhancement, 6-Pin DFN DMP2065UFDB-7

DiodesZetex DMP2065UFDB-7 is a dual P-Channel MOSFET designed primarily for surface mount technology in electronic components assemblies. Featuring a maximum continuous drain current of -4.5 A and a maximum drain-source voltage rating of 20 V, this device operates in enhancement mode, making it efficient for switching and amplification tasks.

Its 6-pin Dual Flat No-lead (DFN) package is highly suitable for compact, high-density PCB applications. The MOSFET’s typical gate charge of 10.2nC at Vgs allows for rapid switching speeds, critical in power management and signal processing applications.

This component is rated to handle power dissipation up to 1.5 W and withstand operating temperatures from -55°C up to a maximum of +150°C, ensuring reliable performance in harsh environments. Its dual transistor configuration integrates two identical MOSFETs in one chip, optimizing circuit layout and space utilization.

Additionally, it complies with stringent automotive standards such as AEC-Q100, AEC-Q200, and AEC-Q101, making it suitable for automotive electronics requiring high reliability. The device meets safety requirements with certifications including UL 94V-0 and RoHS compliance.

Typical physical dimensions include a length and width of 2 mm each, and a height of 0.56 mm, reinforcing its suitability for modern miniaturized electronic designs.

The DMP2065UFDB-7 MOSFET finds extensive use in industrial, automotive, telecommunications, and consumer electronic applications where efficient power switching and control are critical.

The device uses enhancement channel mode for efficient switching. It is housed in a compact 6-pin DFN package suitable for high-density PCB layouts. Typical gate charge is 10.2nC at Vgs, facilitating fast switching. Operates within a wide temperature range from -55°C to +150°C.

The MOSFET provides a maximum power dissipation of 1.5 W, suitable for moderate power applications. Automotive standards compliance including AEC-Q100, AEC-Q200, and AEC-Q101 ensured reliability. Forward voltage rated at -0.7V supports effective current control.

Dual transistor configuration offers integrated functionality in one chip. Dimensions are compact with 2mm length, 2mm width, and 0.56mm height. RoHS compliant and UL 94V-0 standard approved for safety. Explore the MOSFET category on EnvMart for additional components to enhance your electronic designs and power management solutions.
