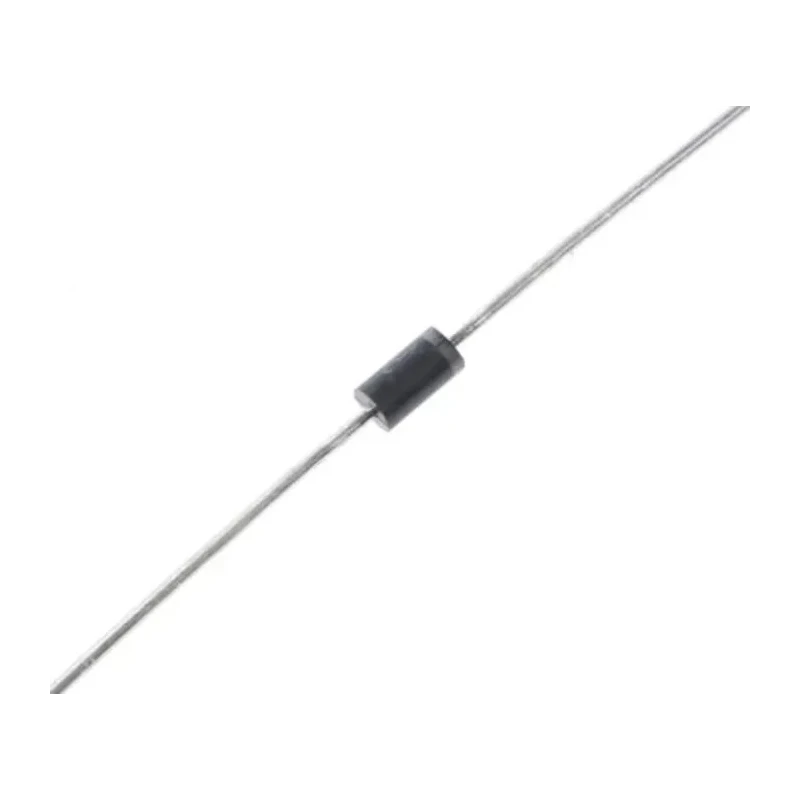

Vishay 400 V 1 A General Purpose Rectifier Diode 2-Pin DO-204AL 1N4004-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay 400 V 1 A General Purpose Rectifier Diode 2-Pin DO-204AL 1N4004-E3/54

Name: Vishay 400 V 1 A General Purpose Rectifier Diode 2-Pin DO-204AL 1N4004-E3/54
Brand: Vishay
SKU: 200693
Price: 0.26 USD
Availability: InStock



Category Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	2.7mm
Brand	Vishay
Height	5.2mm
Length	5.2mm
Model	1N4004-E3/54
Width	2.7mm
Mount Type	Through Hole
Series	1N4004
Maximum Operating Temperature	150°C
Package Type	DO-204AL
Minimum Operating Temperature	-50°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	400V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	45A
Maximum Forward Voltage Vf	1.1V
Vishay 400V 1A, Silicon Junction Diode, 2-Pin DO-204AL 1N4004Brand	Vishay
Vishay 50 V 1 A Diode General Purpose 2-Pin DO-204AL 1N4001-E3/54Brand	Vishay
Lite-On 400V 1A, Silicon Junction Diode, 2-Pin A 405 1N4004LBrand	Lite-On

Key Features

This diode features low forward voltage drop for efficient operation.
It has a high forward surge current capability of 45 A.
The operating temperature ranges from -50°C to 150°C.
Designed for through-hole mounting with a compact 5.2 mm length and 2.7 mm diameter dimensions.
Ideal for rectification in power supplies, inverters, and converter circuits.
It is a single diode configuration for general-purpose use.
Offers low leakage current ensuring energy efficiency.
Constructed with silicon junction technology for durability and reliability.

Product Description

Vishay 1N4004-E3/54 general purpose rectifier diode is a through-hole mounted silicon diode with a maximum continuous forward current of 1 A and peak reverse repetitive voltage of 400 V. It is housed in a plastic DO-204AL (DO-41) package featuring 2 pins and compact physical dimensions (5.2 mm length × 2.7 mm diameter), ideal for PCB mounting and electronic assemblies.

This diode exhibits a low forward voltage drop of 1.1 V and supports high surge currents up to 45 A, making it suitable for various power rectification tasks in power supplies, inverters, and converters. Its operating junction temperature range from -50°C to 150°C enables reliable performance in demanding industrial environments.

The 1N4004-E3/54 diode is characterized by low leakage current and robust silicon junction technology, ensuring energy efficiency and longevity. It is primarily used in industrial, laboratory, and manufacturing settings for rectifying AC to DC and protecting circuits in freewheeling diode applications.

Low forward voltage drop for efficient conduction. High surge current capability of 45 A ensures durability under transient conditions. Wide operating temperature range from -50°C to 150°C for harsh environments. Compact DO-204AL package supports easy mounting and assembly.

Low leakage current reduces energy loss during operation. Single Diode configuration ideal for general-purpose rectification. Silicon junction construction promotes reliable performance. Suitable for power supply rectification, inverter circuits, and converters.

Manufactured in China under Vishay's quality standards. Applications include industrial electronic equipment, laboratory apparatus, and power electronics manufacturing. Explore the full range of Vishay electronic components suitable for semiconductor and power connector applications at EnvMart.
