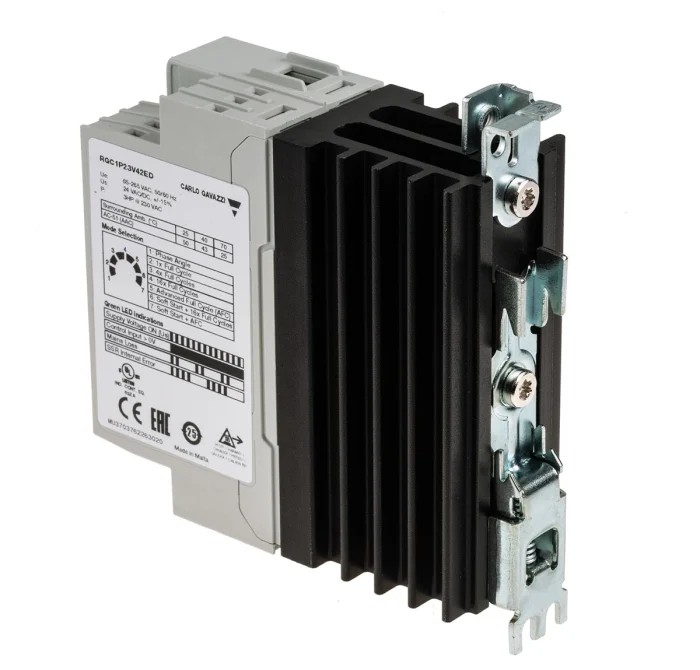

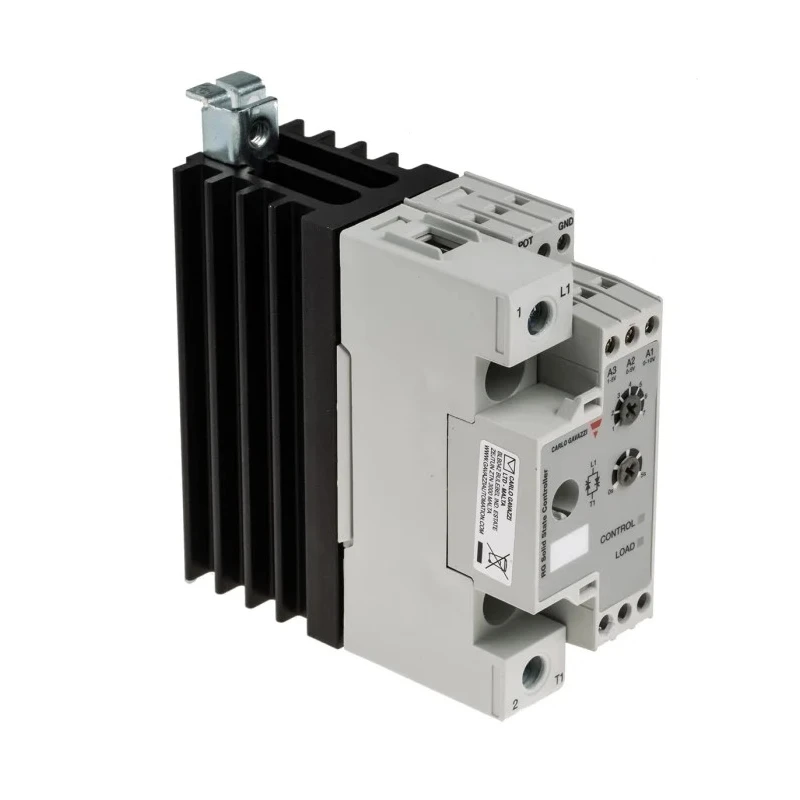

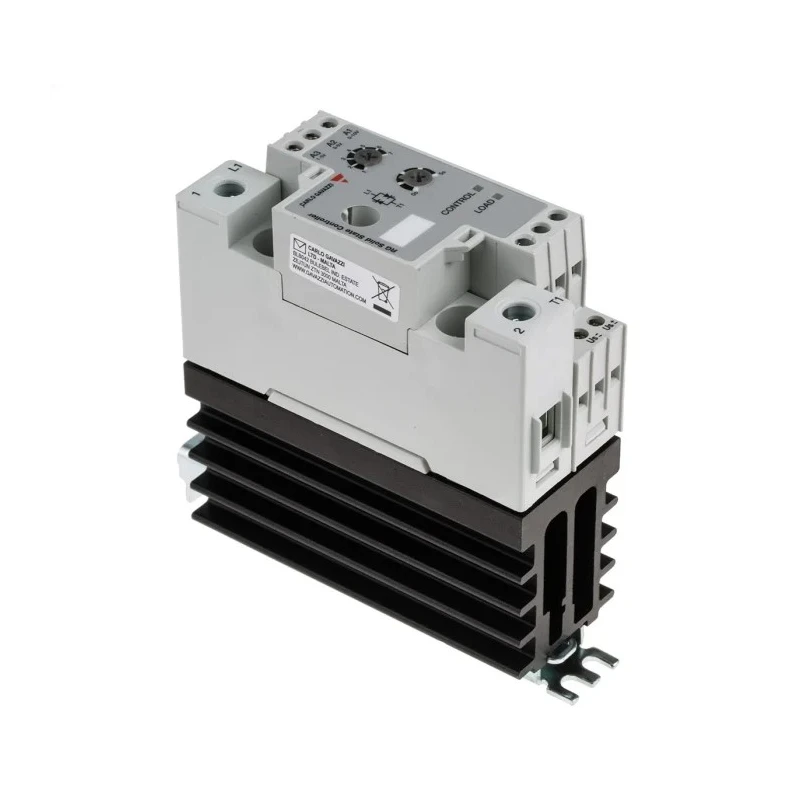

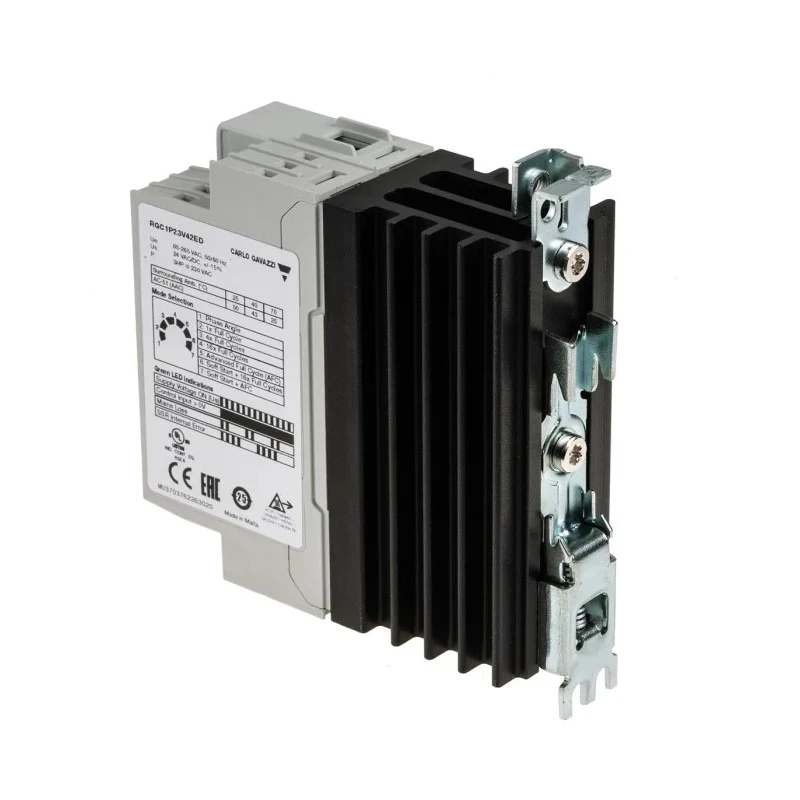

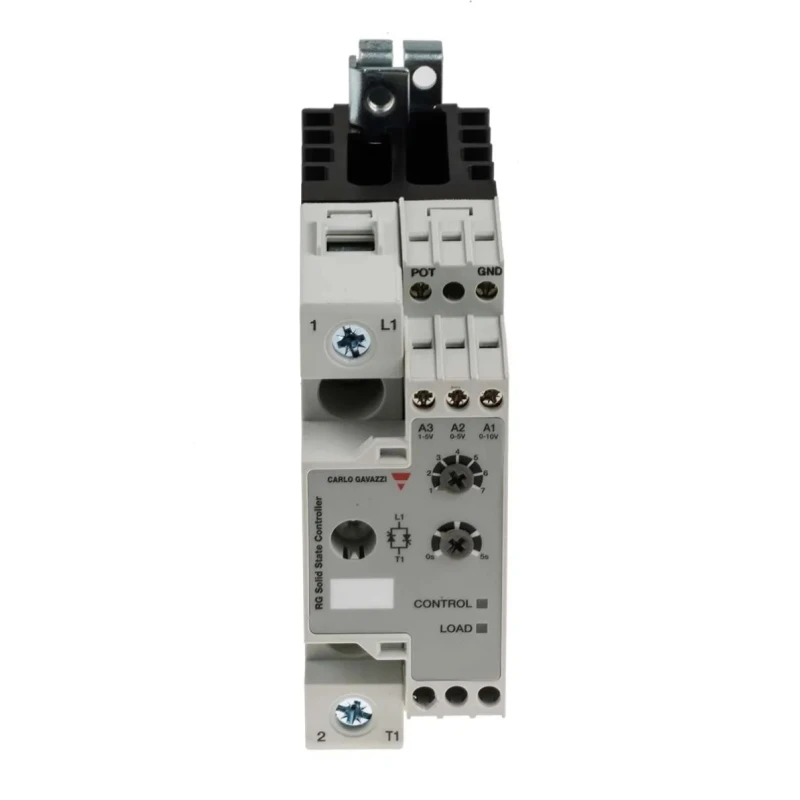

Carlo Gavazzi DIN Rail Power Controller Solid State AC 250V Analogue RGC1P

Carlo Gavazzi RGC1P DIN Rail Power Controller Solid State AC 250V Analogue is a highly reliable device engineered for industrial and automation applications requiring precise control of single phase loads. Featuring an integrated heatsink, it efficiently manages heat dissipation during operation. The controller supports analogue control input to modulate power output precisely in various modes, including phase angle, multiple full cycle options, advanced full cycle particularly suited for short wave infrared heaters, and soft starting to limit inrush current for loads with high temperature coefficients.

This power controller is rated for operational voltages up to 660 V AC and maximum current handling of 63 A AC. Control inputs accommodate a range of signals such as 4-20 mA, 0-5 V, 1-5 V, 0-10 V, and external potentiometer input for versatile control system integration. Integrated varistor protection enhances device longevity by protecting the output from overvoltages, critical for sensitive industrial environments.

Two front-mounted LEDs provide clear indication of load status and control activity, facilitating straightforward monitoring. Installation is simplified with DIN rail or panel mounting options, making it suitable for various industrial control panels.

The device operates robustly across a temperature range of -40°C to 70°C, ensuring reliable performance in demanding conditions. Its compact size (width 103.5 mm, length 35.8 mm, panel depth 99 mm) and IP20 protection rating make it suitable for standard industrial enclosures and environments with basic protection requirements.

Integrated heatsink enables efficient thermal management. Multiple selectable switching modes including phase angle and soft start. Supports control inputs of 4-20 mA, voltages from 0-10 V, and external potentiometer. Overvoltage protection via built-in varistor safeguards device performance.

LED indicators facilitate easy load and control status monitoring. Flexible DIN rail or panel mounting options for varied installation needs. Rated for 63 A maximum current and 250 V supply voltage. Conforms to standards EN 60947-4-3, EN50155, EN61373, UL508, and cUL certifications.

Constructed for reliable industrial and process control applications.

This Carlo Gavazzi Power Controller is ideal for use in industrial automation, process control systems, HVAC applications, and manufacturing environments where precise load power regulation is essential. The device’s robust design and comprehensive certifications assure compliance with safety and industry standards, promoting effective performance and long service life. For comprehensive control solutions, explore the wide range of Carlo Gavazzi automation equipment and accessories available on EnvMart.
