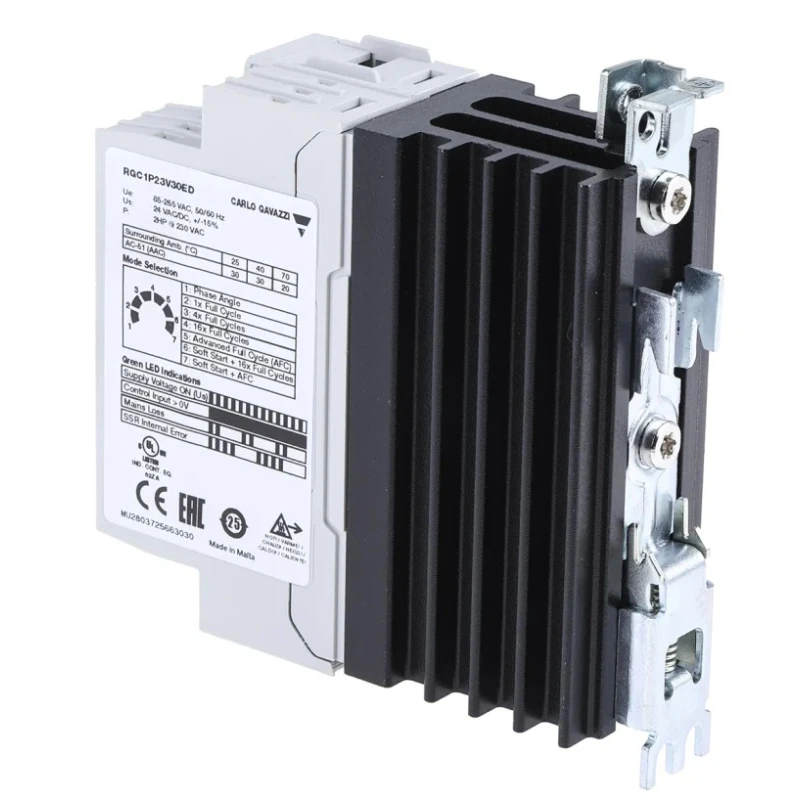

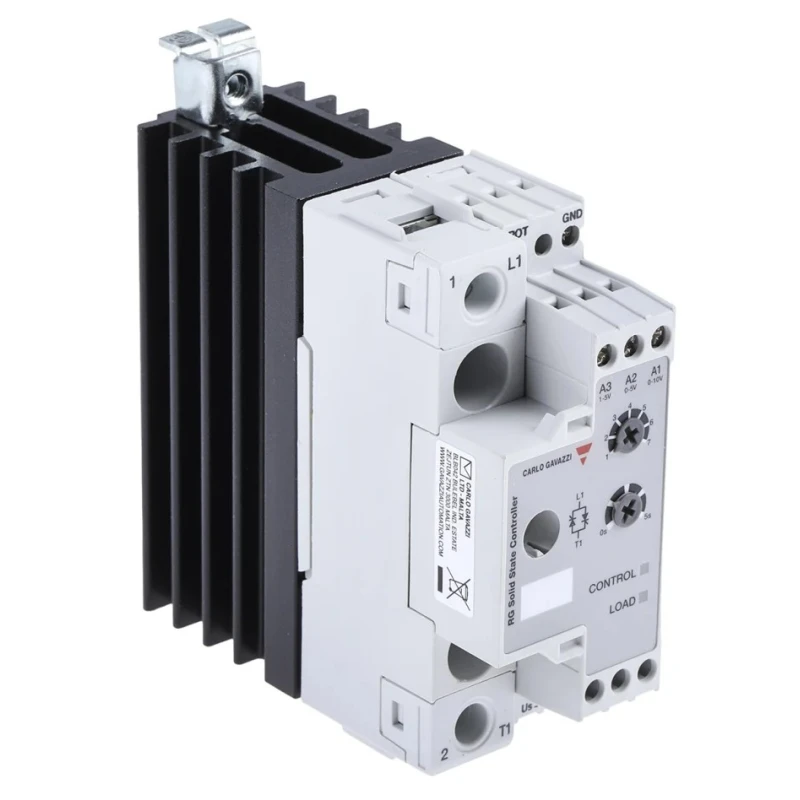

Carlo Gavazzi RGC1P Analogue DIN Rail Panel Power Controller AC 250V 63A 35.8mm x 70mm

Carlo Gavazzi RGC1P23V30ED analogue DIN Rail Panel Power Controller is a robust solid-state relay designed to manage AC power loads up to 63A with a maximum supply voltage of 250V. The controller features an integrated heatsink and varistor that safeguard the output from overvoltages, ensuring long-term reliability.

It supports analogue input signals such as 4-20 mA, 0V-5V, 1V-5V, 0V-10V, and external potentiometer controls for precise power regulation of single-phase loads. Selectable firing modes include phase angle control, full-cycle control at various multiples (x1, x4, x16), advanced full cycle tailored for short wave infrared heaters, and soft start to limit inrush current in sensitive loads.

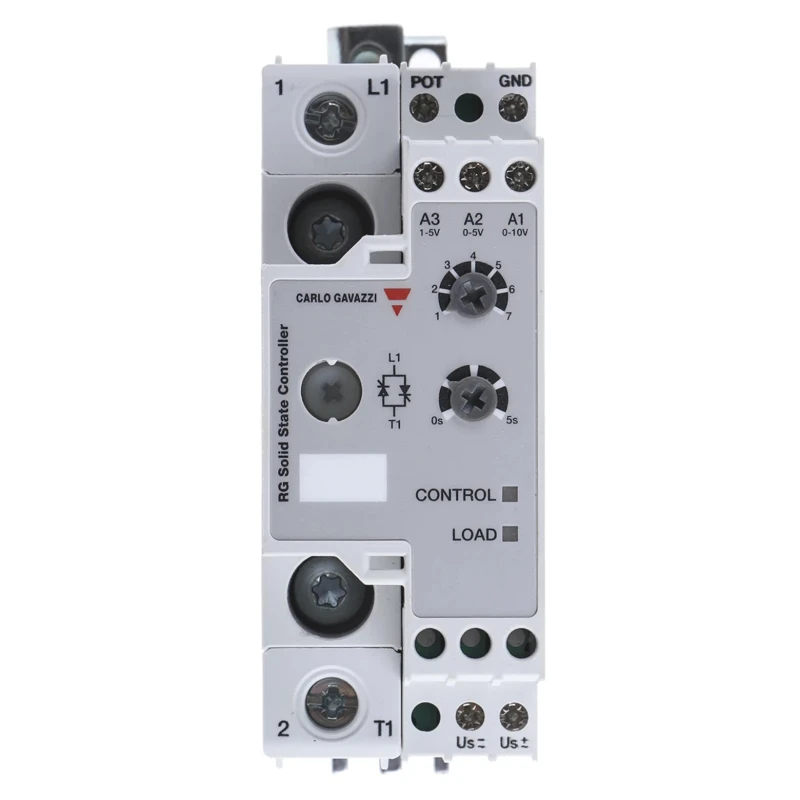

The device is fitted with two LED indicators visible on the front panel, showing load and control statuses clearly for operational feedback. Its compact dimensions of 35.8mm length and 70mm width, with a panel depth of 99mm, allow easy mounting on DIN rails or directly on panels in industrial panel boards.

With a wide operational temperature range from -40°C to 70°C and an IP rating of IP20, it suits demanding industrial automation, process control, HVAC systems, and manufacturing environments. The RGC1P series controller complies with multiple international standards including CSA 22.2 No.14-13, EN 60947-4-3, EN50155, EN61373, ROHS, and UL508, guaranteeing safety and regulatory adherence.

Operates with analogue control inputs including 4-20 mA and various voltage ranges. Integrated heatsink for efficient thermal dissipation during operation. Varistor protection to mitigate overvoltage damage on outputs. Multiple firing modes provide versatile control for different load types.

Durable screw terminals ensure secure and reliable electrical connections. DIN rail and panel mounting options provide installation flexibility. Wide temperature operating range supports harsh industrial applications. Certified for use in industrial electrical systems under various global standards.

This power controller is ideal for automated industrial environments requiring precise load control through analogue inputs. Its robust construction, standard compliance, and flexible operation modes make it suitable for electrical panels, process controllers, HVAC systems, and other industrial automation uses.
