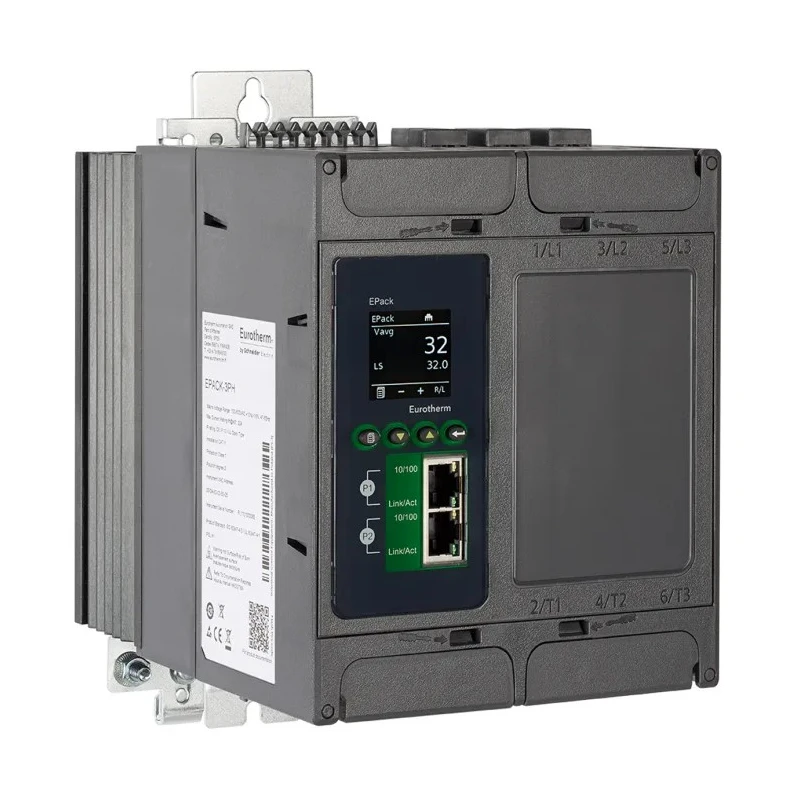

Eurotherm EPACK Series 3 Phase DIN Rail Power Controller Relay 32A 500V TFT Display EPACK-3PH/32A/24V/XXX/V2/XXX/XXX/TCP

Eurotherm EPACK-3PH/32A/24V/XXX/V2/XXX/XXX/TCP is a 3 phase DIN Rail power controller relay designed for reliable and accurate load control in industrial automation and process control applications. This controller supports a maximum current of 32A and a maximum supply voltage of 500V with screw terminal connections for secure electrical interface. It incorporates a TFT display to facilitate easy configuration, monitoring, and diagnostics.

The device operates in ambient temperatures ranging from 0°C to 45°C and features an IP20 ingress protection rating. Its control methodology includes various firing modes such as variable modulation burst firing, fixed modulation period, logic mode, intelligent half cycle, and phase angle control, allowing it to handle a wide range of loads including resistive, infrared, transformer, and silicon carbide loads.

Equipped with integrated ethernet communications, the controller supports Modbus TCP, Ethernet/IP, and Profinet interfaces with plug and play capabilities and zero configuration networking for seamless integration into industrial communication networks. Energy measurement and advanced load diagnostics enable alarm management and monitoring of key parameters like impedance, energy consumption, and reactive power to ensure optimal performance.

Mounting options include both compact DIN Rail and bulkhead configurations. The length, width, and panel depth dimensions are 242mm, 192mm, and 219mm respectively. Compliance with standards such as CAN/CSA C22.2 NO.60947-4-1-14, IEC/EN60947-4-3:2014, UL60947-4-1, and regulatory mark (RCM) to the Australian Communications and Media Authority ensures industry-standard safety and reliability.

Eurotherm EPACK series power controllers are ideal for industrial, manufacturing, HVAC, and process control systems requiring precise and reliable multi-phase power control. The robust digital communication and diagnostic features support advanced monitoring and operational efficiency.

The power controller supports variable modulation burst firing and phase angle firing modes. It features Ethernet communications via Modbus TCP, Ethernet/IP, and Profinet protocols. Energy measurement and advanced load diagnostics are integrated for effective monitoring.

The compact DIN Rail mounting design includes a TFT display for ease of configuration and diagnostics. Devices operate within temperature ranges of 0°C to 45°C and have an IP20 rating for protection. Explore Eurotherm Power Controller offerings and related automation products at EnvMart for your industrial control applications.
