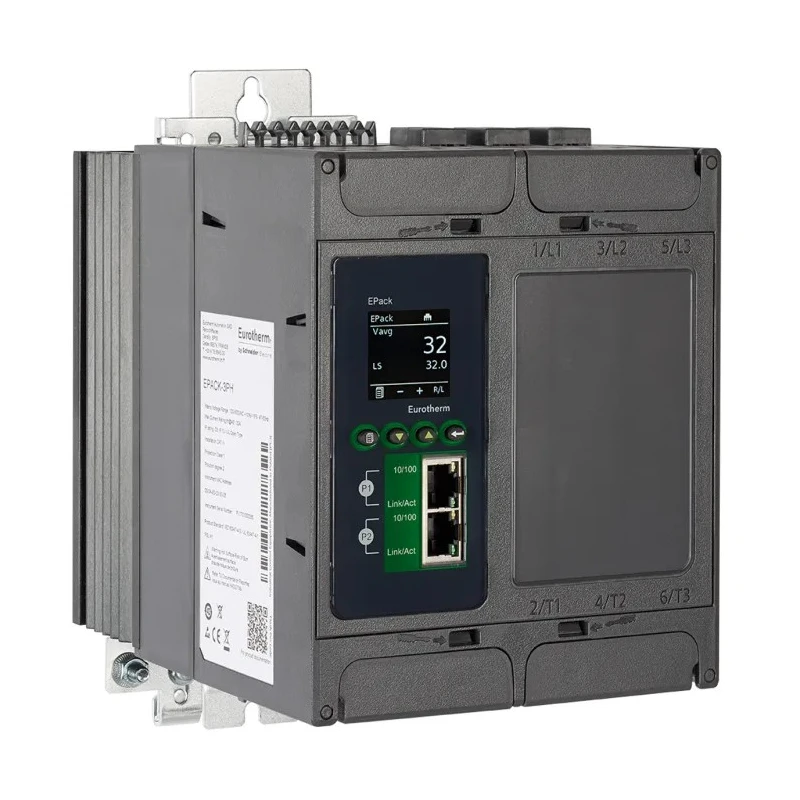

Eurotherm 3-Phase DIN Rail Power Controller Relay 32A 500V TFT Display EPACK-3PH/32A/500V/XXX/V2/XXX/XXX/TCP

Eurotherm EPACK-3PH/32A/500V/XXX/V2/XXX/XXX/TCP is a state-of-the-art 3-phase power controller relay designed for mounting on DIN rails in industrial and automation settings. It operates at a maximum voltage of 500V and supports current loads up to 32 Amps, providing robust control of various types of electrical loads including resistive and inductive loads.

The device is configured through a front panel interface and features a bright TFT display to facilitate clear monitoring and diagnostics. The high-level diagnostics include alarm management, energy counters, impedance monitoring, and reactive power measurement, enabling efficient load management and fault detection.

This power controller facilitates communication via multiple industrial protocols such as Modbus TCP, Profinet, and Ethernet/IP, enabled through an integrated dual port Ethernet switch that supports daisy-chained networking without requiring complex configuration.

With compact dimensions (242mm length, 192mm width, and 219mm panel depth), it fits easily into control panels, with an IP20 rating suitable for typical industrial environments. It operates effectively between 0°C and 45°C, making it suitable for a variety of climate conditions in industrial and manufacturing installations.

The product adheres to key international standards for safety and performance, including CE marking, UL60947-4-1 certification, IEC/EN60947-4-3:2014 compliance, CAN/CSA standards, and Australian RCM regulatory marking, ensuring reliable operation and regulatory compliance.

Origins from Poland highlight its manufacturing quality. This power controller is ideal for applications in industrial automation, process control systems, electrical panels, HVAC control, and energy management systems where precision and communication capabilities are critical.

Supports nominal load currents from 1 Amp to 125 Amps ensuring versatile usage. Operates at a maximum supply voltage of 500 V with a 32A maximum current rating. Equipped with TFT display for clear monitoring and diagnostics.

Features configurable settings via front panel for ease of use. Integrated dual port Ethernet switch for daisy-chained Modbus TCP, Profinet, and Ethernet/IP communications. Capable of controlling resistive, infrared, transformer, and silicon carbide loads with precision.

Provides high-level diagnostics including alarm management and energy usage measurement. Compact DIN rail mount design with dimensions 242mm x 192mm x 219mm suitable for panel installations. Suitable for operating temperatures from 0°C to 45°C and rated IP20 for ingress protection.

Complies with multiple standards including CE, UL60947-4-1, IEC/EN60947-4-3:2014, and Australian RCM marking. Explore more Power Controllers and industrial automation equipment available at EnvMart for your comprehensive industrial operation needs.
