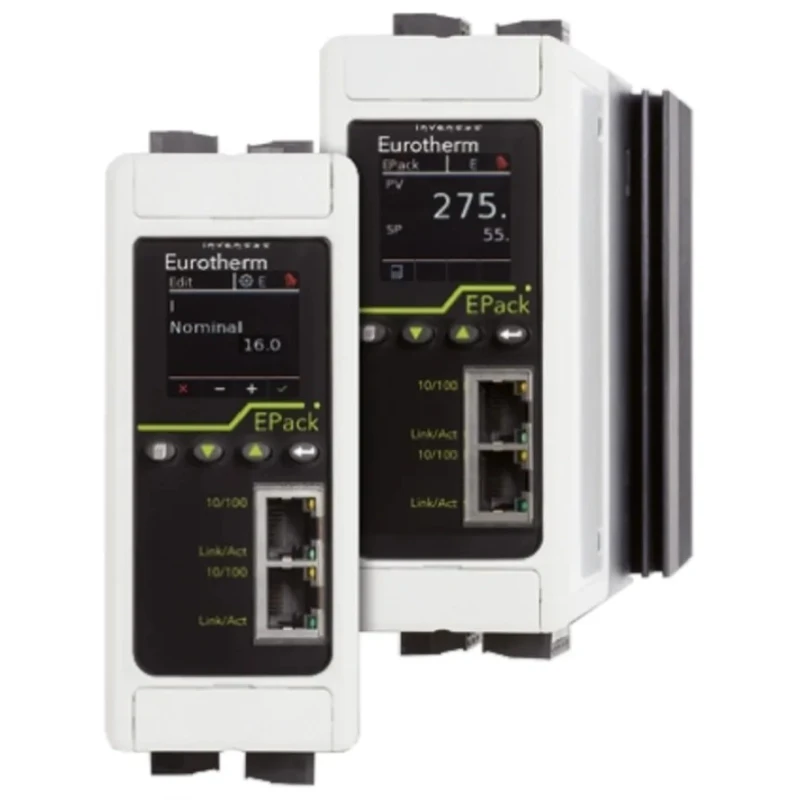

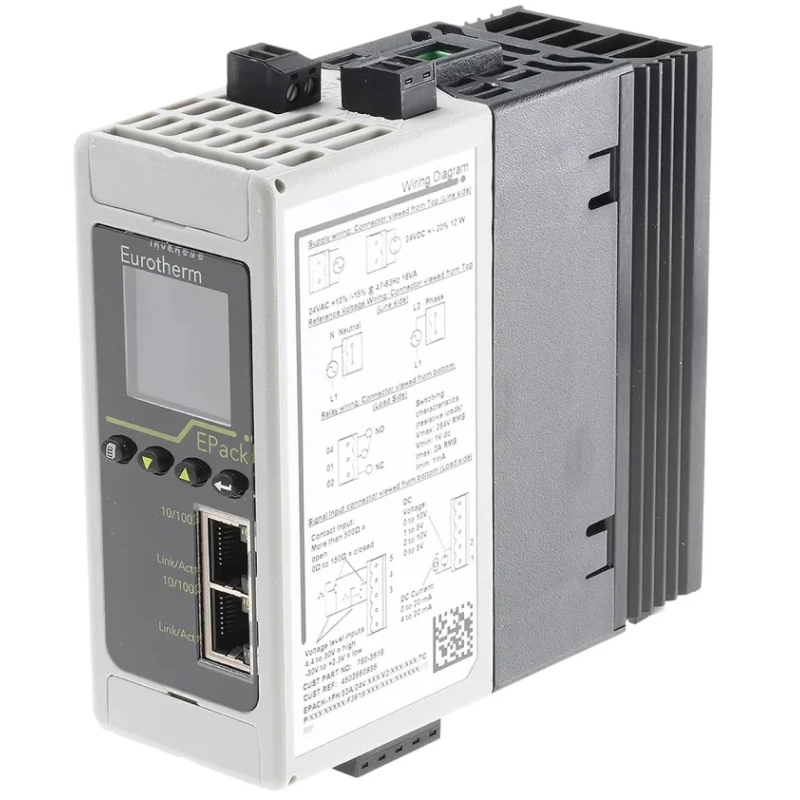

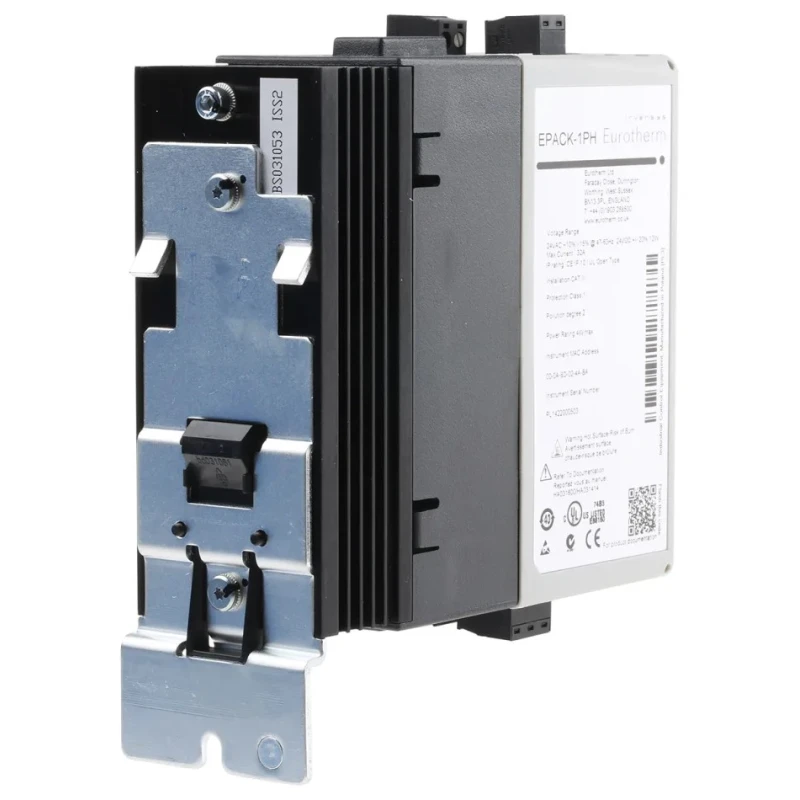

Eurotherm Compact EPack DIN Rail Power Controller, 1 Output 1 NE, De-Energised On Alarm Relay, 500V EPACK-1PH/32A/24V/XXX/V2
Specifications
| Country of Origin | Poland |
|---|---|
| Display Type | 1.5 in TFT Colour |
| Display | 1.5" TFT display |
| Brand | Eurotherm |
| Length | 48mm |
| Model | EPACK-1PH/32A/24V/XXX/V2 |
| IP Rating | IP20, IP10 |
| Width | 121mm |
| Mount Type | DIN Rail |
| Output type | 1 NE, De-Energised On Alarm Relay, Alarm Relay |
| Series | EPack |
| Input Type | 0 to 20 mA, 2 to 10 V, 0 to 10 V, Contact, 4 to 20 mA, One Configurable Analogue Input 0 to 5 V, Digital Input |
| Maximum Operating Temperature | 45°C |
| Control Type | Threshold Limit Control (Pa Reduction), True Power Control, Open-Loop Control with Feedforward+Trim, I² Control, Proportional Limit Control (by transfer V²↔I² or P↔I²), V² Control |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet switch for daisy chained communications |
| Maximum Current | 63A |
| Number of outputs | 1 |
| Terminal type | Plug |
| Maximum Voltage | 500V |
| Standards/Approvals | CE, GOST-R, IEC 60947-4-3, CCC, cUL, UL |
| Maximum Supply Voltage | 500V ac/dc |
| Digital Comms | Ethernet Dual Port/Modbus TCP |
| Diagnostics | Partial Load Failure, Over-Voltage, Continuous Monitors and Detects Fault Conditions Including Short Circuit |
| Panel Depth | 136.2mm |
| Firing Mode | Fixed Burst Firing, Variable Burst Firing, Phase Angle, Intelligent Half Cycle |
Key Features
- Rated for a maximum current of 63A suitable for robust power control scenarios.
- Operates in temperatures ranging from 0°C to 45°C, ensuring reliability.
- Features multiple control types including Threshold Limit, True Power, and Proportional Limit Control.
- Equipped with a high definition 1.5 inch TFT color display for user-friendly interaction.
- Includes Ethernet Dual Port with Modbus TCP for advanced digital communications.
- Supports fixed, variable burst firing, phase angle, and intelligent half cycle firing modes.
- Compact unit designed for DIN Rail mounting with plug-type terminals for easy installation.
- Integrated diagnostics detect partial load failure, over-voltage, and short-circuit conditions.
Product Description
Eurotherm EPACK-1PH/32A/24V/XXX/V2 is a compact DIN Rail mounted power controller designed for precise and efficient industrial power management. Featuring one output with 1 normally energized (NE) relay and a de-energised on alarm relay, this controller enhances operational safety and reliability in demanding environments.
Operating at up to 63A maximum current and supporting supply voltages up to 500V AC/DC, the EPACK series provides versatile control modalities such as threshold limit, true power control, open-loop with feedforward plus trim, I² control, and V² control. This facilitates optimized power delivery tailored to specific load requirements.
The device integrates a high definition 1.5 inch TFT color display which allows clear monitoring and configuration, assisted by Eurotherm's iTools PC software or the front panel interface. Connectivity includes an integral Ethernet dual port with Modbus TCP protocol to enable seamless communication within complex automation networks.
Advanced firing modes supported by this controller include fixed and variable burst firing, phase angle control, and intelligent half cycle firing, optimizing performance for various load types. Robust diagnostics monitor partial load failure, over-voltage, and continuously detect fault conditions including short circuits to minimize downtime.
Designed for industrial and process control applications in sectors such as manufacturing, HVAC, and electrical automation, this DIN Rail mount controller complies with international standards including CE, GOST-R, IEC 60947-4-3, CCC, cUL, and UL safety certifications.
Rated max current: 63A. Operating temperature: 0°C to 45°C. Control types: Threshold Limit, True Power, I², V². 1.5 in TFT color display. Ethernet Dual Port / Modbus TCP. Firing modes: Fixed & Variable Burst, Phase Angle.
Integrated diagnostics for fault detection. DIN Rail mount with plug terminals. Compliance: CE, GOST-R, IEC, CCC, cUL, UL.
This controller represents a reliable solution for efficient power control and monitoring in complex automation and industrial environments. Explore more Eurotherm products and DIN Rail Power Controllers on EnvMart to enhance your control system capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eurotherm Compact EPack power controller has a maximum current rating of 63A.
This model operates within a temperature range of 0°C to 45°C.
It supports multiple control types including Threshold Limit Control, True Power Control, I² Control, V² Control, and Proportional Limit Control.
The maximum supply voltage for this power controller is 500V AC/DC.
It features a 1.5 inch TFT color display for user interaction and monitoring.
This unit is designed for DIN Rail mounting, making installation straightforward.
It includes diagnostics for partial load failure, over-voltage, and continuous monitoring for fault conditions, including short circuits.
The supported firing modes include Fixed Burst Firing, Variable Burst Firing, Phase Angle, and Intelligent Half Cycle firing.
The dimensions are 121mm in width, 48mm in length, and 136.2mm in depth.
It accepts various input types including 0 to 20 mA, 2 to 10 V, 0 to 10 V, 4 to 20 mA, and a configurable analogue input of 0 to 5 V.
Yes, it complies with several international standards including CE, GOST-R, IEC 60947-4-3, CCC, cUL, and UL.
It features an Ethernet dual port with Modbus TCP for advanced digital communications.
