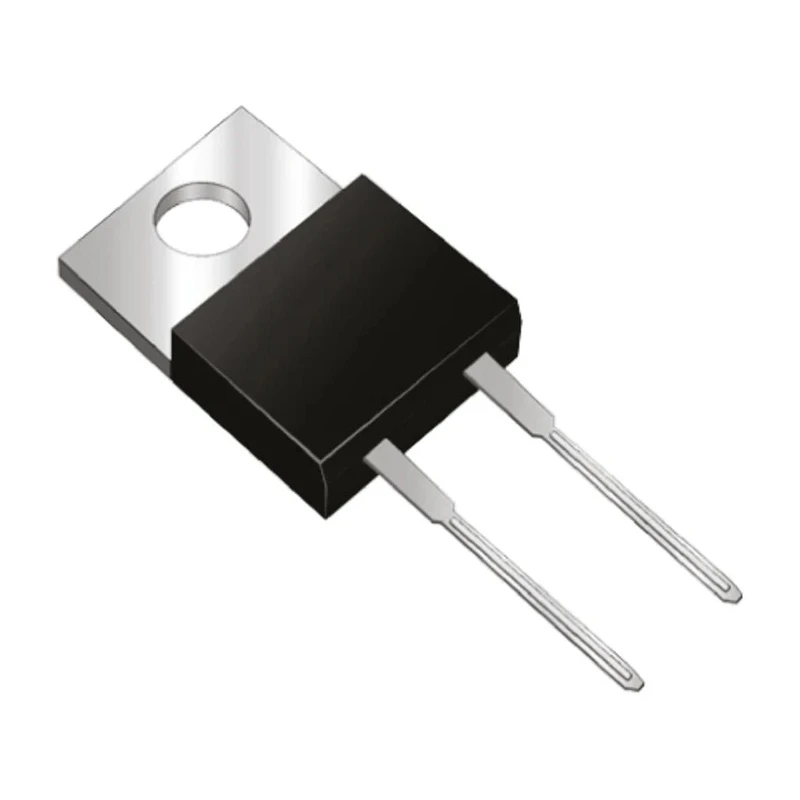

onsemi 45 V 10 A Schottky Diode, Single Configuration, 2-Pin TO-220AC MBR1045G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.27mm |
| Length | 10.29mm |
| Model | MBR1045G |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | MBR1045 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.85V |
| Diode,Rectifier,Barrier,Schottky,TO220,MBR1045Brand | ON Semiconductor |
| onsemi Diode, MBR1045Brand | ON Semiconductor |
Key Features
- The diode features a maximum continuous forward current of 10 A.
- It supports a peak reverse repetitive voltage of 45 V for reliable blocking performance.
- The package is a 2-pin TO-220AC type for easy mounting and heat dissipation.
- The diode offers a low forward voltage drop of 0.85 V, improving efficiency.
- It operates over a wide temperature range from -65°C to 175°C.
- Peak non-repetitive forward surge current is up to 150 A for transient events.
- This diode is AEC-Q101 automotive qualified for high reliability.
- Compact dimensions include length 10.29 mm, width 4.82 mm, and height 9.27 mm.
Product Description
onsemi MBR1045G Schottky Diode is a high-performance single diode housed in a TO-220AC through-hole package, rated for 45 V peak reverse voltage and 10 A maximum continuous forward current. Its low forward voltage drop of 0.85 V ensures efficient power conversion in demanding electronic circuits.
This diode supports a peak non-repetitive forward surge current of 150 A, allowing it to withstand current spikes during transient conditions. It functions reliably in a broad operating temperature range from -65°C to 175°C, making it suitable for harsh industrial and automotive environments.
The 2-pin TO-220AC package facilitates straightforward PCB mounting and effective heat dissipation, making it ideal for power rectification, voltage clamping, and freewheeling diode functions in power supplies, motor control circuits, and power management modules.
It is automotive qualified under the AEC-Q101 standard, ensuring high reliability and performance in vehicular electronic systems. The diode provides 10 A continuous forward current capability. Maximum peak reverse voltage is rated at 45 V.
Low forward voltage drop of 0.85 V optimizes efficiency. Wide operating temperature range from -65°C to 175°C. Peak surge current rating of 150 A for transient tolerance. Compact package size with 10.29 mm length and 4.82 mm width.
2-pin configuration in a TO-220AC package for easy integration. Automotive standard AEC-Q101 compliant for reliability. This Schottky diode is an excellent choice for semiconductor-related industrial, automotive, power electronics, and electronic component manufacturing applications.
Explore other semiconductor and diode products in the Electronics & Electricals category at EnvMart for your component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 10 A.
This diode supports a peak reverse repetitive voltage of 45 V.
The forward voltage drop of this model is 0.85 V, which helps improve efficiency.
It operates over a wide temperature range from -65°C to 175°C.
The peak non-repetitive forward surge current rating is up to 150 A.
This diode is housed in a 2-pin TO-220AC package, which facilitates easy mounting and heat dissipation.
Yes, this diode is AEC-Q101 automotive qualified, ensuring high reliability in automotive applications.
The dimensions of this diode are 10.29 mm in length, 4.82 mm in width, and 9.27 mm in height.
This model has a pin count of 2.
The MBR1045G is a Schottky rectifier, known for its low forward voltage drop and fast switching capabilities.
The peak reverse current for this diode is specified at 100 μA.
This Schottky diode is suitable for power rectification, voltage clamping, and freewheeling diode functions in various electronic circuits.
