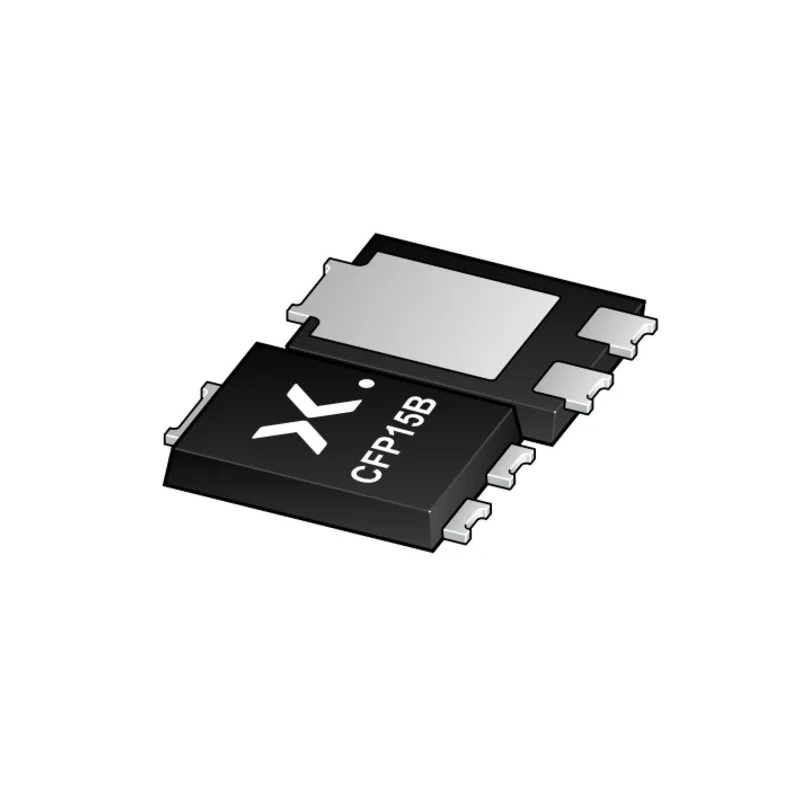

Nexperia 200 V 2 A Dual Common Cathode Rectifier & Schottky Diode Surface Mount CFP15B PNE20040CPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Model | PNE20040CPE-QZ |
| Mount Type | Surface |
| Series | PNE20040CPE-Q |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC60134, AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Dual Common Cathode |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Surface mount CFP15B package ensures low inductance and compact design.
- Maximum continuous forward current of 2 A per diode.
- Peak reverse repetitive voltage rated at 200 V.
- Advanced planar technology with clip-bond design for high power capability.
- Low forward voltage drop of 980 mV for efficient performance.
- Hyperfast switching with peak reverse recovery time of 25 ns.
- Wide operating temperature range from -55°C to 175°C.
- Peak non-repetitive forward surge current of up to 100 A.
Product Description
Nexperia PNE20040CPE-QZ is a high power density dual common cathode rectifier and Schottky diode designed for surface mount applications. With a robust CFP15B (SOT1289B) plastic package, it offers high efficiency due to its low forward voltage drop and planar die design. This component supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 200 V, making it suitable for general-purpose rectification and power management in electronic circuits.
The diode configuration features dual common cathode design with a 3-pin layout, enabling efficient current flow with minimal losses. It operates effectively across a wide temperature range from -55°C to 175°C, suitable for harsh industrial and automotive environments. The device delivers ultra-fast switching performance with a peak reverse recovery time of 25 ns, ideal for applications requiring high-speed rectification.
It boasts low inductance and power flat lead surface mount plastic packaging, facilitating improved heat dissipation and durability through clip-bond technology. This design enables enhanced high-power capability, supporting peak non-repetitive surge currents of up to 100 A. The diode also includes Pt doped lifetime control for enhanced reliability.
Typical applications include solenoid control, piezo injector circuits, freewheeling diode configurations, and various electronic and automotive power supply systems. Compliance with IEC60134 and AEC-Q101 standards affirms its suitability for automotive and industrial use.
Package details include the CFP15B surface mount package with a height of approximately 0.95 mm, providing a compact footprint on PCBs. This product is designed to enhance efficiency and reliability in electronics manufacturing and repair projects.
Surface mount CFP15B package ensures low inductance and compact design. Maximum continuous forward current of 2 A per diode. Peak reverse repetitive voltage rated at 200 V. Advanced planar technology with clip-bond design for high power capability.
Low forward voltage drop of 980 mV for efficient performance. Hyperfast switching with peak reverse recovery time of 25 ns. Wide operating temperature range from -55°C to 175°C. Peak non-repetitive forward surge current of up to 100 A.
Compliance with IEC60134 and AEC-Q101 automotive standards. Explore more semiconductor components and Schottky diodes within EnvMart's extensive electronics catalog for your industrial, automotive, and general electronic applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 2 A per diode.
This unit has a peak reverse repetitive voltage rating of 200 V.
The maximum forward voltage drop is 980 mV, which contributes to its efficient performance.
It can handle a peak non-repetitive forward surge current of up to 100 A.
The diode operates effectively across a wide temperature range from -55°C to 175°C.
The peak reverse recovery time is 25 ns, allowing for hyperfast switching.
This model comes in a CFP15B surface mount package, which ensures low inductance and a compact design.
It features a 3-pin layout, designed for efficient current flow with minimal losses.
It complies with IEC60134 and AEC-Q101 standards, affirming its suitability for automotive and industrial applications.
The diode configuration is a dual common cathode design.
The clip-bond design enhances high power capability and improves heat dissipation.
Typical applications include solenoid control, piezo injector circuits, and freewheeling diode configurations.
