onsemi Schottky Diode 2-Pin DO-214AA 100 V 2 A MBRS1100T3G

Free Delivery in India | Lowest Global Shipping Charges

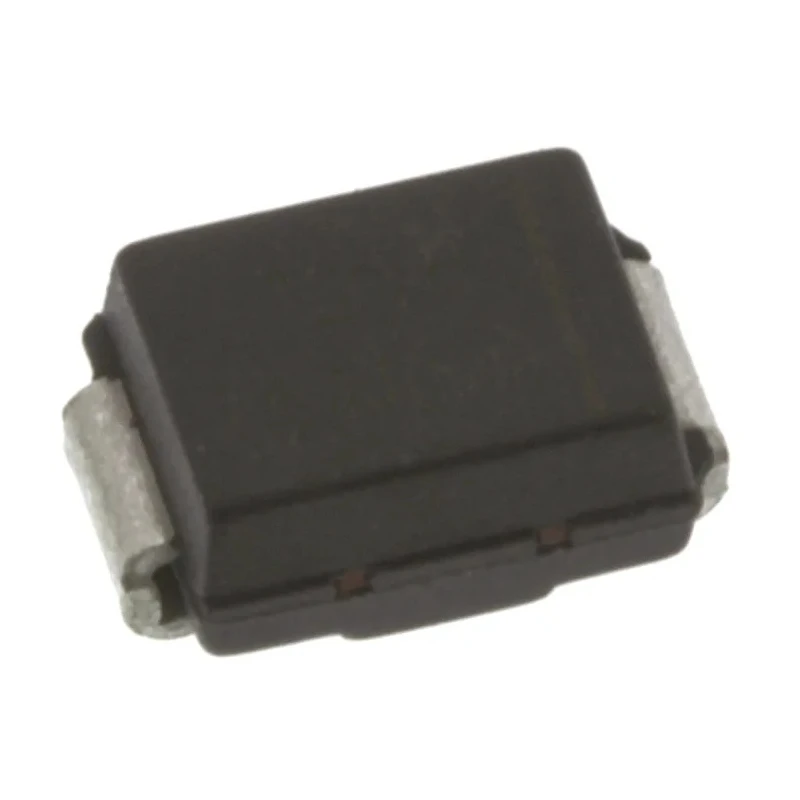

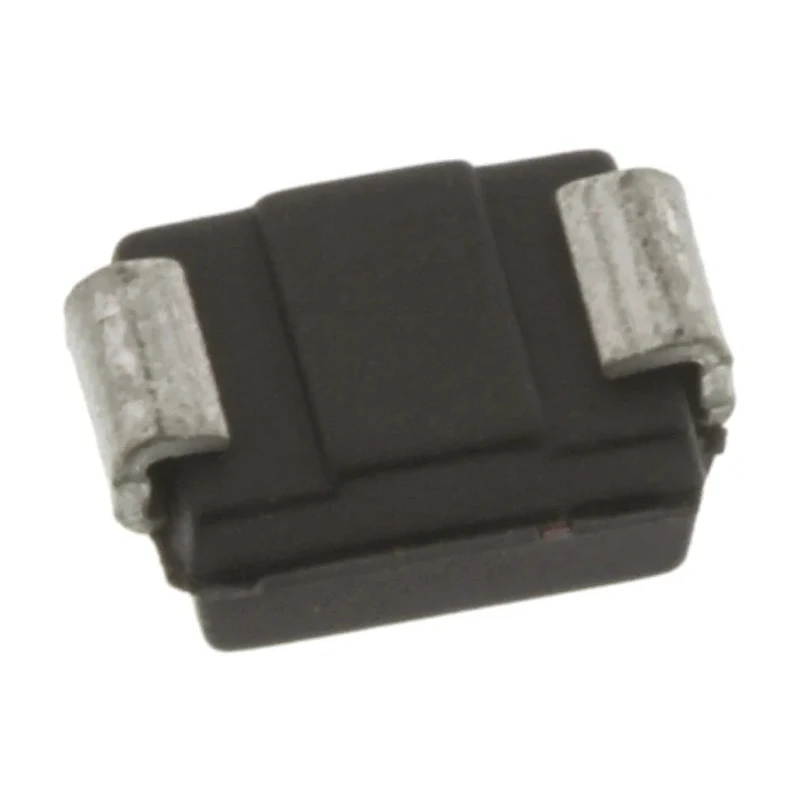

onsemi Schottky Diode 2-Pin DO-214AA 100 V 2 A MBRS1100T3G

Name: onsemi Schottky Diode 2-Pin DO-214AA 100 V 2 A MBRS1100T3G
Brand: onsemi
SKU: 196948
Price: 0.54 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.13mm
Length	4.32mm
Model	MBRS1100T3G
Width	3.56mm
Mount Type	Surface
Series	MBRS1100
Maximum Operating Temperature	175°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	750mV
Schottky barrier diode,MBRS1100 1A 100VBrand	ON Semiconductor
Vishay 100V 1A, Schottky Diode, 2-Pin DO-214AA MBRS1100Brand	Vishay

Key Features

This diode features a low forward voltage drop of 750 mV for efficient power management.
It supports a peak non-repetitive forward surge current of 50 A suitable for transient conditions.
Designed with a compact DO-214AA surface mount package for space-constrained circuits.
Operates reliably within a temperature range of -65°C to 175°C for harsh environments.
Complies with automotive standard AEC-Q101 indicating quality assurance for automotive uses.
Its Schottky barrier design ensures fast switching speed for high-frequency applications.
Package dimensions are 4.32 mm length, 3.56 mm width, and 2.13 mm height.

Product Description

onsemi MBRS1100T3G is a Schottky diode designed with a 2-pin DO-214AA surface mount package, capable of handling a maximum continuous forward current of 2 A and peak reverse repetitive voltage of 100 V. This diode incorporates a Schottky barrier metal to reduce forward voltage drop and reverse leakage current, making it ideal for efficient power rectification and protection applications.

The device features a maximum forward voltage of 750 mV and a peak non-repetitive forward surge current of 50 A, ensuring robustness against transient surges. With an operating temperature range from -65°C to 175°C, it suits demanding industrial, automotive, and electronic circuit environments.

Compact in size with dimensions of 4.32 mm length, 3.56 mm width, and 2.13 mm height, the MBRS1100T3G is designed for space-efficient automated board assembly in surface mount technology (SMT).

This diode meets the rigorous AEC-Q101 automotive qualification standards, underlining its reliability for automotive and industrial systems. The epoxy moulded case and lightweight package promote durability and ease of integration.

Low forward voltage drop contributes to reduced energy loss. High surge current rating protects circuits from damage during power spikes. Surface mount design supports high-density PCB layouts. Wide temperature range supports diverse operating environments.

Automotive qualification ensures high reliability. Compact form factor simplifies integration into complex assemblies.

Typical applications include high-frequency rectification, freewheeling diodes for motors, polarity protection, and general purpose low voltage power rectification in automotive, industrial, and consumer electronics.
