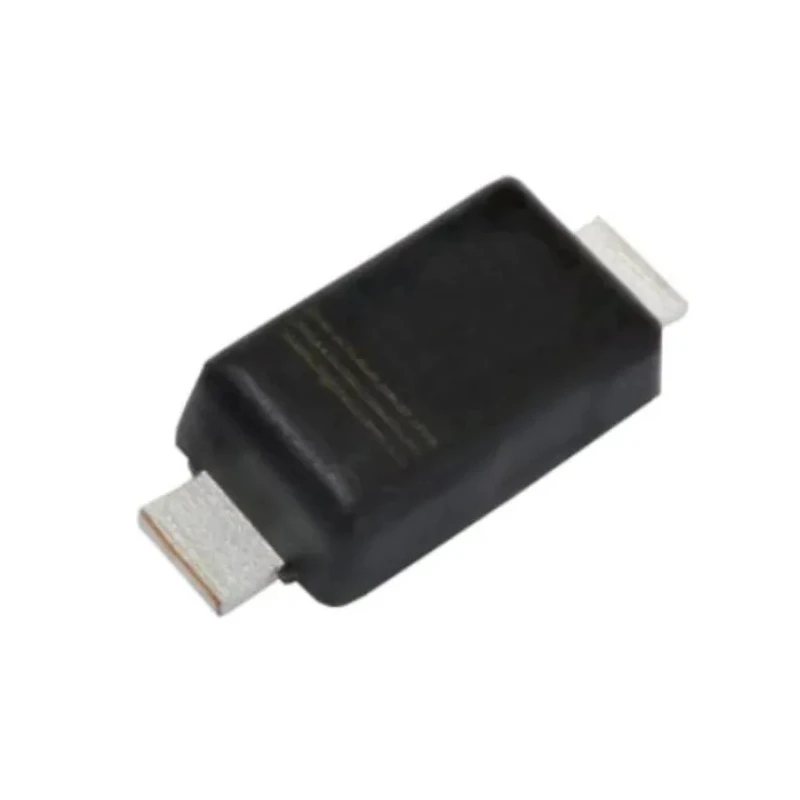

Vishay 1-Element Uni-Directional ESD Protection Diode 1000W, 2-Pin DO-219AB SMF5V0A-E3-08
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 2.9mm |
| Model | SMF5V0A-E3-08 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 1000W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 21.7A |
| Maximum Reverse Leakage Current | 400μA |
Key Features
- Single diode configuration with uni-directional ESD protection.
- Peak pulse power dissipation rating of 1000 watts for transient voltage suppression.
- Minimum breakdown voltage of 6.4 volts ensuring robust voltage protection.
- Maximum reverse stand-off voltage rated at 5 volts.
- Clamping voltage of 9.2 volts to limit voltage spikes effectively.
- Temperature operating range from -55°C to 150°C for wide environmental robustness.
- Low maximum reverse leakage current of 400 microamperes to minimize power loss.
- Complies with automotive standard AEC-Q101 for automotive applications.
Product Description
Vishay SMF5V0A-E3-08 is a single-element, uni-directional ESD protection diode designed for surface mount applications. It provides robust protection against electrostatic discharge with a peak pulse power dissipation of 1000 watts in a compact 2-pin DO-219AB package. Featuring a minimum breakdown voltage of 6.4 V and a clamping voltage of 9.2 V, this diode limits voltage spikes effectively to protect sensitive electronic components.
The diode supports an operating temperature range from -55°C up to 150°C, ensuring reliable performance across harsh industrial environments including automotive and industrial electronics. Its low maximum reverse leakage current of 400 μA improves energy efficiency while maintaining high protection effectiveness. Compliant with the AEC-Q101 automotive standard, this diode is suitable for automotive safety and industrial transient voltage suppression applications.
The compact surface-mounted package dimensions of 2.9 mm length by 1.9 mm width and 1.08 mm height enable high-density circuit board designs with minimal space requirements. The maximum peak pulse current rating of 21.7 A allows the diode to handle significant transient events safely.
Single element diode with uni-directional ESD protection. Peak pulse power dissipation rating of 1000 W for transient voltage suppression. Breakdown voltage rating of 6.4 V ensures robust voltage protection. Low leakage current minimizes power loss.
Wide operating temperature range: -55°C to 150°C. AEC-Q101 automotive standard compliant for automotive applications. Compact surface mount DO-219AB package. Suitable for industrial, automotive, and consumer electronics protection.
This Vishay SMF series diode is ideal for protecting electronic circuits from damaging ESD and transient overvoltage events in various industrial and automotive electrical applications. Browse EnvMart for more Vishay TVS diode options and related semiconductor products to suit your design needs.
Explore more products in our TVS Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak pulse power dissipation rating of 1000 watts, making it suitable for transient voltage suppression applications.
It features a minimum breakdown voltage of 6.4 volts, ensuring robust voltage protection for sensitive components.
The clamping voltage is 9.2 volts, which effectively limits voltage spikes during transient events.
This diode operates within a temperature range from -55°C to 150°C, making it suitable for a variety of environmental conditions.
The package dimensions are 2.9 mm in length, 1.9 mm in width, and 1.08 mm in height, allowing for compact circuit designs.
It complies with the AEC-Q101 automotive standard, making it suitable for automotive applications.
This model features a single element configuration, providing uni-directional ESD protection.
The maximum peak pulse current rating is 21.7 amperes, allowing the diode to handle significant transient events safely.
It utilizes surface mount technology, which is ideal for high-density circuit board designs.
This diode is suitable for protecting electronic circuits from ESD and transient overvoltage events in industrial and automotive applications.
