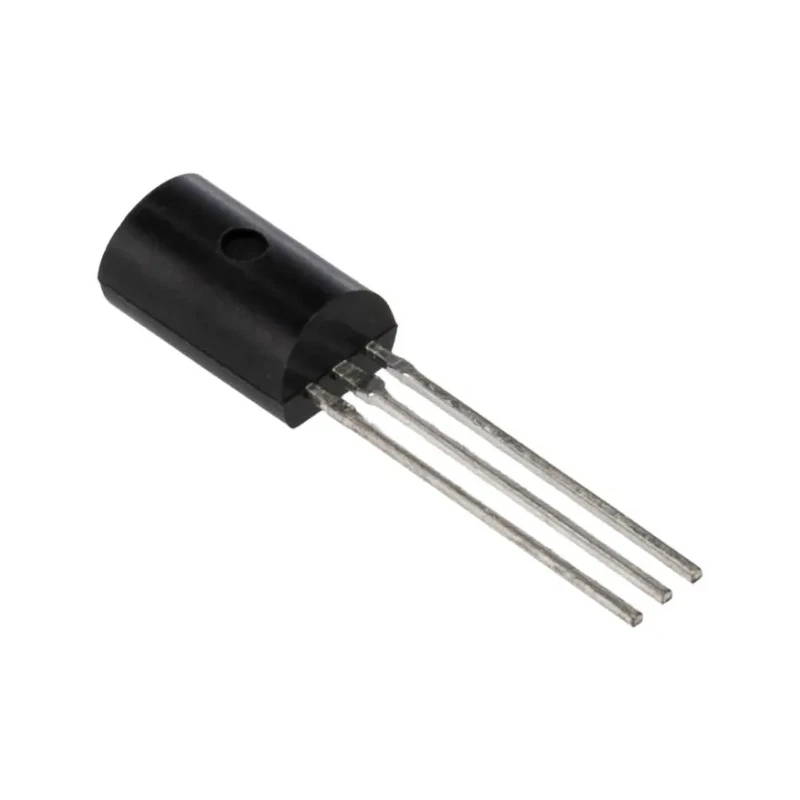

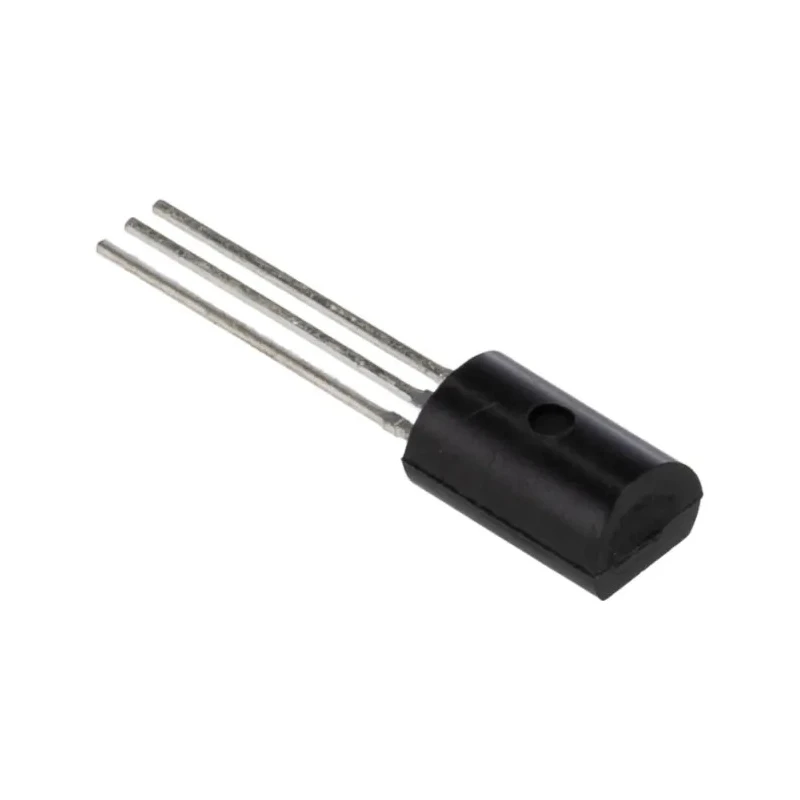

onsemi Negative Voltage Regulator TO-92 3-Pin 6mA Quiescent Current MC79L05ACPG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator -30V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC79L05ACPG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC79LxxA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Negative |
| Maximum Input Voltage | -30V |
| Quiescent Current | 6mA |
| Minimum Input Voltage | -6.7V |
| Pin Count | 3 |
Key Features
- Operates with input voltages from -6.7V to -30V.
- Provides a fixed output voltage of -5V.
- Designed for through hole mounting in a compact TO-92 package.
- Features thermal overload and short circuit current protection.
- Maximum operating temperature is 125°C for robust industrial use.
- Ideal for applications needing stable negative voltage regulation with up to 100mA current.
- Pin count of 3 supports standard regulator connections.
- Series MC79LxxA ensures compatibility with related voltage regulators in the family.
Product Description
onsemi MC79L05ACPG is a high-quality negative voltage linear regulator designed for industrial and electronic applications requiring precise negative voltage regulation. Packaged in a compact TO-92 3-pin through-hole mount, it provides a fixed output voltage of -5V with a quiescent current of 6mA, ensuring efficient power management in electronic circuits.
This regulator supports an input voltage range from -6.7V to -30V and offers robust protection features including internal short circuit current limiting and thermal overload protection, enhancing device reliability in demanding environments. The device is rated for a maximum operating temperature of 125°C, making it suitable for harsh industrial, automotive (non-automotive standard compliant), and laboratory applications.
The compact dimensions (5.2mm length, 5.33mm height, 4.19mm width) allow for easy integration into PCB designs where space is limited. Its 3-pin configuration simplifies connectivity in classic regulator circuits, providing a trusted solution for negative voltage supply stabilization.
MC79L05ACPG is part of the MC79LxxA series by onsemi, known for providing fixed negative voltage outputs with currents up to 100mA. Typical uses include on-card voltage regulation, powering negative voltage rails in analog and digital circuits, and various other low current electronic applications where regulated negative voltage is essential.
Operates with input voltages from -6.7V to -30V. Provides a fixed output voltage of -5V. Designed for through hole mounting in a compact TO-92 package. Features thermal overload and short circuit current protection. Maximum operating temperature is 125°C for robust industrial use.
Ideal for applications needing stable negative voltage regulation with up to 100mA current. Pin count of 3 supports standard regulator connections. Compact dimensions enable versatile PCB integration.
This Voltage Regulator is widely used in industrial electronics, power management, automotive auxiliary circuits, laboratory instruments, and other applications requiring a reliable fixed negative voltage supply.
Browse EnvMart's comprehensive selection of electronic components and power management ICs to find matching products and accessories for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with input voltages ranging from -6.7V to -30V.
It provides a fixed output voltage of -5V.
The maximum operating temperature is 125°C, making it suitable for robust industrial applications.
The quiescent current for this model is 6mA.
The dimensions of the TO-92 package are 5.2mm in length, 5.33mm in height, and 4.19mm in width.
It is designed for through-hole mounting.
This model features thermal overload protection and short circuit current limiting for enhanced reliability.
It can provide up to 100mA of current.
It is part of the MC79LxxA series by onsemi.
It is suitable for industrial electronics, automotive auxiliary circuits, and laboratory instruments requiring stable negative voltage regulation.
This voltage regulator has a pin count of 3, supporting standard regulator connections.
The output voltage is negative, as indicated by its design as a negative voltage regulator.
