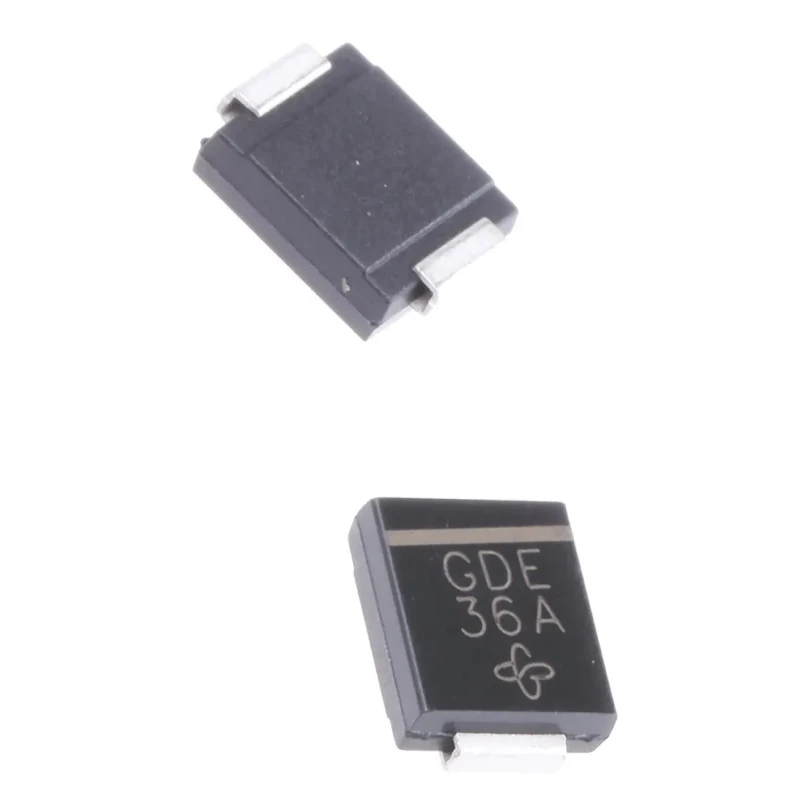

Vishay Uni-Directional 1-Element Surface Mount TRANSZORB TVS Diode 1.5kW 2-Pin SMC SMCJ5.0A-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ5.0A-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 163A |
| Maximum Reverse Leakage Current | 1mA |
| Vishay SMCJ5.0A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214ABBrand | Vishay |
| SMT unidirectional transil diodeSMCJ5.0ABrand | Vishay |
Key Features
- Single element diode with uni-directional configuration for circuit protection.
- Peak pulse power dissipation of 1.5 kW ensures high energy absorption capability.
- Surface mount package type SMC with 2 pins for easy PCB installation.
- Clamping voltage rated at 9.2 V providing reliable voltage spike suppression.
- Operates in temperature range from -55°C to 150°C for robust performance.
- Minimum breakdown voltage is 6.4 V with maximum reverse stand-off voltage of 5 V.
- Maximum peak pulse current is 163 A suitable for transient events.
- Complies with automotive standard AEC-Q101 ensuring quality for automotive applications.
Product Description
Vishay SMCJ5.0A-E3/57T is a uni-directional 1-element Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronic equipment from transient voltage spikes and electrostatic discharge. This surface-mount diode in SMC package offers a peak pulse power dissipation of 1.5 kW, enabling it to absorb high energy transients effectively.
With a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V, the diode clamps voltage spikes to a safe 9.2 V clamping voltage, protecting downstream components in circuits. It supports a maximum peak pulse current of 163 A, making it suitable for quick transient events in automotive, industrial, and consumer electronic applications.
The device operates over a broad temperature range from -55°C to 150°C, ensuring reliable performance in harsh environments. Its compact footprint with dimensions of 7.11 mm in length, 6.22 mm width, and 2.42 mm height allows for efficient PCB layout and space saving.
Designed to meet automotive standard AEC-Q101, this diode is ideal for advanced automotive electronics requiring quality transient suppression. The single element and uni-directional design enhances protection against voltage surges and electrostatic discharge (ESD).
Single 1-element configuration for targeted transient voltage suppression. High peak pulse power rating of 1.5 kW suitable for heavy transient events. Compact surface mount SMC package for easy PCB integration. Clamping voltage of 9.2 V ensures effective voltage spike protection.
Wide temperature range operation from -55°C to 150°C. Compliance with automotive AEC-Q101 standard for automotive reliability. Compact dimensions of 7.11 x 6.22 x 2.42 mm for space efficiency. Offers ESD protection to enhance electronic device lifespan.
Suitable for use in industrial controls, automotive electronics, power supplies, and consumer electronic devices, the Vishay SMCJ5.0A-E3/57T provides a robust solution for transient voltage protection requirements.
Explore other Vishay electronic components and TVS Diodes for diverse circuit protection applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMCJ5.0A-E3/57T is 1.5 kW, enabling it to absorb high energy transients effectively.
The clamping voltage of this TVS diode is rated at 9.2 V, providing reliable voltage spike suppression.
It operates within a temperature range from -55°C to 150°C, ensuring reliable performance in harsh environments.
The maximum peak pulse current for the Vishay SMCJ5.0A-E3/57T is 163 A, making it suitable for transient events.
This model has dimensions of 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The minimum breakdown voltage is 6.4 V, which is critical for its operation in voltage suppression.
It supports surface mounting, making it easy to integrate into PCB layouts.
This model complies with the automotive standard AEC-Q101, ensuring quality for automotive applications.
The Vishay SMCJ5.0A-E3/57T features a single element configuration for targeted transient voltage suppression.
The maximum reverse stand-off voltage is rated at 5 V, which is important for its protective function.
It is suitable for use in industrial controls, automotive electronics, power supplies, and consumer electronic devices.
The maximum reverse leakage current is 1 mA, which is relevant for its efficiency in operation.
