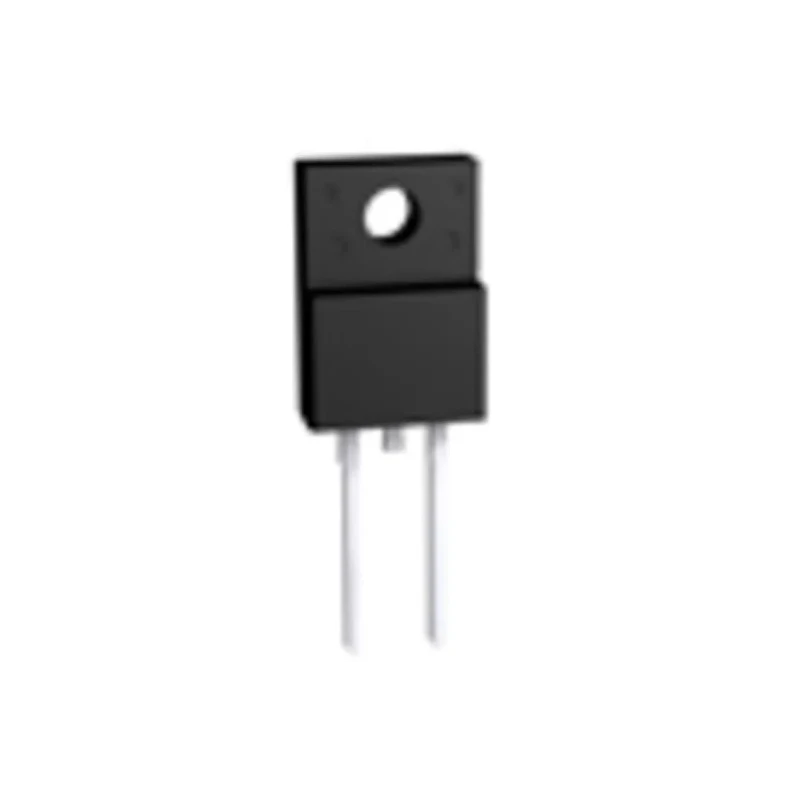

ROHM Fast Recovery Diode 600 V 20 A Through Hole 2-Pin RFUH20TF6SC9
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | ROHM |
| Height | 15mm |
| Length | 10mm |
| Model | RFUH20TF6SC9 |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 2.8V |
| Peak Reverse Recovery Time trr | 35ns |
Key Features
- Features fast recovery technology for high efficiency and reduced switching loss.
- Designed in a robust TO-220 package for reliable operation.
- Maximum continuous forward current of 20 A and peak reverse repetitive voltage of 600 V.
- Low forward voltage drop of 2.8 V and peak reverse recovery time of 35 ns.
- Maximum operating temperature of up to 150°C for high temperature applications.
- Peak non-repetitive forward surge current capability of 100 A.
- Ideal for switching power supplies and other industrial semiconductor applications.
Product Description
ROHM RFUH20TF6SC9 is a fast recovery diode rated at 600 V and 20 A, designed for through hole mounting with 2 pins. Its fast recovery characteristics and low forward voltage drop make it especially suitable for high efficiency switching power supplies, reducing switching loss and improving overall system performance.
The diode is packaged in a TO-220 case ensuring high reliability and durability, enabling it to withstand peak non-repetitive surge currents up to 100 A and operate at high temperatures up to 150°C. Its low peak reverse current of 10 μA ensures minimal leakage currents in circuits.
Technical dimensions include a length of 10 mm, width of 4.5 mm, and height of 15 mm, allowing for compact PCB layouts in industrial, electronic components, power semiconductor, and power supply applications.
This component is manufactured in the Republic of Korea and does not carry automotive specific standards or special approvals but complies with ROHS directives. Fast recovery significantly reduces switching losses during power supply operations.
Through hole mounting supports easy replacement and robust mechanical connection. High maximum continuous forward current capacity of 20 A. Low forward voltage drop of 2.8 V improves energy efficiency in circuits. Maximum operating temperature up to 150°C supports demanding environments.
Peak surge current rating of 100 A provides transient overload protection. Compact TO-220 package dimensions fit standard electronic assembly processes.
This ROHM RFUH20TF6SC9 fast recovery diode is highly suitable for industrial semiconductor applications, power supply design, and automotive electronics where efficient rectification and switching speed are critical.
Explore more semiconductor and Schottky diode products in the Electronics & Electricals category on EnvMart for your industrial and engineering needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the ROHM RFUH20TF6SC9 diode is 20 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The forward voltage drop for the RFUH20TF6SC9 is 2.8 V.
The peak reverse recovery time is 35 ns.
The maximum operating temperature for this model is 150°C.
It can handle a peak non-repetitive forward surge current of 100 A.
The dimensions are 10 mm in length, 4.5 mm in width, and 15 mm in height.
This diode is designed for through hole mounting with 2 pins.
The peak reverse current is 10 μA.
It is suitable for high efficiency switching power supplies and other industrial semiconductor applications.
This diode is manufactured in Korea.
It is classified as a fast recovery rectifier.
