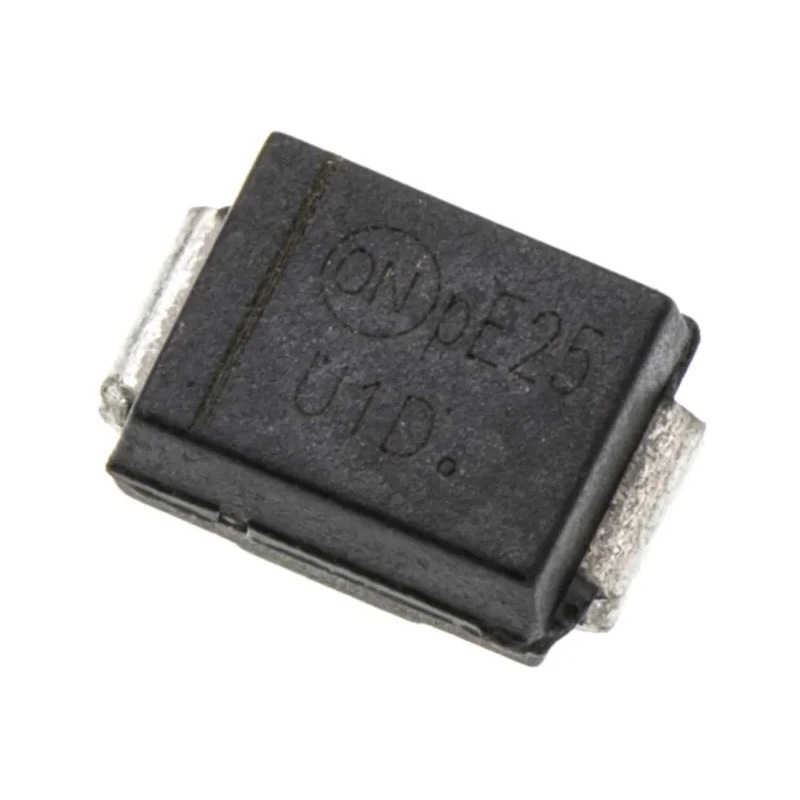

onsemi Silicon Junction Switching Diode 2 A Surface Mount DO-214AA Package MURS120T3G

The onsemi MURS120T3G is a high-quality silicon junction switching diode supplied in a surface mount DO-214AA package. It is engineered to deliver reliable rectification and switching performance in discrete semiconductor applications.

This single diode supports a maximum forward current of 2 A and a maximum peak reverse voltage rating of 200 V, making it suitable for various electronic circuits requiring moderate power handling with efficient switching capabilities.

The diode features a low maximum forward voltage drop of 875 mV, which helps reduce power dissipation during conduction, improving overall circuit efficiency. Its peak reverse recovery time of 35 nanoseconds enables fast switching, ideal for high-frequency applications.

The device operates reliably in harsh temperature environments ranging from -65°C to 175°C, ensuring durability and stability in industrial, consumer electronics, and power supply circuits. It can withstand high surge currents with a peak non-repetitive forward surge current of 40 A, providing resilience against transient overloads.

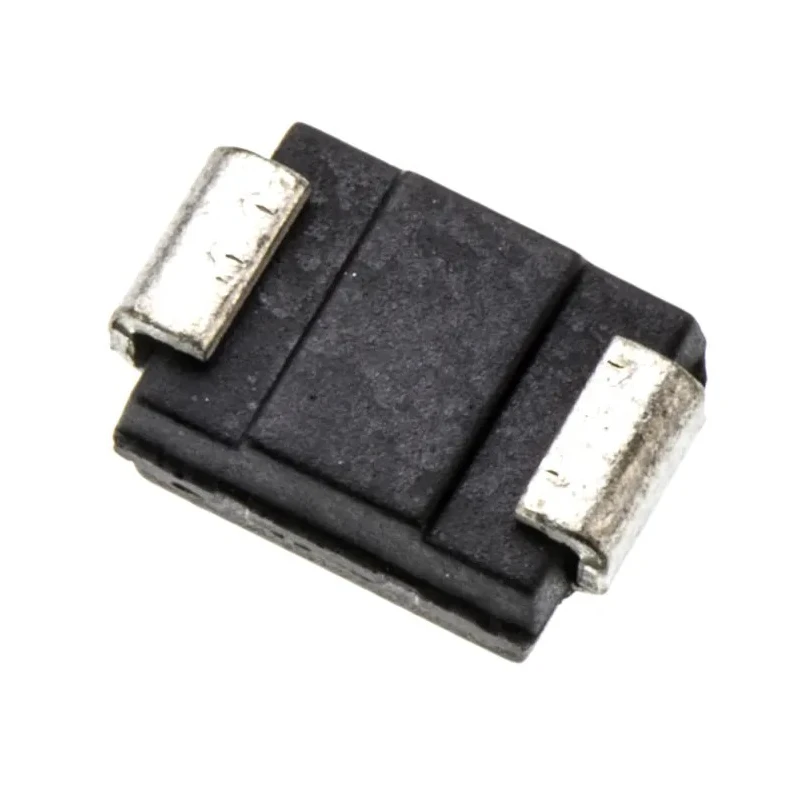

Physically, the diode's compact dimensions - 4.32 mm length, 3.56 mm width, and 2.13 mm height - allow integration into space-limited PCB layouts. While it is not automotive standard qualified, it remains a versatile component for general-purpose semiconductor switching diode applications.

Single diode configuration suitable for rectification and switching applications. Maximum forward current of 2 Amperes ensures robust current handling. Surface mount DO-214AA package enables efficient PCB assembly. Low maximum forward voltage of 875 mV minimizes power loss during operation.

Peak reverse recovery time of 35 ns allows for fast switching performance. Wide operating temperature range from -65°C to 175°C supports various environments. High peak non-repetitive forward surge current of 40 Amperes for transient robustness.

Compact dimensions - length 4.32 mm, width 3.56 mm, height 2.13 mm - for space-constrained designs. Recommended for industrial and discrete semiconductor applications requiring reliable switching. Explore more Switching Diodes from onsemi and enhance your electronic designs with trusted semiconductor components available at EnvMart.
