Broadcom DC Input 4-Channel Through Hole 16-Pin PDIP Optocoupler ACPL-847-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom DC Input 4-Channel Through Hole 16-Pin PDIP Optocoupler ACPL-847-000E

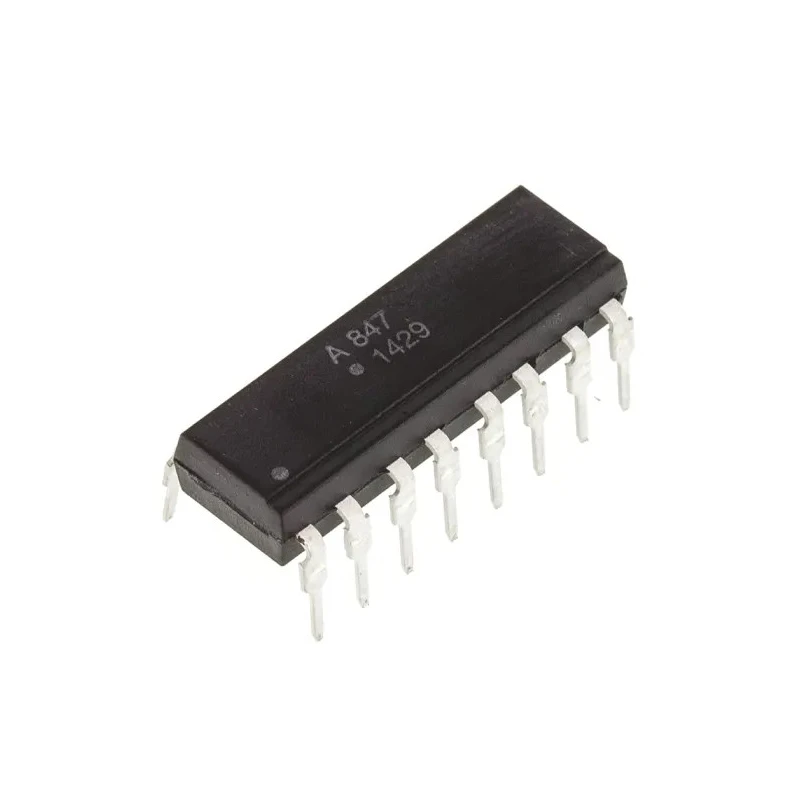

Name: Broadcom DC Input 4-Channel Through Hole 16-Pin PDIP Optocoupler ACPL-847-000E
Brand: Broadcom
SKU: 213200
Price: 1.91 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	ACPL-847-000E
Packaging	Tube
Mount Type	Through Hole
Output type	Transistor
Series	ACPL
Maximum Operating Temperature	100°C
Package Type	PDIP
Minimum Operating Temperature	-30°C
Maximum input current	50mA
Number Of Channels	4
Standards/Approvals	CSA, EN, IEC, UL
Maximum Forward Voltage	1.4V
Number of Pins	16
Input Current Type	DC
Typical Rise Time	4μs
Maximum Current Transfer Ratio	600%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	50%

Key Features

The device features a transistor output type for effective switching.
It includes 4 independent channels with 16 pins in a PDIP package.
Operates with a maximum forward voltage of 1.4V and maximum input current of 50mA DC.
Provides high isolation voltage of 5kVrms for system safety.
Supports a typical rise time of 4μs and fall time of 3μs.
Functional temperature range from -30°C to 100°C ensures reliable operation.
Complies with CSA, EN, IEC, and UL standards for quality and safety.
Packaged in a tube for secure and convenient handling.

Product Description

Broadcom ACPL-847-000E is a 4-channel phototransistor optocoupler with DC input designed for a variety of industrial and electronic applications including power sequencing and input/output interface controls.

This optocoupler provides transistor output and is constructed for through hole mounting with a 16-pin PDIP package type, making it suitable for printed circuit board integration.

It supports a maximum forward voltage of 1.4V and a maximum input current of 50mA DC, with isolation voltage rated at 5kVrms to protect sensitive components and enhance system safety.

The device operates reliably across a wide temperature range from -30°C up to 100°C, which supports its use in diverse environmental conditions common in industrial electronics. Typical switching characteristics include a rise time of 4 microseconds and a fall time of 3 microseconds, ensuring efficient performance for control signals and timing circuits.

The transistor output type facilitates robust signal transmission over the optocoupler channels. Four independent channels allow multiplexed or parallel input signal processing. The 16-pin PDIP package supports easy installation in standard electronic assemblies.

Compliance with CSA, EN, IEC, and UL standards ensures industrial safety and quality certifications. Packaged in tubes for ease of handling and protection during transportation and storage.

This optocoupler is ideal for applications in industrial automation, power supply monitoring, signal isolation in control systems, and other electronic circuits requiring reliable isolation and signal transmission.

Explore more industrial electronics components and Optocoupler models at EnvMart to meet your project requirements with trusted quality and technical support.
