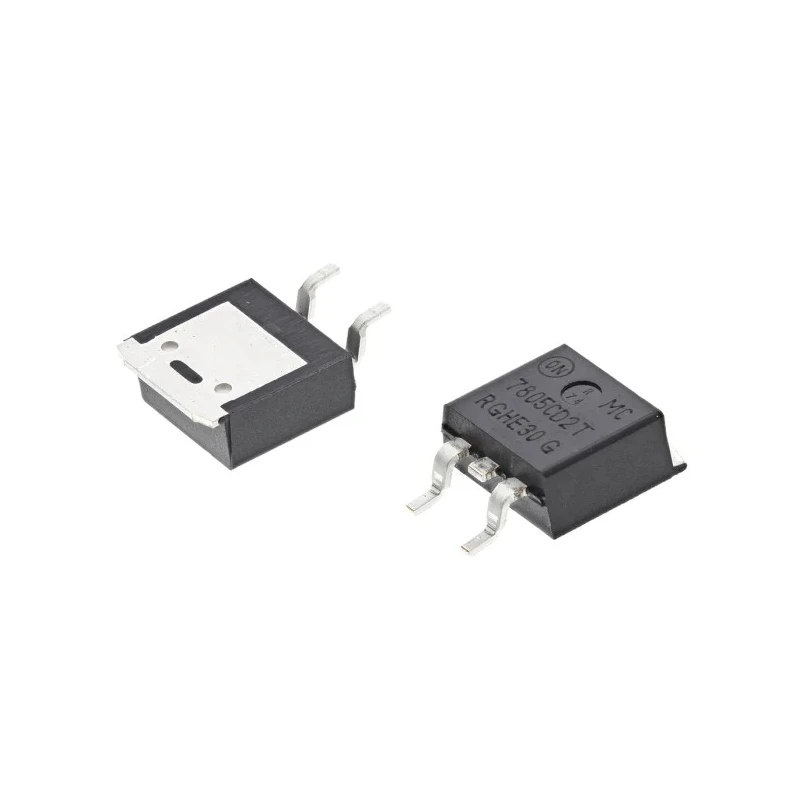

onsemi Surface Mount Positive Voltage Regulator 5V 3-Pin MC7805CD2TR4G

The onsemi MC7805CD2TR4G is a monolithic integrated positive voltage regulator designed as a fixed output 5-volt device, ideal for a wide range of applications including local and on-card regulation in electronic circuits.

This surface-mounted device features three pins and is engineered to handle input voltages from 5V up to a maximum of 35V, delivering a stable 5V output. It boasts a low quiescent current of 3.2mA for efficient power usage.

The regulator is built with internal thermal overload protection and current limiting to safeguard against potential damage caused by overheating or overcurrent conditions. This ensures enhanced reliability in electronic designs.

Its physical dimensions of 30.02mm height, 10.24mm length, and 9.35mm width make it suitable for compact PCB layouts. Furthermore, the MC7805CD2TR4G meets the stringent automotive AEC-Q100 standard, making it reliable for automotive electronics.

The device supports a maximum operating temperature of 125°C, suitable for demanding environmental conditions encountered in industrial, automotive, and consumer electronics applications.

Operates with input voltages ranging from 5V to 35V. Maintains a consistent 5V output voltage for stable performance. Quiescent current is low at 3.2mA, minimizing power loss. Includes internal safety features such as thermal overload protection and current limiting.

Compact three-pin surface mount design. Compliant with automotive standard AEC-Q100. Capable of reliable operation up to 125°C.

This Voltage Regulator is well suited for incorporation in industrial, automotive, and consumer electronic devices where stable, low-noise voltage regulation is critical. It enables engineers to design efficient circuits with minimal external components.

Explore more electronic components and power management ICs at EnvMart to find compatible solutions for your projects and production needs.
