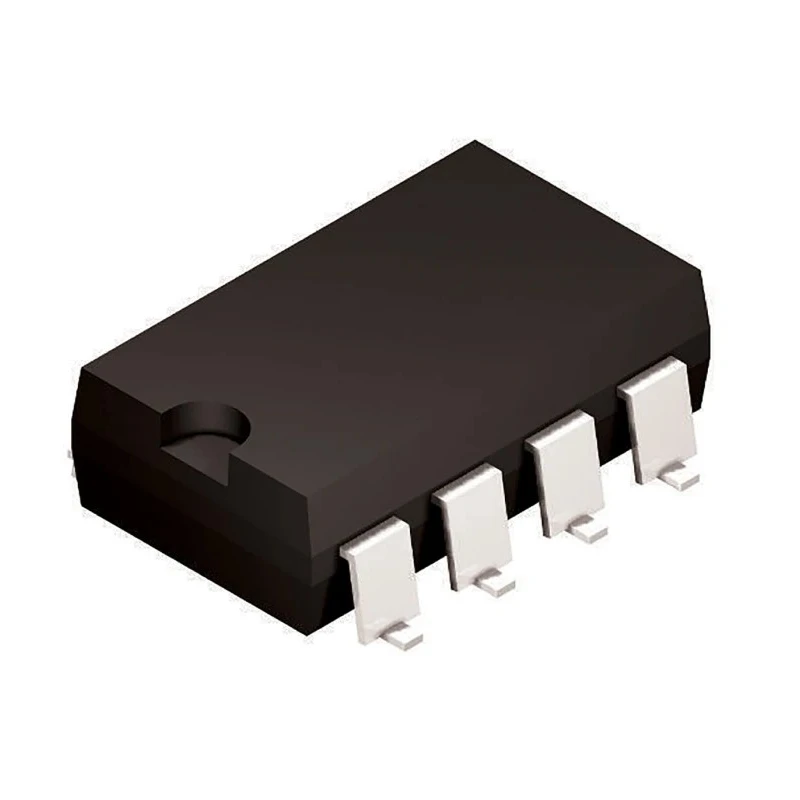

Lite-On DC Input Optocoupler Surface Mount 8-Pin DIP LTV-3150-L-S

Free Delivery in India | Lowest Global Shipping Charges

Lite-On DC Input Optocoupler Surface Mount 8-Pin DIP LTV-3150-L-S

Name: Lite-On DC Input Optocoupler Surface Mount 8-Pin DIP LTV-3150-L-S
Brand: Lite-On
SKU: 200333
Price: 0.2 USD
Availability: InStock



Category Optocoupler Brand Lite-On Condition New

Specifications

Country of Origin	India
Brand	Lite-On
Model	LTV-3150-L-S
Mount Type	Surface
Series	LTV
Maximum Operating Temperature	105°C
Package Type	DIP
Minimum Operating Temperature	0°C
Maximum input current	25mA
Number Of Channels	1
Standards/Approvals	IEC/EN/DIN EN 60747-5-5, UL/ cUL
Maximum Forward Voltage	1.8V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	500ns

Key Features

Single channel optocoupler with DC input current type.
Maximum forward voltage of 1.8 volts ensures low power loss.
Typical rise and fall times of 500 nanoseconds support fast switching.
Designed with logic output suitable for gate drive circuits.
Operates reliably within 0°C to 105°C temperature range.
Meets IEC/EN/DIN EN 60747-5-5 and UL/cUL standards for safety and reliability.
Push-pull output stage capable of driving MOSFETs and IGBTs up to 1200 volts and 50 amps.
Minimum peak output current of 0.8 amps with rail-to-rail output voltage swing.

Product Description

Lite-On LTV-3150-L-S is a DC input optocoupler designed for surface mounting in an 8-pin DIP package. It is specifically engineered for driving MOSFET and IGBT gate circuits used in motor control and power supply inverter applications. The device incorporates a push-pull output stage capable of directly driving power transistors with voltage ratings up to 1200V and current up to 50A. This optocoupler offers an isolation voltage of 5000Vrms, ensuring safety and noise immunity in industrial systems.

The optocoupler features a maximum forward input voltage of 1.8V and a maximum input current of 25mA, providing efficient signal transmission with low power dissipation. It delivers a logic output with swift switching characterized by typical rise and fall times of 500 nanoseconds, making it suitable for high-speed switching applications.

Operating temperature ranges from 0°C to 105°C enable dependable performance under varied environmental conditions. The LTV-3150-L-S complies with IEC/EN/DIN EN 60747-5-5 and UL/cUL standards, highlighting its safety and quality certifications.

Applications include motor control drives, power supply system inverters, and other industrial automation systems requiring reliable electrical isolation and fast signal transfer. The device supports rail-to-rail output voltage swing and a minimum peak output current of 0.8 amps, accommodating high-power transistor gate driving requirements.

Single channel DC input optocoupler with 8-pin DIP package. Maximum forward voltage: 1.8V for efficient input operation. Typical rise/fall times: 500ns for fast switching. Maximum input current of 25mA suitable for low power signals.

Isolation voltage: 5000Vrms ensuring electrical isolation. Compliance with IEC/EN/DIN EN 60747-5-5 and UL/cUL standards. Operational temperature range from 0°C to 105°C. Gate drive applications for MOSFET and IGBT with ratings up to 1200V/50A supported.

This Lite-On Optocoupler is an excellent solution for industrial, laboratory, and commercial applications requiring robust isolation and gate drive capabilities. Explore more electronic components and optoelectronic devices in the Electronics Components category at EnvMart.
