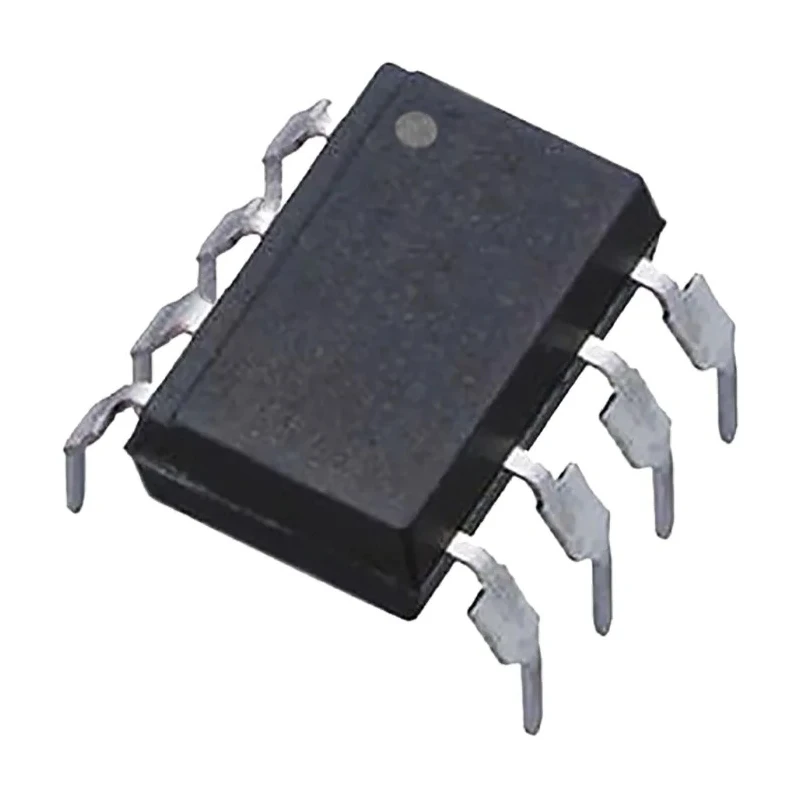

Lite-On DC Input Optocoupler Surface Mount 8-Pin DIP LTV-3150M-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lite-On |
| Model | LTV-3150M-L |
| Mount Type | Surface |
| Series | LTV-3150-L |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL/ cUL, IEC/EN/DIN EN 60747-5-5 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 500ns |
Key Features
- The device features a maximum forward voltage of 1.8 volts.
- It provides one channel with a DC input current type.
- Typical rise and fall times are 500 nanoseconds each.
- The isolation voltage rating is 5000 Vrms ensuring high electrical isolation.
- Operates reliably over a temperature range of -40°C to 105°C.
- The optocoupler includes a logic output compatible with gate drive applications.
- Complies with UL/cUL and IEC/EN/DIN EN 60747-5-5 safety standards.
- Suitable for driving MOSFETs and IGBTs up to 1200V and 50A.
Product Description
Lite-On LTV-3150M-L DC Input Optocoupler is a surface mount device featuring an 8-pin DIP package, designed primarily for electrical isolation in industrial and electronic applications.
With a maximum forward voltage of 1.8 volts and a maximum input current of 25 mA DC, this optocoupler delivers reliable isolation performance up to 5000 VRMS. It offers typical rise and fall times of 500 nanoseconds, enabling efficient switching and signal transmission.
The device includes one channel and a logic output, optimized for driving semiconductor devices such as MOSFETs and IGBTs in gate drive circuits. It can directly drive devices with voltage ratings up to 1200 volts and current up to 50 amperes, making it ideal for power supply systems and motor control inverters.
Designed to operate within a wide temperature range from -40°C to 105°C, this optocoupler meets rigorous UL/ cUL and IEC/EN/DIN EN 60747-5-5 standards, ensuring safety and reliability in demanding industrial environments.
This product is suitable for industrial automation, power electronics, and laboratory applications where high-voltage isolation and fast response times are required. The surface mount 8-pin DIP package facilitates easy assembly in automated production lines.
The device features a maximum forward voltage of 1.8 volts. One channel with DC input current type provides stable signal isolation. Typical rise and fall times of 500 nanoseconds support efficient switching. Provides 5000 Vrms isolation voltage to protect sensitive circuits.
Wide operating temperature range ensures performance in harsh conditions. Logic output suitable for MOSFET and IGBT gate drive applications. Compliance with UL/ cUL and IEC/EN/DIN EN safety standards guarantees quality. Capable of driving devices up to 1200V and 50A ratings.
Perfect for industrial automation, power supply inverters, and motor controls. Packaged for ready insertion, aiding production efficiency in automated lines. Explore more electronic components and Optocoupler solutions in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.8 volts.
It has an isolation voltage rating of 5000 Vrms, ensuring high electrical isolation.
This model operates reliably over a temperature range of -40°C to 105°C.
The device features one channel with a DC input current type.
The typical rise and fall times are both 500 nanoseconds.
The maximum input current for this model is 25 mA DC.
It complies with UL/cUL and IEC/EN/DIN EN 60747-5-5 safety standards.
The optocoupler comes in a DIP package type with 8 pins.
This model is suitable for driving MOSFETs and IGBTs in gate drive applications, as well as for industrial automation and power supply systems.
It can drive devices with voltage ratings up to 1200 volts and current up to 50 amperes.
This optocoupler features a surface mount design.
It belongs to the LTV-3150-L series.
