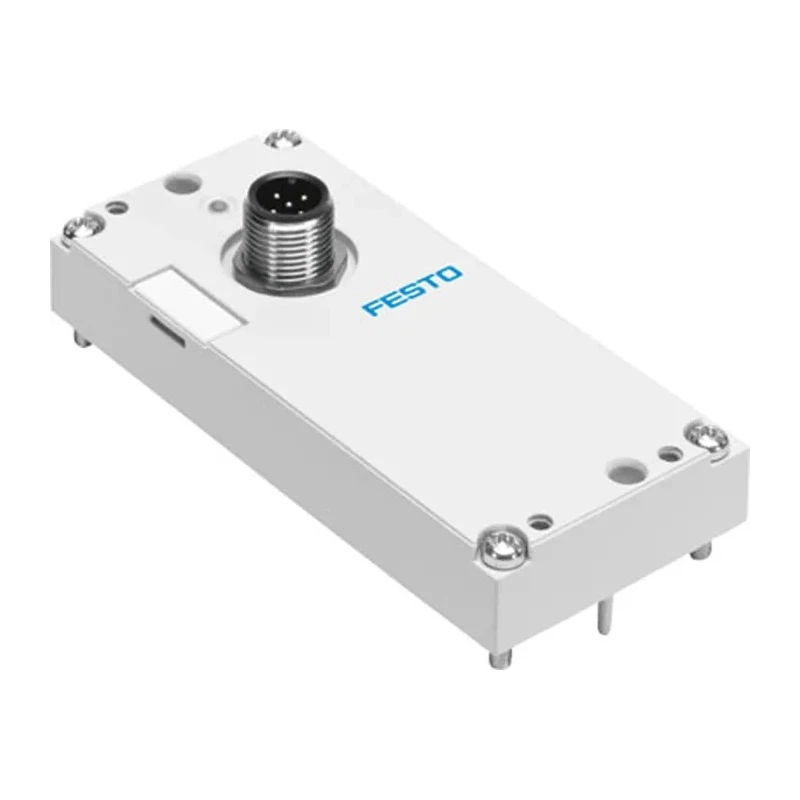

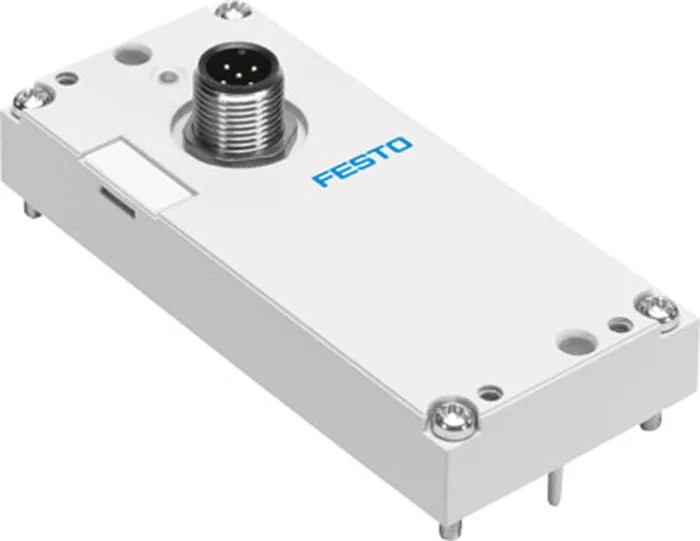

Festo Pneumatic Logic Controller Serial Interface 24V LED Display 1 Bar VAEM-L1-S-8-PT

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Logic Controller Serial Interface 24V LED Display 1 Bar VAEM-L1-S-8-PT

Name: Festo Pneumatic Logic Controller Serial Interface 24V LED Display 1 Bar VAEM-L1-S-8-PT
Brand: FESTO
SKU: 145483
Price: 152.03 USD
Availability: InStock



Category Pneumatic Logic Controllers Brand FESTO Condition New

Specifications

Country of Origin	Germany
Voltage	24V
Display Type	LED
Brand	Festo
Maximum Operating Pressure	1 bar
Model	VAEM-L1-S-8-PT
Connection Type	5-Pin M12 Connector
Series	VAEM
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-5°C
Standards/Approvals	c UL us-Recognised (OL), RCM, c CSA us (OL), CE, In accordance with EU EMC Directive
Minimum Operating Pressure	-0.9bar
Suitable Medias	Compressed Air

Key Features

Designed for pressurized air systems to control valve operations.
Connects directly to Fieldbus or via cable to IO-Link master.
Each pin actuates a solenoid coil enabling multiple valve functions.
Operates with positive or negative logic for flexible valve switching.
Robust metal housing for heavy-duty industrial use.
Wide temperature range from -5°C to 50°C for harsh environments.
Lightweight design at only 49g for easy integration and minimal system load.
Includes pre-drilled holes and screws for quick installation.

Product Description

Festo VAEM-L1-S-8-PT pneumatic logic controller serial interface is a high-performance device designed for pneumatic systems operating with compressed air. Rated for 24V operation with LED display and a maximum operating pressure of 1 bar, it controls valve functions in pressurized air systems by managing stopping, pausing, and starting operations via serial communication.

The interface can connect directly to a Fieldbus or be linked to an IO-Link master using a 5-pin M12 connector, offering versatile integration options. Each pin controls one solenoid coil, allowing multiple valve functions to be actuated using both positive and negative logic strategies.

Constructed with sturdy metal components and housing, this controller is suitable for heavy-duty industrial applications. Its wide temperature tolerance from -5°C to 50°C ensures reliable operation in harsh ambient conditions commonly found in industrial manufacturing, automotive assembly lines, aerospace, and defense systems.

Weighing only 49 grams, the compact and lightweight design minimizes system strain and facilitates easy handling during installation. Pre-drilled mounting holes and included screws further simplify the setup process.

This pneumatic logic controller is ideal for environments with high dust and moisture levels, as it works with compressed air and is resistant to damage from these elements. Additionally, it reduces the risk of fire or explosion hazards due to the absence of combustible materials.

Designed for pressurized air systems to control valve operations. Connects directly to Fieldbus or IO-Link master via 5-pin M12 connector. Each pin actuates solenoid coil enabling multiple valve functions. Operates with positive or negative logic for versatile valve switching.

Robust metal housing suitable for heavy-duty industrial applications. Wide operating temperature range from -5°C to 50°C. Lightweight at 49g for minimal system strain. Pre-drilled holes and screws included for quick installation.

Ideal for industrial manufacturing, automotive, aerospace, and defense applications. Effective operation in dusty and moist environments. Explore more Pneumatic Logic Controllers and related automation components in EnvMart's comprehensive Industrial Tools & Equipment category.
