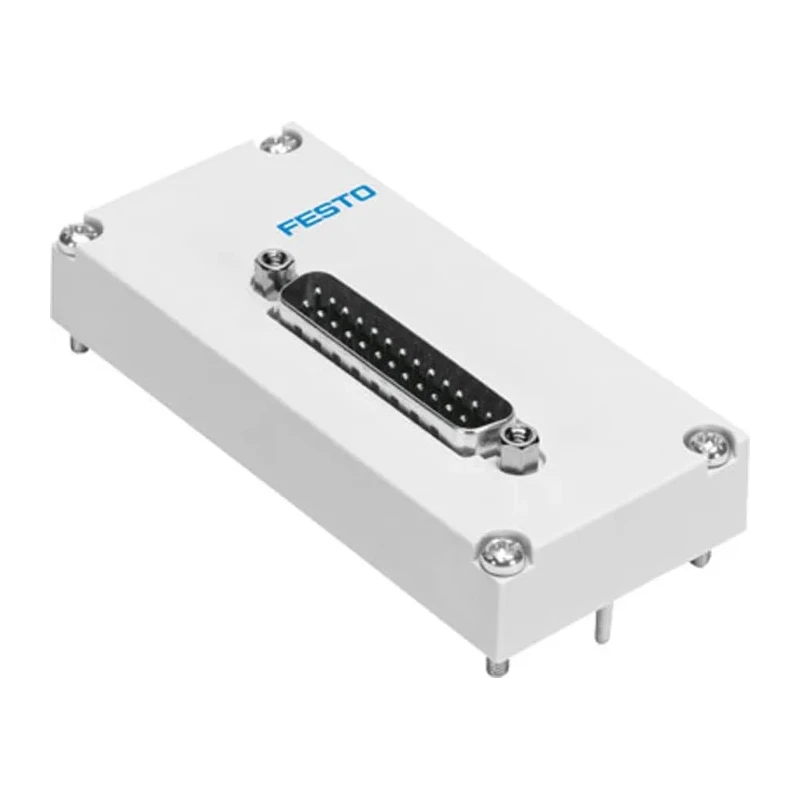

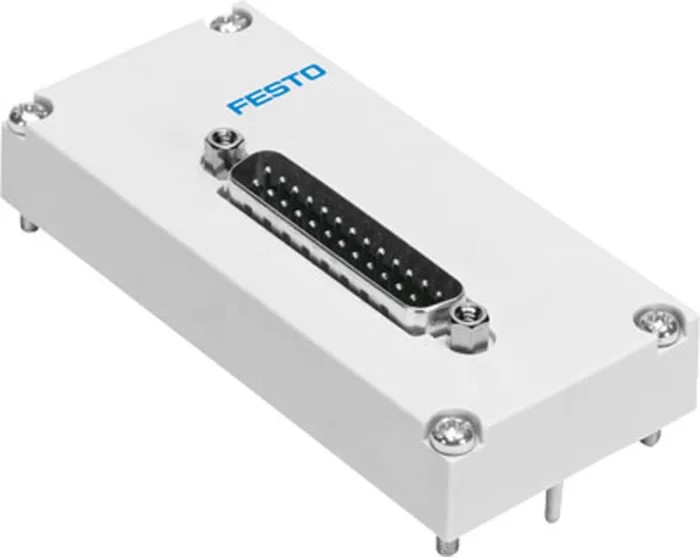

Festo VAEM Series 1 Bar Serial Interface 24V LED Display VAEM-L1-S-M1-44

Free Delivery in India | Lowest Global Shipping Charges

Festo VAEM Series 1 Bar Serial Interface 24V LED Display VAEM-L1-S-M1-44

Name: Festo VAEM Series 1 Bar Serial Interface 24V LED Display VAEM-L1-S-M1-44
Brand: FESTO
SKU: 206700
Price: 76.17 USD
Availability: InStock



Category Pneumatic Logic Controllers Brand FESTO Condition New

Specifications

Country of Origin	Bulgaria
Voltage	24V
Display Type	LED
Brand	Festo
Maximum Operating Pressure	1 bar
Model	VAEM-L1-S-M1-44
Connection Type	44-Pin D-Sub Plug
Series	VAEM
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-5°C
Standards/Approvals	In accordance with EU EMC Directive, c CSA us (OL), RCM, CE, c UL us-Recognised (OL)
Minimum Operating Pressure	-0.9bar
Suitable Medias	Compressed Air

Key Features

Standardized interface supports direct connection to fieldbus and IO-Link master via CTEU bus node or cable.
44-pin D-Sub plug connection with each pin controlling one solenoid coil.
Supports 24 valve positions addressing 48 valve functions using positive or negative logic.
Operates over temperature range from -5°C to 60°C suitable for industrial environments.
Complies with EU EMC Directive, RCM, CE, CSA, and UL recognized standards.
Compatible with CANopen, DeviceNet, PROFIBUS, CC-LINK, and EtherCAT protocols via bus nodes.
Manifold electrical interface supplied through M12 plug connector for communication and power.
Designed for controlling compressed air media in pneumatic systems.

Product Description

Festo VAEM-L1-S-M1-44 is a robust pneumatic serial interface featuring a 1 bar maximum operating pressure and LED display, designed for precise pneumatic logic control in industrial settings. Operating at 24V, it facilitates integration with automated pneumatic systems.

This serial interface uses a standardized electrical manifold interface with a multi-pin plug connection, featuring a 44-pin D-Sub plug. Each pin is dedicated to actuating exactly one solenoid coil, enabling control over 24 valve positions and 48 valve functions using positive or negative logic modalities.

The device supports connection to fieldbus systems via mounting the bus node CTEU or directly to an IO-Link master through cable interfacing. It is compatible with multiple industrial communication protocols such as CANopen, DeviceNet, PROFIBUS, CC-LINK, and EtherCAT when used with the related CTEU bus node.

Designed to handle compressed air media, it has an operating temperature range from -5°C to 60°C, making it suitable for various industrial, manufacturing, and automation environments. It complies with multiple standards including the EU EMC Directive, RCM, CE, CSA (c CSA us), and UL recognized certifications, ensuring safety and performance reliability.

The electrical supply and communication transmission occur via an M12 plug connector, streamlining manifold sub-base connectivity with end-plates and modular pneumatic systems. Standardized manifold electrical interface with 44-pin D-Sub plug.

Supports 24 valve positions and addresses 48 valve functions. Positive and negative logic valve switching. Compatible with multiple industrial communication protocols. Operating temperature from -5°C to 60°C. Complies with EU EMC, RCM, CE, CSA, and UL standards.

M12 plug connector for power and communication.

Ideal for industrial automation, pneumatic system control, water treatment, and manufacturing process control applications, the Festo VAEM series ensures efficient and reliable valve actuation for complex pneumatic logic operations.
