Crouzet Pneumatic Timer, Adjustable Positive Time Delay, Operating Pressure 2 to 8 bar, Temperature Range -5°C to 81503720
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Maximum Operating Pressure | 8 bar |
| Model | 81503720 |
| Depth | 7mm |
| Mount Type | DIN Rail |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | NFE 49100 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Minimum Operating Pressure | 2bar |
| Crouzet Time Delay Module 8 bar maxBrand | Crouzet |
| Crouzet Pneumatic Timer 8 bar maxBrand | Crouzet |
Key Features
- The timer features an adjustable counting range from 0.1 seconds to 30 seconds.
- Equipped with a 2.7 mm orifice diameter ensuring controlled flow rates.
- Provides a flow rate of 170 NL/min at 6 bar operating pressure.
- Designed for DIN rail mounting for easy installation in control panels.
- Durable mechanical operation life exceeding 10 million cycles.
- Operates effectively within temperature limits of -5°C to 50°C.
- Includes operating pressure limits between 2 bar minimum and 8 bar maximum for flexible use.
- Produced according to NFE 49100 standards with quality assurance from France.
Product Description

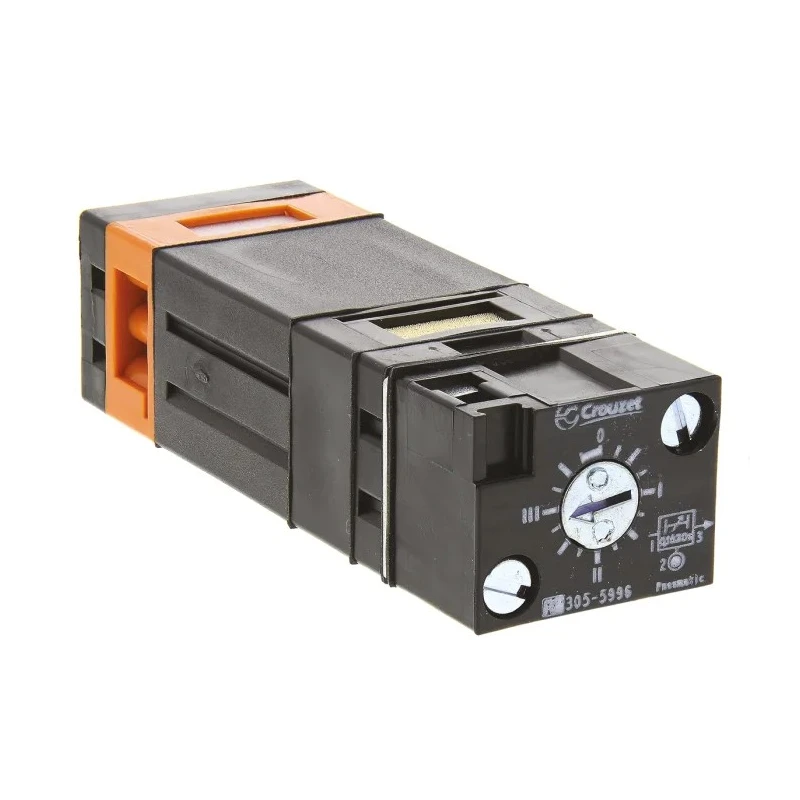

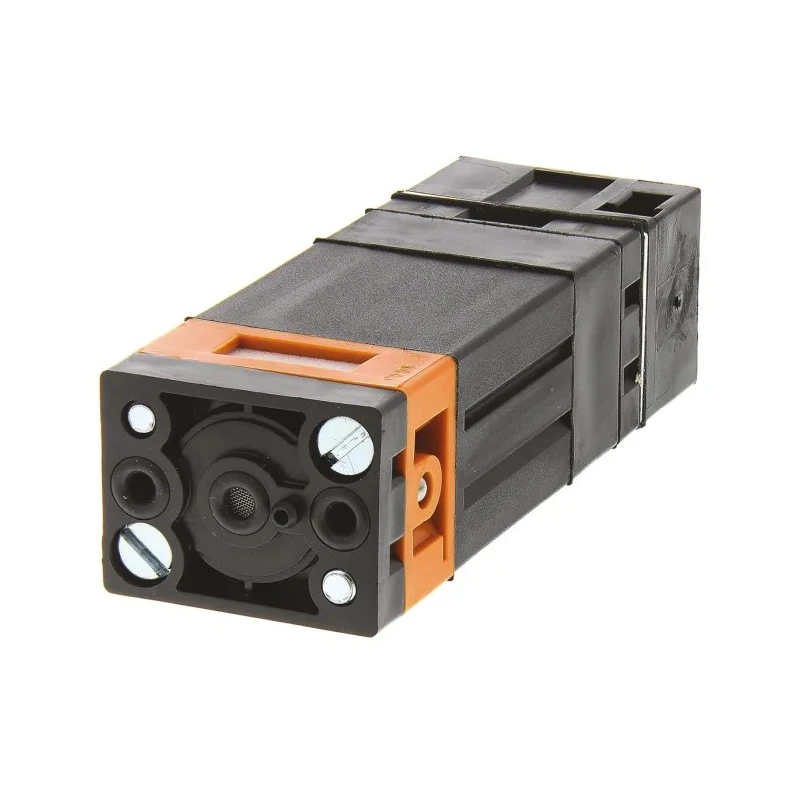

Crouzet 81503720 pneumatic timer is an adjustable positive time delay module designed for pneumatic control systems with operating pressure range of 2 to 8 bar and a temperature range between -5°C and 50°C. It features a counting range from 0.1 to 30 seconds, ideal for precise timing automation in industrial pneumatic applications.

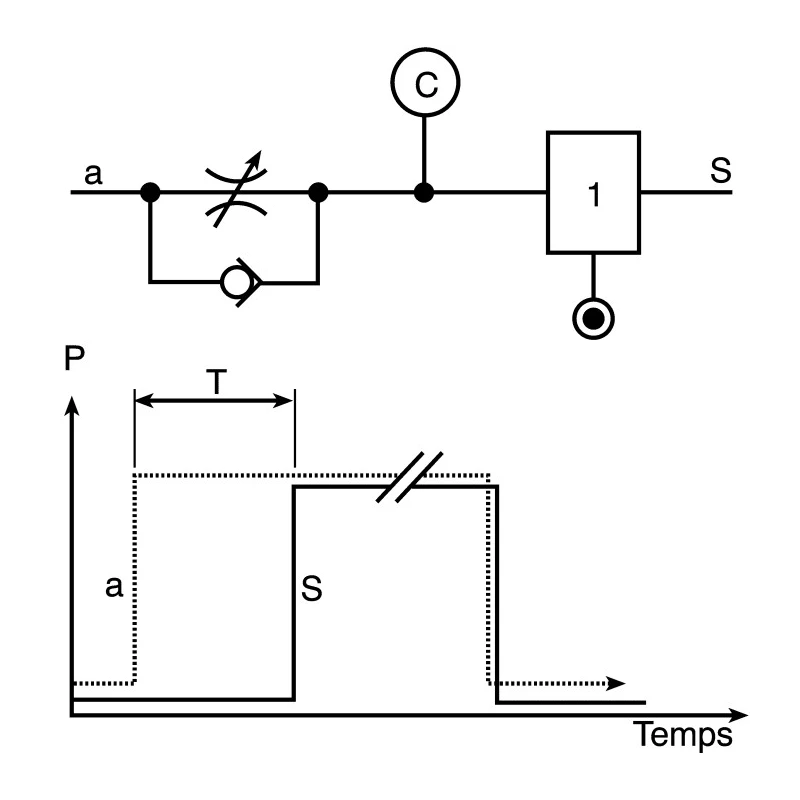

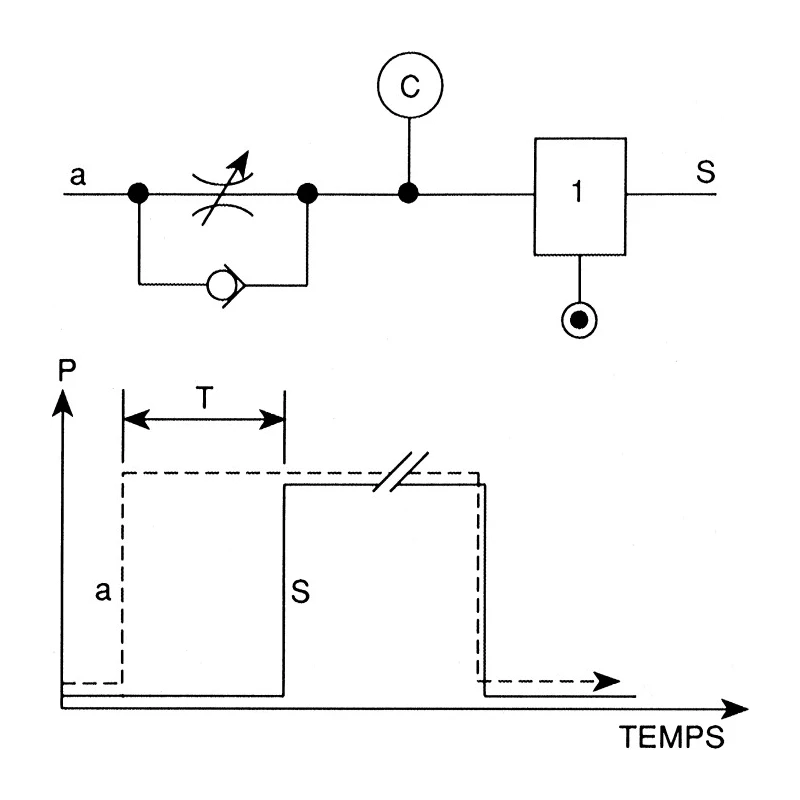

The timer functions by filling a reservoir via a flow restrictor upon application of a pilot signal; after the set time delay, an output relay is operated. The timer will not reset until the pilot signal is removed, allowing accurate control of time-dependent pneumatic operations.
This device includes a 2.7 mm orifice diameter delivering a flow rate of 170 NL/min at 6 bar, suitable for effective pneumatic timing requirements. The mechanical operating life exceeds 10 million cycles, highlighting its durability for long-term use.
Mounting is via DIN rail, enabling easy integration into industrial control panels. It complies with the NFE 49100 standard and is certified under ATEX for hazardous area operation, ensuring safety and reliability in demanding environments.
Manufactured in France, this pneumatic timer is ideal for industrial pneumatic logic control systems used in manufacturing, automation, HVAC, fluid power, and other pneumatic machinery applications.
The timer timer features an adjustable counting range from 0.1 seconds to 30 seconds. Operating pressure is between a minimum of 2 bar and a maximum of 8 bar. Mechanical operating life exceeds 10 million cycles for reliability.
DIN rail mount type allows easy installation and integration. Temperature range suitability from -5°C to +50°C ensures versatile environmental use. Flow rate at 6 bar is 170 NL/min through a 2.7 mm orifice. Complies with NFE 49100 standards and certified ATEX for hazardous areas.
Consider exploring other pneumatic timers and logic controllers available for industrial automation and pneumatic system solutions in the relevant EnvMart categories.
Explore more products in our Pneumatic Logic Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable counting range of this pneumatic timer is from 0.1 seconds to 30 seconds.
It operates within a pressure range of 2 bar minimum to 8 bar maximum.
This model functions effectively within a temperature range of -5°C to 50°C.
The timer provides a flow rate of 170 NL/min at an operating pressure of 6 bar.
It is designed for DIN rail mounting, allowing for easy installation in control panels.
The timer features a 2.7 mm orifice diameter for controlled flow rates.
The mechanical operating life of this model exceeds 10 million cycles, ensuring long-term use.
It complies with NFE 49100 standards and is certified under ATEX for hazardous area operation.
This pneumatic timer is suitable for industrial pneumatic logic control systems used in manufacturing, automation, HVAC, and fluid power applications.

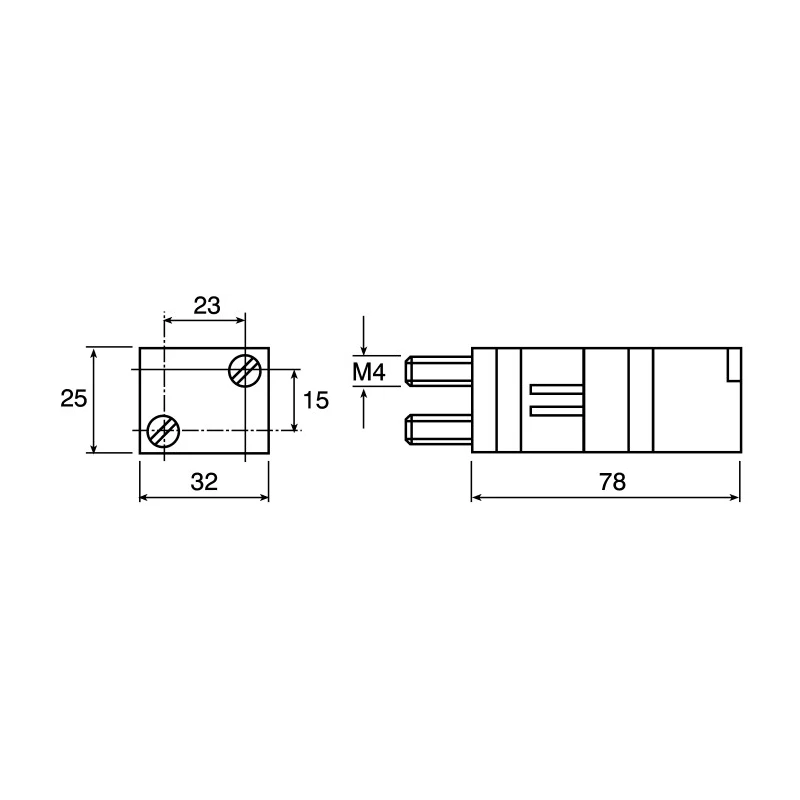

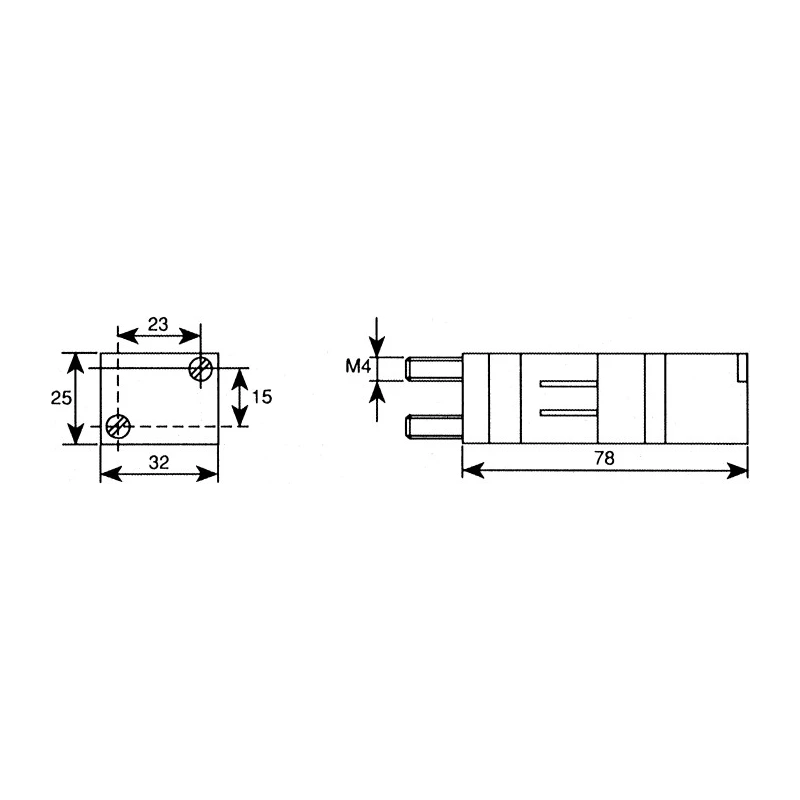

The depth of this model is 7 mm, but other dimensions are not specified in the provided data.
This timer is certified under ATEX, making it suitable for use in hazardous environments.
Yes, it is produced according to NFE 49100 standards, ensuring quality assurance from France.
