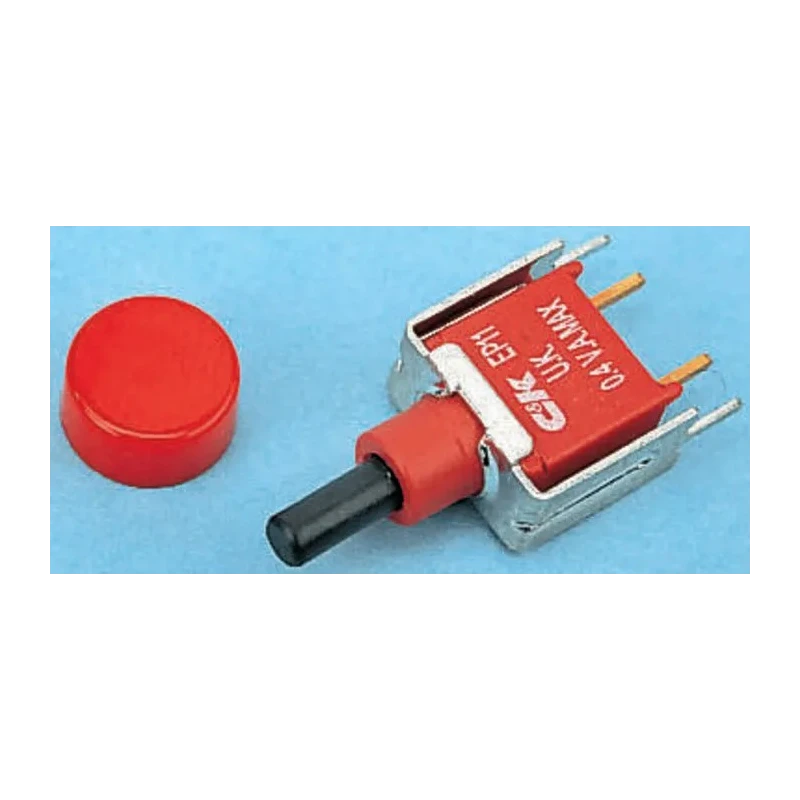

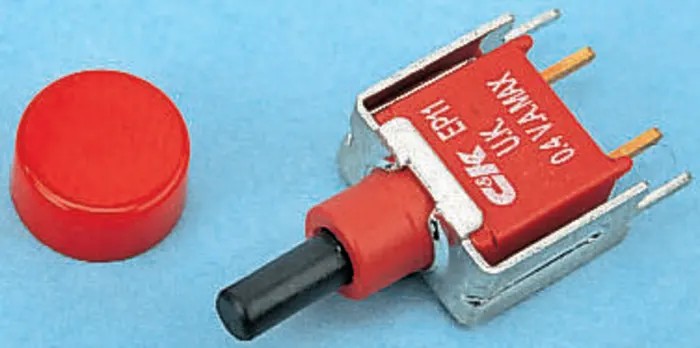

C & K Miniature Momentary Push Button Switch, PCB Mount, SPDT, IP57, 28V DC 120V AC EP12SD1V3BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Length | 10.4mm |
| Model | EP12SD1V3BE |
| IP Rating | IP57 |
| Mount Type | PCB |
| Series | EP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | DPST, SPST, SPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | UR, RoHS, CSA |
| Switch Operation | Momentary |
| Contact DC Voltage | 28V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 120V ac |
| C & K Miniature Push Button Switch, Momentary, PCB, SPSTBrand | C & K |
Key Features
- The switch offers a waterproof IP57 rating suitable for immersion cleaning.
- Constructed with glass filled Nylon 6/6 case material providing durability and flame resistance.
- Actuator style is plunger type ensuring tactile momentary operation.
- Maximum operating temperature is 85°C and minimum is -30°C.
- Designed with gold contacts and a switch contact current rating of 400mA.
- Compatible with wave soldering and immersion washing processes.
- Measuring 10.4mm in length, suitable for compact PCB applications.
- Complies with UR, RoHS, and CSA standards for safety and environmental compliance.
Product Description
The C & K EP12SD1V3BE is a miniature push button switch designed for momentary operation with SPDT contact configuration. It is specifically engineered for PCB mounting applications where compact size and reliable switching are critical.
This switch boasts an IP57 waterproof rating, enabling it to withstand immersion in water, making it ideal for industrial environments requiring washdown or wave soldering processes. The case material is durable glass filled Nylon 6/6, fulfilling UL 94 V-0 flame resistance standards.
The actuator utilizes a plunger style to provide precise momentary switching feedback with a contact current rating of 400mA, supporting both 28V DC and 120V AC voltage ratings. Operating temperature ranges from -30°C to 85°C, ensuring stable performance under varied environmental conditions.
Its compact length of 10.4mm makes it suitable for miniature electronic and automation devices. The internal contacts are gold-plated, enhancing conductivity and reducing corrosion for long-term reliability.
Compliance with UR, RoHS, and CSA standards underscores its suitability for industrial, laboratory, and automated machinery applications that require both safety and environmental responsibility.
The switch is ideal for use in industrial control panels and automation systems. Suitable for electrical equipment requiring reliable momentary PCB-mounted push button switches. Robust housing and waterproof design support harsh manufacturing and HVAC environments.
Gold contact configuration assures signal integrity and longevity despite frequent actuation. The momentary SPDT contact allows versatile switching schemes in control circuitry.
This product is part of EnvMart's comprehensive catalog of miniature push button switches, designed to provide precision and durability for a variety of electronic and electrical applications.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this switch is 85°C.
This model has an IP57 rating, making it waterproof and suitable for immersion cleaning.
The switch has a contact current rating of 400mA.
It supports a contact DC voltage of 28V and an AC voltage of 120V.
The switch measures 10.4mm in length, making it suitable for compact PCB applications.
This model uses a plunger type actuator for momentary operation.
It is designed for PCB mounting.
The switch complies with UR, RoHS, and CSA standards for safety and environmental compliance.
The minimum operating temperature for this switch is -30°C.
It features an SPDT (Single Pole Double Throw) contact configuration.
Yes, it is compatible with wave soldering and immersion washing processes.
The switch is constructed with a glass filled Nylon 6/6 case material, providing durability and flame resistance.
