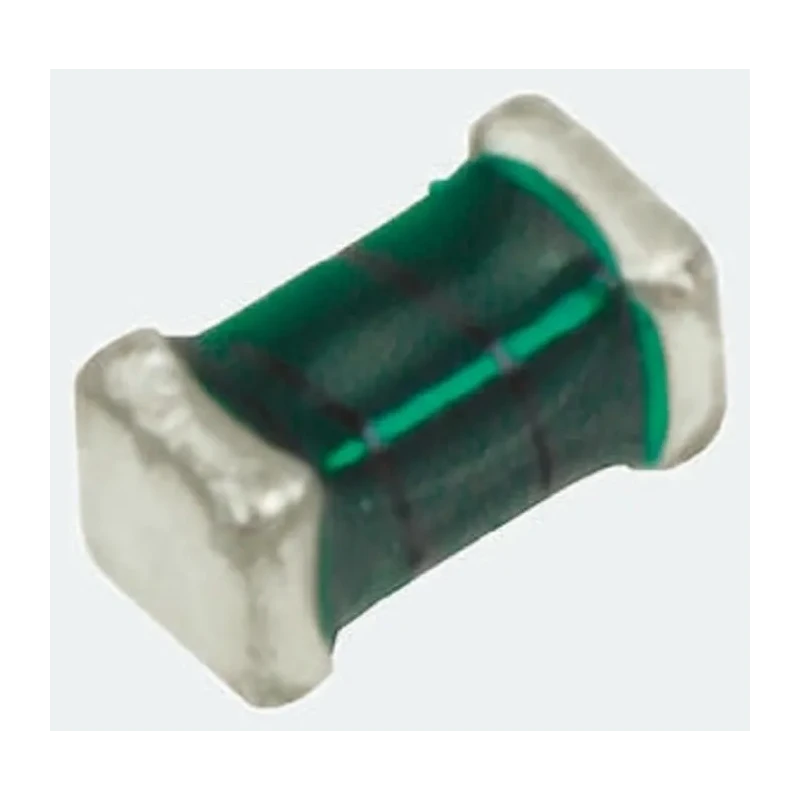

TDK SIMID 0603 Wirewound Surface Mount Inductor Copper Plated Ceramic Core 2.2 nH ±0.3 nH 1.5A DC Current Q14 B82496C3229A000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3229A000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 2.2nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 1.5A |
| Maximum DC Resistance | 35mΩ |
| Inductance Tolerance | ±0.3 nH |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance of 2.2 nH with a tolerance of ±0.3 nH ensures precise performance.
- Maximum DC current rating is 1.5 A suitable for demanding electronic circuits.
- Compact 0603 package size (1.6 x 0.8 x 0.8 mm) ideal for PCB surface mounting.
- Construction uses wirewound technology for enhanced quality factor (Q) of 14.
- Operates reliably between -55°C and 150°C operating temperature range.
- Core material is copper plated ceramic, providing high mechanical stability and low resistance.
- Maximum DC resistance of 35 mΩ minimizes power loss in circuits.
- Conforms to automotive standard AEC-Q200, suitable for robust automotive applications.
Product Description
TDK B82496C3229A000 SIMID series 0603 wirewound surface mount inductor is designed with a copper plated ceramic core, providing excellent stability and high resonance frequencies up to 10 GHz. The 2.2 nH inductance with a tolerance of ±0.3 nH and a quality factor (Q) of 14 ensures precise electrical performance in compact PCB layouts.
This surface mount inductor is built to handle a maximum DC current of 1.5 A with a low DC resistance of 35 milliohms, reducing power losses and improving overall circuit efficiency. Its robust construction complies with automotive standard AEC-Q200, making it highly reliable for automotive and other harsh environment applications.
The compact 0603 package dimensions of 1.6 mm length x 0.8 mm height x 0.8 mm depth make it ideal for dense circuit board designs. Operating temperature ranges from -55°C to 150°C allows use in a wide variety of industrial, automotive, telecommunications, and consumer electronics environments.
The inductor is supplied in tape and reel packaging, facilitating automated assembly processes and minimizing handling damage. Inductance of 2.2 nH ±0.3 nH provides precise inductive characteristics. Maximum DC current rating of 1.5 A supports moderate current applications.
Compact 0603 footprint enables space-saving PCB design. Copper plated ceramic core enhances high-frequency performance and mechanical durability. Compliance with AEC-Q200 automotive standard ensures high reliability. Wide operating temperature range from -55°C to 150°C.
Low resistance of 35 mΩ reduces power dissipation. Packaging on tape and reel supports efficient production.
This inductor is applicable in industrial, automotive electronics, telecommunications, consumer electronics, and other high-frequency applications requiring reliable surface mount components.
Explore the full range of Surface Mount Inductors at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance of this model is 2.2 nH with a tolerance of ±0.3 nH, ensuring precise performance in electronic circuits.
It has a maximum DC current rating of 1.5 A, making it suitable for demanding electronic applications.
The dimensions of this inductor are 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth, conforming to the 0603 package size.
This inductor operates reliably within a temperature range of -55°C to 150°C, suitable for various environments.
The core material is copper plated ceramic, which provides high mechanical stability and low resistance.
The maximum DC resistance is 35 mΩ, which helps minimize power loss in circuits.
This model has a minimum quality factor (Q) of 14, indicating enhanced performance characteristics.
It conforms to the automotive standard AEC-Q200, ensuring reliability for automotive applications.
The inductor is supplied in tape and reel packaging, which facilitates automated assembly processes.
This model features a surface mount termination style, making it suitable for PCB mounting.
The maximum self-resonant frequency for this inductor is 10 GHz, allowing for high-frequency applications.
It is applicable in industrial, automotive electronics, telecommunications, and consumer electronics, particularly in high-frequency applications.
