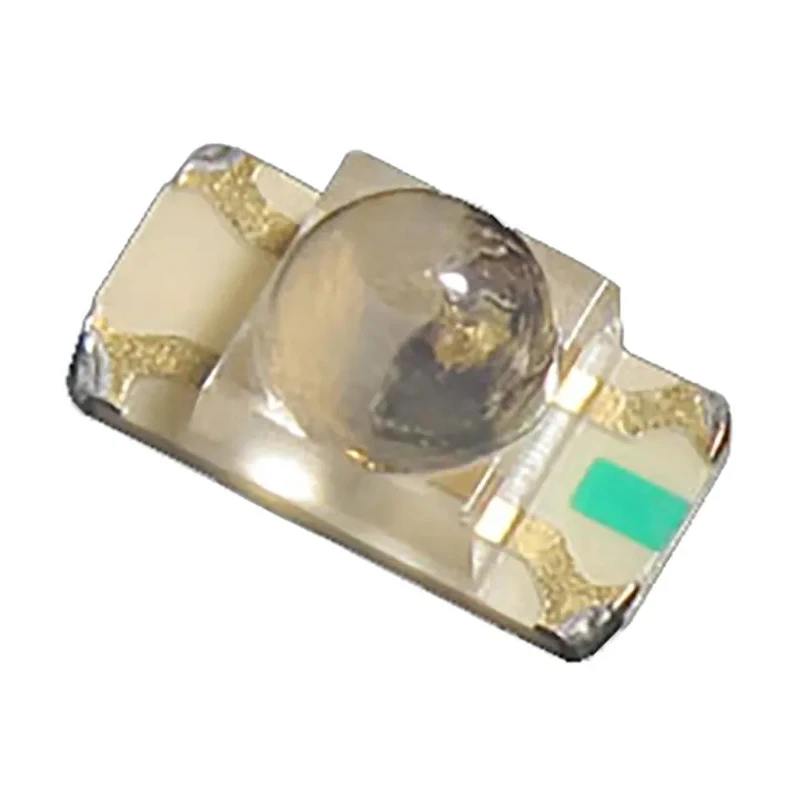

Kingbright 2.5 V Red, Green Multi-Colour Surface Mount LED 3216 Package KPTBD-3216SURKCGKC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Height | 1.8 mm |
| Model | KPTBD-3216SURKCGKC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Multi-Colour LED |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 30 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Dominant Wavelength | 570, 630nm |
| Forward Voltage | 2.5V |
| Number of Pins | 4 |
| LED Luminosity | 250 mcd, 400 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3.2 x 1.6 x 1.8 mm |
| Lens Shape | Dome |
Key Features
- This LED has a 3216 (1206) SMT package with a domed lens design.
- It features a maximum forward current of 30 mA and power dissipation of 75 mW.
- The LED provides red and green colour emission with dominant wavelengths of 630 nm and 570 nm.
- Compact dimensions of 3.2 x 1.6 x 1.8 mm and 4 pins enable surface PCB mounting.
- Viewing angle of 30 degrees with clear dome lens for focused illumination.
- Brightness range from 250 mcd to 400 mcd suitable for clear indicator use.
- RoHS compliant and supplied in tape and reel packaging for automated production.
- Designed for electronic display and indicator light applications across industries.
Product Description
Kingbright KPTBD-3216SURKCGKC is a multi-colour surface mount LED combining red and green light emission, designed in the industry-standard 3216 (1206) SMT package. The device features a domed clear lens measuring 3.2 x 1.6 x 1.8 mm, providing a compact form factor suitable for PCB mount applications.
This LED operates at a forward voltage of 2.5 V with a maximum forward current rating of 30 mA and a power dissipation rating of 75 mW, making it energy efficient for continuous indicator use. Its 30-degree narrow viewing angle and dome-shaped lens shape ensure focused and clear light output.
The device contains two LEDs in one package with 4 pins for separate colour control, offering dominant wavelengths of 630 nm (red) and 570 nm (green). It delivers luminous intensities of 250 mcd to 400 mcd, ideal for clear visible signalling in electronic displays or indicator lights.
Supplied in tape and reel packaging, this LED supports automated manufacturing processes, improving production efficiency. It complies with RoHS standards, ensuring environmental safety and regulatory compliance.
This multi-colour LED is widely used in electronic components for backlighting, status indicators, and signaling applications across industry sectors including electronics manufacturing, industrial equipment, and consumer electronics.
This LED has a 3216 (1206) SMT package with a domed lens design. Maximum forward current of 30 mA and power dissipation of 75 mW. Offers red and green colour emission with dominant wavelengths of 630 nm and 570 nm. Compact dimensions of 3.2 x 1.6 x 1.8 mm and 4 pins for surface PCB mounting.
Viewing angle of 30 degrees with clear dome lens for focused lighting. Brightness range from 250 mcd to 400 mcd suitable for indicator use. RoHS compliant and supplied in tape and reel packaging. Designed for electronic display and indicator light applications.
Manufactured new in China with product reliability for industrial use. Explore the Kingbright range and multi-colour LED components available on EnvMart for your lighting and electronic display needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 30 mA.
The dominant wavelength for the red emission is 630 nm, while for the green emission it is 570 nm.
This LED operates at a forward voltage of 2.5 V.
The brightness range of this model is from 250 mcd to 400 mcd.
The dimensions of the LED package are 3.2 x 1.6 x 1.8 mm.
This model features 4 pins for surface PCB mounting.
The viewing angle of this LED is 30 degrees.
The maximum power dissipation rating for this model is 75 mW.
This LED is supplied in tape and reel packaging, suitable for automated production.
Yes, this LED is RoHS compliant, ensuring it meets environmental safety standards.
This LED is designed for electronic display and indicator light applications across various industries.
The lens shape of this LED is dome-shaped, which helps in focused illumination.
