Molex PMC Mezzanine Series Straight Surface Edge Connector, 64-Contact, 2 Row, 1 mm Pitch, 100 V, 12 A Current 71439-0164

Free Delivery in India | Lowest Global Shipping Charges

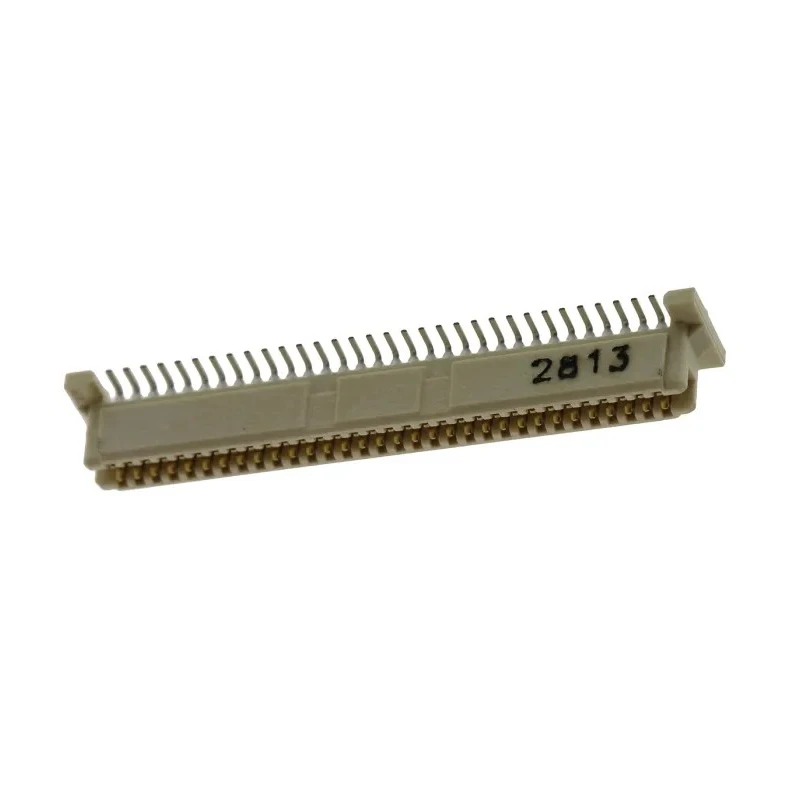

Molex PMC Mezzanine Series Straight Surface Edge Connector, 64-Contact, 2 Row, 1 mm Pitch, 100 V, 12 A Current 71439-0164

Name: Molex PMC Mezzanine Series Straight Surface Edge Connector, 64-Contact, 2 Row, 1 mm Pitch, 100 V, 12 A Current 71439-0164
Brand: Molex
SKU: 186465
Price: 10.14 USD
Availability: InStock



Category Edge Connector Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	100V
Brand	Molex
Orientation	Straight
Current	12A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Bronze
Series	PMC Mezzanine
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Interfaces	LAN, WAN, telecommunication, PC and workstation applications
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	64
Contact Gender	Female
Connector System	Board-to-Board, Signal
Row Pitch	1.4mm
Mated heights	8 → 15mm (see combination guide)

Key Features

Designed for vertical stacking PCB applications with surface mount termination.
Comprises thermoplastic high-temperature LCP housing suitable for reflow solder processes.
Gold plated bronze contacts ensure reliable signal transmission and low insertion force.
Supports 12 A current rating and 100 V voltage capacity.
Compatible with LAN, WAN, telecommunication, PC, and workstation interfaces.
Features shrouded leaf design to protect header contacts from damage.
Operates within a temperature range of -55°C to 85°C for robust industrial use.
Suitable for PCI and S-bus mezzanine card connections to VMEbus and Multibus host boards.

Product Description

Molex 71439-0164 PMC Mezzanine Series Straight Surface Edge Connector is a precision engineered board-to-board Edge Connector designed for high-density electronic applications.

Featuring 64 female contacts arranged in 2 rows with 1 mm pitch and 1.4 mm row pitch, this connector supports a current rating of 12 A and voltage rating up to 100 V, making it suitable for demanding signal and power transmission needs.

The housing material is a thermoplastic high-temperature LCP which withstands temperatures ranging from -55°C to 85°C, allowing use in harsh industrial environments and solder reflow processes. The gold-plated bronze contacts minimize signal loss and corrosion, ensuring long-term reliability.

It supports vertical stacking SMT headers and sockets with mated heights from 8 to 15 mm enabling compact PCB designs. The connector's shrouded leaf design protects header contacts during handling and insertion, reducing damage risk.

Typical applications include LAN, WAN, telecommunications, personal computers, workstations, and mezzanine card interfacing to VMEbus and Multibus host boards for industrial, laboratory, and manufacturing environments.

Designed for vertical stacking PCB applications with surface mount termination. Comprises thermoplastic high-temperature LCP housing suitable for reflow solder processes. Gold plated bronze contacts ensure reliable signal transmission and low insertion force.

Supports 12 A current rating and 100 V voltage capacity. Compatible with LAN, WAN, telecommunication, PC, and workstation interfaces. Features shrouded leaf design to protect header contacts from damage. Operates within a temperature range of -55°C to 85°C for robust industrial use.

Suitable for PCI and S-bus mezzanine card connections to VMEbus and Multibus host boards. Manufactured in the United States with PMC Mezzanine series quality standards. Explore Molex connectors within EnvMart for advanced PCB solutions and leverage their trusted performance for diverse electronics manufacturing applications.
