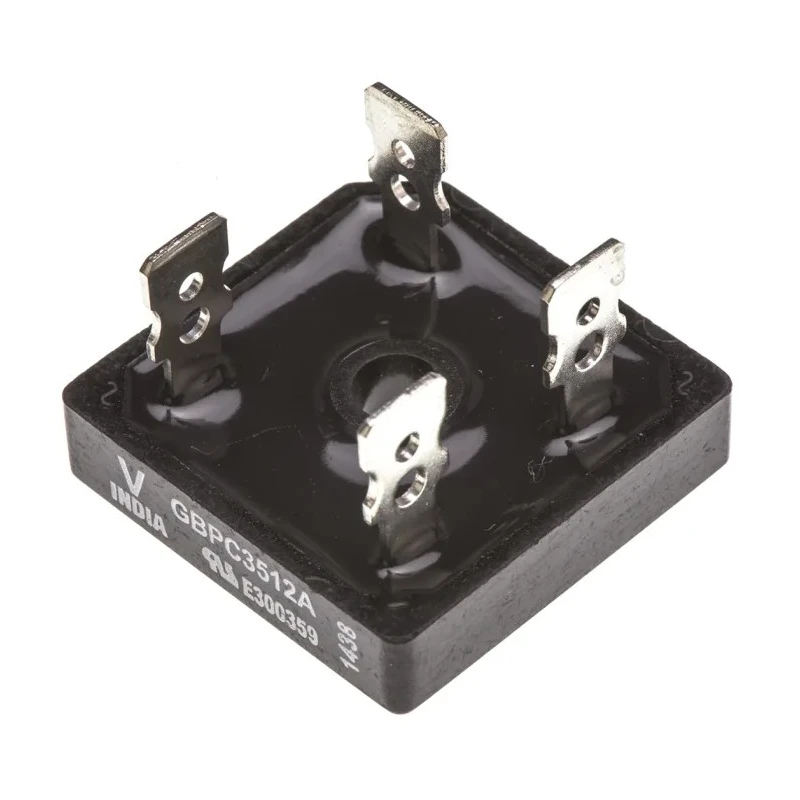

Vishay Bridge Rectifier 1200 V 500 A 4-Pin Single VS-GBPC3512A

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 1200 V 500 A 4-Pin Single VS-GBPC3512A

Name: Vishay Bridge Rectifier 1200 V 500 A 4-Pin Single VS-GBPC3512A
Brand: Vishay
SKU: 182951
Price: 6.86 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.7mm
Length	28.6mm
Model	VS-GBPC3512A
Width	28.6mm
Mount Type	Screw
Series	VS-GBPC
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1200V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	500A
Forward Current If	35A
Peak Forward Voltage Vf	1.1V
Universal, 3 way terminals	push-on, wrap around or solder
Vishay Bridge Rectifier, 1200 V 500 A, 4-Pin SingleBrand	Vishay

Key Features

Features a peak reverse repetitive voltage of 1200 V.
Configured as a single phase with 4-pin screw mount design.
Maximum forward current rating of 35 A and peak surge current of 500 A.
Operates reliably between -55°C to 150°C ambient temperature.
Compact dimensions of 28.6 mm length, 28.6 mm width, and 7.7 mm height for space-saving installation.
Glass passivated diode chips ensure excellent power-to-volume ratio and thermal conductivity.
Nickel plated terminals are solderable with lead-free solder, supporting SAC305 alloy.
Universal 3-way terminals allow push-on, wrap around, or solder mounting.

Product Description

Vishay VS-GBPC3512A Bridge Rectifier is a compact, encapsulated single-phase rectifier designed for efficient full-wave AC to DC conversion in industrial and instrumentation applications. It features a robust screw mount GBPC package with 4 pins and a universal terminal design for versatile installation.

This bridge rectifier provides a peak reverse repetitive voltage (VRRM) of 1200 V and supports a maximum forward current (IF) of 35 A, withstanding peak non-repetitive forward surge currents (IFSM) up to 500 A. It operates effectively over a wide temperature range from -55°C to 150°C, making it suitable for demanding environments.

Its compact dimensions of 28.6 mm length and width, and 7.7 mm height offer an excellent power-to-volume ratio. The device uses glass passivated diode chips and features a high thermal conductivity, electrically insulated plastic case. Nickel plated terminals facilitate soldering with lead-free SAC305 solder alloy, complying with modern environmental standards.

Universal 3-way terminals allow mounting by push-on, wrap around, or solder methods, enhancing installation flexibility. The rectifier is designed and qualified for both industrial and consumer applications requiring reliable power conversion.

Peak reverse repetitive voltage of 1200 V ensures durability under high voltage stress. Screw mount GBPC package with 4 pins enables robust mechanical fixation. Forward current rating of 35 A suitable for medium power applications.

Wide operating temperature range from -55°C to 150°C accommodates diverse environments. Compact size offers space-saving in instrument designs. Nickel plated terminals support lead-free soldering meeting environmental safety requirements.

Glass passivated diode chips offer enhanced reliability and performance. Universal terminal design for installation flexibility. UL E300359 approval ensures recognized safety compliance.

This Vishay Bridge Rectifier is ideal for industrial machines, power supplies, instrumentation, and other electronics requiring efficient AC to DC conversion. Explore more semiconductor components and discrete semiconductor solutions at EnvMart for your projects.
