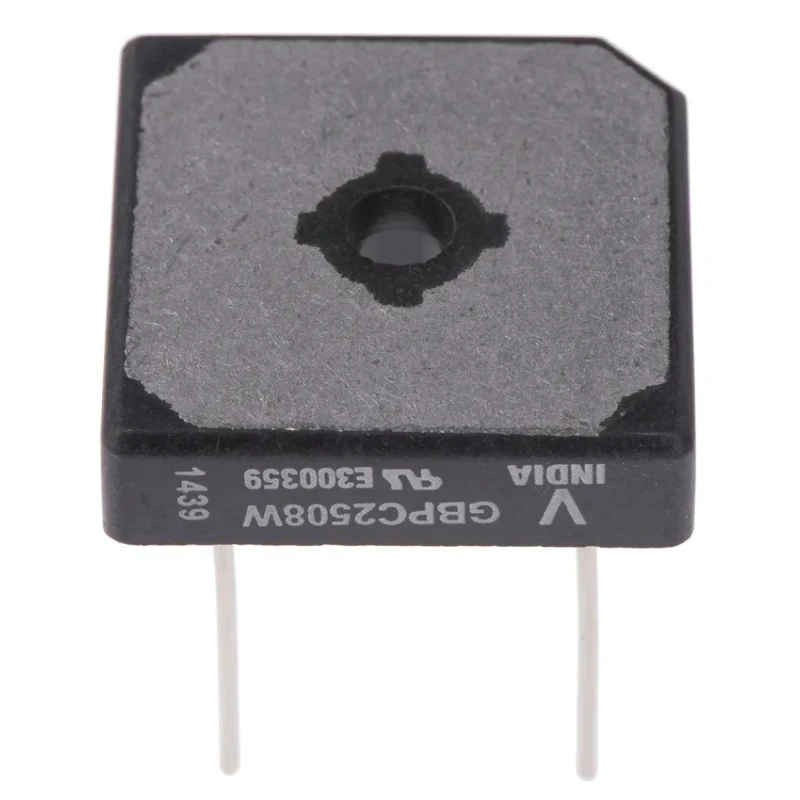

Vishay Bridge Rectifier, 800 V Peak Reverse Voltage, 300 A Forward Surge Current, 4-Pin Single VS-GBPC2508W

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier, 800 V Peak Reverse Voltage, 300 A Forward Surge Current, 4-Pin Single VS-GBPC2508W

Name: Vishay Bridge Rectifier, 800 V Peak Reverse Voltage, 300 A Forward Surge Current, 4-Pin Single VS-GBPC2508W
Brand: Vishay
SKU: 182942
Price: 5.19 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.62mm
Length	28.8mm
Model	VS-GBPC2508W
Width	28.8mm
Mount Type	Through Hole
Series	VS-GBPC
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	25A
Peak Forward Voltage Vf	1.1V
Fagor Electronica Bridge Rectifier, 25A, 600V, 4-PinBrand	Fagor Electronica
Taiwan Semiconductor Bridge Rectifier, 800 V 300 A, 4-Pin SingleBrand	Taiwan Semiconductor

Key Features

Operates with a maximum forward current of 25 A for reliable performance.
Designed for through-hole mounting with a compact GBPC package.
Supports a wide operating temperature range from -55°C to 150°C.
Features low peak forward voltage drop of 1.1 V ensuring efficient conduction.
Compact dimensions of 28.8 mm length, 28.8 mm width, and 7.62 mm height for PCB or chassis mounting.
Wire lead structure and center hole fixing provide stable mechanical installation.
Peak reverse current is minimal at 5 μA, minimizing leakage losses.
Suitable for full-wave rectification in industrial, electronic, and power supply applications.

Product Description

Vishay VS-GBPC2508W bridge rectifier is a high-performance semiconductor device designed for efficient full-wave rectification in electronic circuits. It converts alternating current (AC) into direct current (DC), providing a stable DC output by utilizing a bridge configuration with four pins.

This device is rated for a peak reverse repetitive voltage (Vrrm) of 800 V and supports a peak non-repetitive forward surge current (Ifsm) of 300 A, ensuring robust operation under surge conditions. The maximum continuous forward current (If) is 25 A, making it suitable for moderate power electronic applications.

Constructed for through-hole mounting, the GBPC package type offers mechanical durability and excellent thermal dissipation with low thermal resistance. Its compact physical dimensions of 28.8 mm length and width, and 7.62 mm height allow easy integration onto printed circuit boards or chassis setups.

The bridge rectifier design ensures that the output polarity remains constant regardless of the input AC polarity, which is essential for reliable power supplies and industrial electronics. The device operates effectively within a temperature range from -55°C to 150°C, making it adaptable to various environmental conditions.

Maximum forward current of 25 A for continuous operation. Peak surge current rating of 300 A to handle transient conditions. Low forward voltage drop of 1.1 V for efficient power conversion. Compact dimensions for optimized PCB layout.

High-temperature tolerance up to 150°C ensures durability. Through-hole mount with wire lead structure provides secure mechanical fixing. Minimal leakage current to improve energy efficiency.

This Bridge Rectifier is widely used in industrial machines, power supply units, HVAC controls, and other electronic devices requiring stable DC voltage. Its reliable performance and standardized package make it a preferred choice in semiconductor applications.

Explore additional Vishay power semiconductor solutions in EnvMart's Electronics & Electricals category to complement your design requirements.
