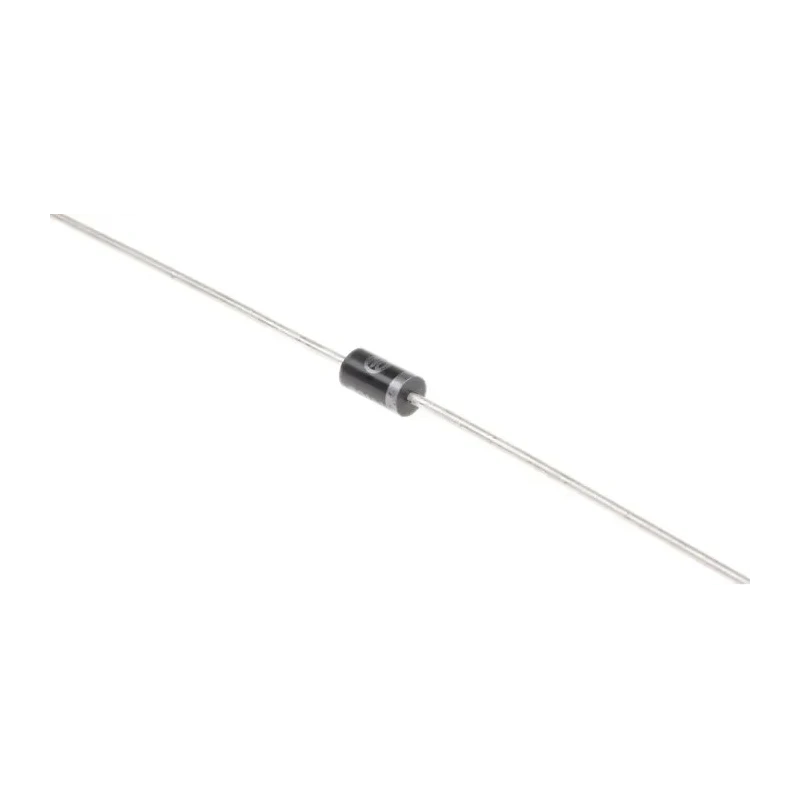

onsemi Silicon Junction Switching Diode, 1 A, 50 V, Through Hole, 2-Pin DO-41 1N4001G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Silicon Junction Switching Diode, 1 A, 50 V, Through Hole, 2-Pin DO-41 1N4001G

Name: onsemi Silicon Junction Switching Diode, 1 A, 50 V, Through Hole, 2-Pin DO-41 1N4001G
Brand: onsemi
SKU: 182610
Price: 0.06 USD
Availability: InStock



Category Discrete Semiconductor Brand onsemi Condition New

Specifications

Country of Origin	China
Diameter	2.7mm
Brand	onsemi
Height	5.2mm
Length	54.9mm
Model	1N4001G
Finish	All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Gross Weight	0.4 Gram
Width	2.7mm
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Case	Epoxy, Molded
Package Type	DO-41
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Polarity	Cathode Indicated by Polarity Band
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.1V
Maximum Forward Current If	1A
Maximum Peak Reverse Repetitive Voltage Vrrm	50V
Lead Temperature for Soldering Purposes	260°C Max for 10 Seconds
ON Semi 50V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4001GBrand	ON Semiconductor

Key Features

Single silicon junction diode with a 1 amp forward current rating.
2-pin DO-41 axial lead package suitable for through-hole mounting.
Maximum peak reverse repetitive voltage of 50 volts for reliable operation.
Maximum forward voltage drop of 1.1 volts ensuring efficient conduction.
Wide operating temperature range from -65°C to 175°C for varied conditions.
Epoxy molded case with corrosion-resistant external surfaces.
Terminal leads are readily solderable at 260°C max for 10 seconds.
Cathode indicated by polarity band for easy identification.

Product Description

onsemi 1N4001G Silicon Junction Switching Diode is a standard recovery rectifier designed for general purpose low power switching applications. It features a 2-pin DO-41 axial lead package and supports a maximum forward current of 1 ampere with a peak reverse voltage of 50 volts.

This diode operates efficiently with a maximum forward voltage of 1.1 volts and can withstand surge currents up to 30 amperes for brief periods, making it suitable for demanding transient conditions.

The device is encapsulated in an epoxy molded case providing excellent protection against corrosion and environmental influences. Its external surfaces are corrosion-resistant and the terminal leads are readily solderable, allowing ease of assembly on through-hole printed circuit boards.

The diode has a wide operating temperature range from -65°C to 175°C, ensuring reliability in harsh industrial and commercial environments. The cathode end is marked by a polarity band, facilitating correct installation.

Common applications include use as free wheeling diodes in power inverters, polarity protection to safeguard circuits from reverse voltage, and in high frequency inverter circuits.

This diode configuration is a single silicon junction type suitable for general Discrete Semiconductor switching applications. The DO-41 package form factor allows straightforward integration into through-hole PCBs. Its compact dimensions (length 54.9mm, diameter 2.7mm) and lightweight (0.4 gram) make it suitable for space-constrained designs.

The device is compliant with standard requirements but does not hold specific approvals or automotive certifications. It is manufactured in China under onsemi brand, ensuring quality and consistency. Explore more semiconductor components and switching diodes from onsemi available at EnvMart for your electronic and industrial projects.
