Vishay 1-Element Uni-Directional TVS Diode 600 W Peak Pulse Power 2-Pin DO-214AA SMBJ13A-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ13A-E3 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 21.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 14.4V |
| Maximum Reverse Stand-off Voltage Vwm | 13V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 27.9A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single-element diode with a uni-directional configuration.
- Maximum reverse stand-off voltage of 13 volts with minimum breakdown voltage of 14.4 volts.
- Peak pulse power dissipation capability of 600 watts with excellent clamping voltage at 21.5 volts.
- Wide operating temperature range from -55°C to 150°C for harsh environments.
- Surface mount DO-214AA SMB package optimized for automated PCB placement.
- Complies with AEC-Q101 automotive standard for high reliability.
- Fast response time and low incremental surge resistance for effective transient suppression.
- Compact size suitable for space-constrained circuit designs.
Product Description
The Vishay SMBJ13A-E3 is a 1-element, uni-directional transient voltage suppressor (TVS) diode designed for surface mounting in a compact DO-214AA SMB package.
This TVS diode provides reliable transient overvoltage protection with a peak pulse power dissipation rating of 600 watts and a very fast response time, making it suitable for protecting sensitive electronic components in industrial, automotive, telecommunications, and consumer electronics applications.
With a minimum breakdown voltage of 14.4 V and maximum reverse stand-off voltage of 13 V, it effectively clamps voltage spikes to 21.5 V under transient conditions.
The diode comes with an operating temperature range from -55°C up to 150°C, ensuring durability and robustness in harsh environments. It also features very low incremental surge resistance and ESD protection, meeting AEC-Q101 automotive quality standards for reliability.

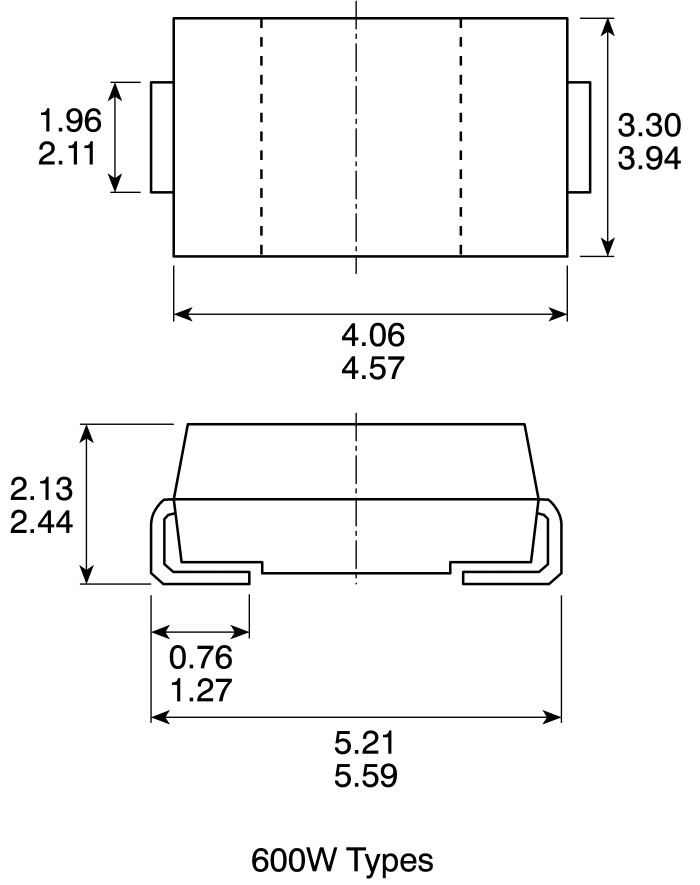

Its small footprint dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height suit automated PCB assembly and space-constrained designs. The diode contains a glass passivated chip junction for long-term reliability.
Single-element diode with a uni-directional configuration. Peak pulse power dissipation capability of 600 W with excellent clamping voltage. Surface mount DO-214AA SMB package optimized for automated placement. Wide operating temperature range from -55°C to 150°C, suitable for industrial and automotive use.
Meets automotive quality standard AEC-Q101 for high reliability. ESD protection and low surge resistance for enhanced transient voltage suppression. Compact dimensions allow usage in space-limited circuits and high-density PCB layouts.
This diode is ideal for protecting voltage-sensitive ICs, MOSFETs, sensor units, and signal lines from transients caused by inductive load switching, lightning, and electrostatic discharge in electronic, automotive, telecommunications, and industrial systems.
Explore the range of Vishay TVS Diodes in the Electronics and Semiconductor category on EnvMart to find parts suitable for your transient protection applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation capability of the SMBJ13A-E3 is 600 watts.
The maximum reverse stand-off voltage for this model is 13 volts.
The minimum breakdown voltage of this diode is 14.4 volts.
The clamping voltage for the SMBJ13A-E3 is 21.5 volts.
The operating temperature range for the SMBJ13A-E3 is from -55°C to 150°C.
This model has dimensions of 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The SMBJ13A-E3 comes in a surface mount DO-214AA (SMB) package.
This diode is a single-element device with a uni-directional configuration.
The SMBJ13A-E3 complies with the AEC-Q101 automotive standard for high reliability.
The maximum peak pulse current for the SMBJ13A-E3 is 27.9 A.
The maximum reverse leakage current for this model is 1 μA.
This diode is suitable for protecting voltage-sensitive ICs, MOSFETs, sensor units, and signal lines from transients in industrial, automotive, telecommunications, and consumer electronics applications.
