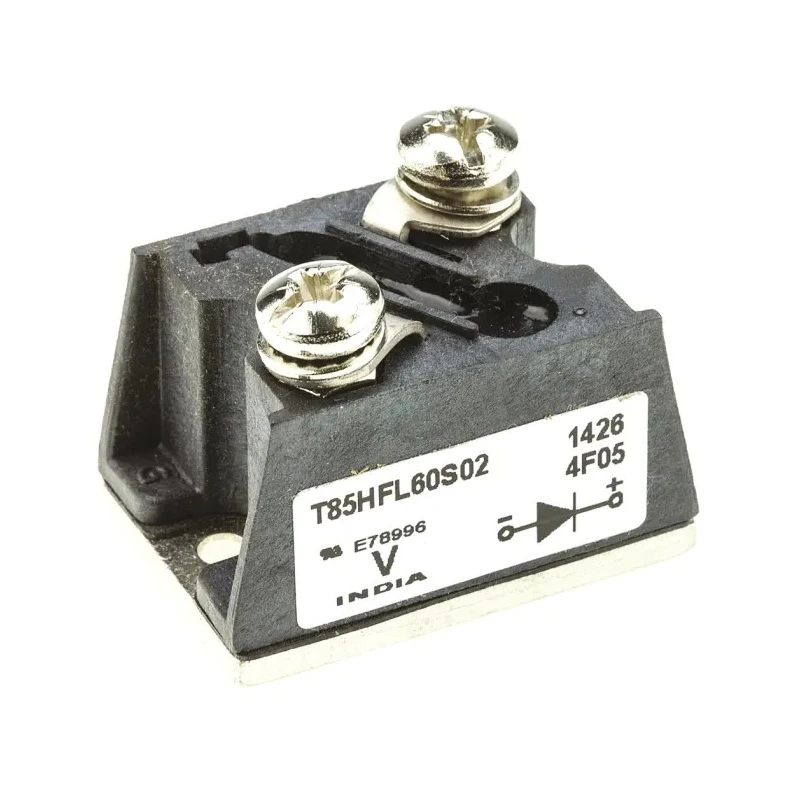

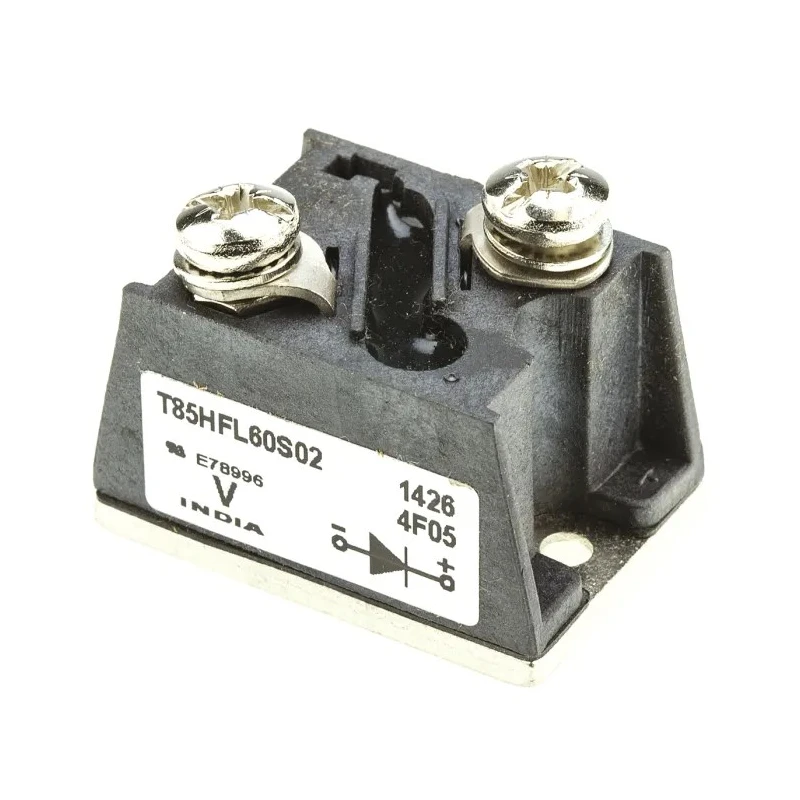

Vishay 600 V 85 A Fast Recovery Switching Diode 2-Pin T-Module VS-T85HFL60S02
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 25mm |
| Brand | Vishay |
| Height | 25mm |
| Length | 41mm |
| Model | VS-T85HFL60S02 |
| Width | 27mm |
| Mount Type | Panel |
| Series | VS-T85 |
| Maximum Operating Temperature | 125°C |
| Package Type | T-Module |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.4kA |
| Maximum Forward Voltage Vf | 1.55V |
| Peak Reverse Recovery Time trr | 200ns |
Key Features
- Maximum continuous forward current of 85 amperes.
- Peak reverse repetitive voltage rating of 600 volts.
- Fast recovery time of 200 nanoseconds for rapid switching.
- Electrically isolated metal base for common heatsink use.
- Peak non-repetitive forward surge current up to 1.4 kiloamperes.
- Wide operating temperature range from -40 to 125 degrees Celsius.
- Standard JEDEC® T-module package for simplified mechanical assembly.
- Large creepage distances for enhanced electrical insulation.
Product Description
Vishay VS-T85HFL60S02 is a fast recovery switching diode in a 2-pin T-module package rated for 600 V reverse voltage and 85 A forward current. This single diode configuration is ideal for high-speed switching applications including self-commutated inverters, DC choppers, motor controls, inductive heating, and electronic welders.
The module features an electrically isolated base plate allowing it to be mounted on common heatsinks or used in compact assemblies. It supports a peak reverse recovery time of 200 ns, enabling efficient switching performance. The robust design offers a wide operating temperature range from -40°C to 125°C and high surge current capability of 1.4 kA for transient conditions.
The T-module mechanical design complies with JEDEC® standards, simplifying assembly and ensuring reliable mechanical stability. Large creepage distances improve insulation safety in demanding industrial environments. These diodes are suitable for industrial power switching scenarios requiring fast recovery and reliable endurance.
Maximum continuous forward current of 85 amperes. Peak reverse repetitive voltage of 600 volts. Fast recovery characteristic of 200 nanoseconds. Electrically isolated metal base plate for common heatsink assembly. JEDEC® standard T-module package for ease of integration.
Wide operating temperature from -40°C to 125°C. Peak non-repetitive forward surge current of 1.4 kA. Large creepage distances for enhanced insulation.
This diode module is highly suited for applications in industrial power electronics, construction equipment, HVAC systems, manufacturing automation, and water treatment. It offers excellent combination of speed, power handling, and thermal endurance essential for demanding switching environments.
Explore more Vishay semiconductor switching diodes and power modules at EnvMart for robust industrial electronics solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-T85HFL60S02 is 85 amperes.
This model has a peak reverse repetitive voltage rating of 600 volts.
It features a fast recovery time of 200 nanoseconds, enabling rapid switching performance.
The operating temperature range is from -40°C to 125°C.
The dimensions of the T-module package are 41mm in length, 27mm in width, and 25mm in height.
This diode supports panel mounting.
The peak non-repetitive forward surge current is rated at 1.4 kiloamperes.
It is classified as a switching rectifier.
The peak reverse recovery current is specified at 100 microamperes.
The maximum forward voltage drop is 1.55 volts.
This model features a single diode configuration.
It is suitable for high-speed switching applications including self-commutated inverters, DC choppers, motor controls, and inductive heating.
