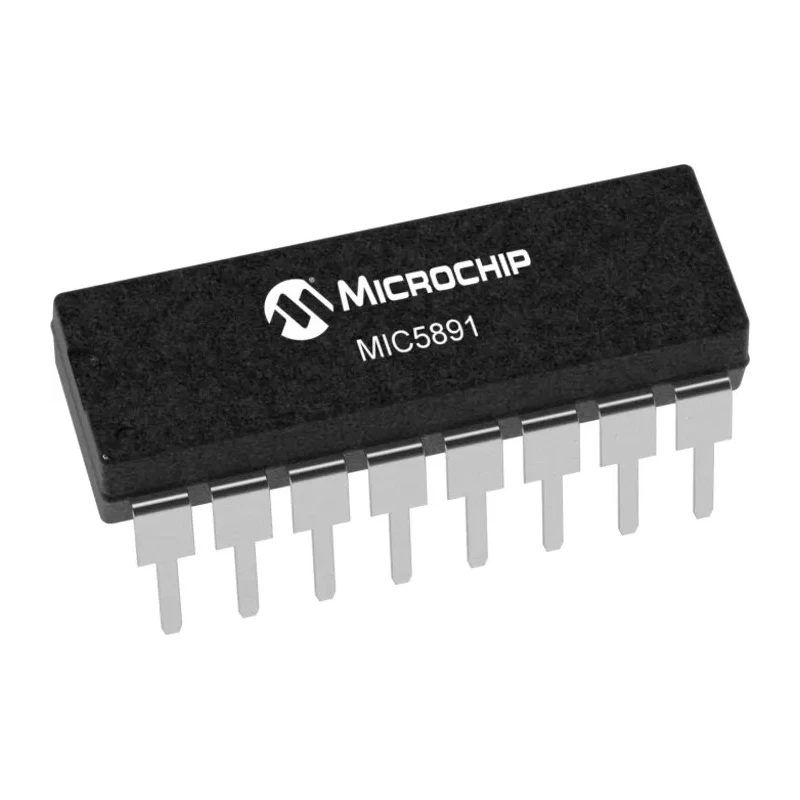

Microchip 8-Bit Transparent Latch Logic IC, 16-Pin SOIC, MIC5891YWM-TR

Free Delivery in India | Lowest Global Shipping Charges

Microchip 8-Bit Transparent Latch Logic IC, 16-Pin SOIC, MIC5891YWM-TR

Name: Microchip 8-Bit Transparent Latch Logic IC, 16-Pin SOIC, MIC5891YWM-TR
Brand: Microchip
SKU: 108952
Price: 3.24 USD
Availability: InStock



Category Logic ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	2.26mm
Length	10.34mm
Model	MIC5891YWM-TR
Mount Type	Surface
Series	MIC5891
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	16
Maximum Supply Voltage	12V
Logic Family	MIC
Logic Function	RS-Latch
Minimum Supply Voltage	5V
Latch Mode	Transparent
Number of Bits	8

Key Features

This latch IC features transparent RS-latch mode with 8 bits and 1 channel.
It operates with a minimum supply voltage of 5V up to a maximum of 12V.
The device includes bipolar Darlington transistor drivers capable of sourcing 500mA per output.
Compatible with CMOS, PMOS, NMOS, and TTL logic inputs for versatile interfacing.
Low power CMOS latches provide efficient operation at frequencies up to 5MHz.
Open-emitter outputs feature suppression diodes for protection against inductive load transients.
Operating temperature range extends from -40°C to 85°C, suitable for industrial environments.
Surface mount technology with a 16-pin SOIC package ensures compact and reliable installation.

Product Description

Microchip MIC5891YWM-TR is an 8-bit transparent latch integrated circuit designed for high-voltage and high-current digital logic applications. Packaged in a 16-pin SOIC surface-mount form factor, this device provides efficient operation with CMOS, PMOS, NMOS, and TTL-compatible inputs. The latch includes CMOS control circuitry for common STROBE and OUTPUT ENABLE functions, making it suitable for varied logic control tasks.

The IC features bipolar Darlington transistor drivers capable of sourcing up to 500mA per output with integrated suppression diodes that provide protection against load transients. It operates typically at frequencies up to 5MHz with a 5V logic supply voltage. The device supports minimum and maximum supply voltages of 5V and 12V, respectively, enabling broad application scope.

Operating temperatures range from -40°C to 85°C, ensuring reliability in diverse industrial, manufacturing, and electronic instrumentation environments. The IC's compact dimensions (length: 10.34 mm, height: 2.26 mm) facilitate use in compact electronic assemblies.

This transparent latch is particularly effective in applications requiring high-voltage, high-current driving capability with low power consumption and flexible logic compatibility. It finds uses in industrial automation, control systems, and other sophisticated electronic circuits.

High voltage, high current 8-bit latch outputs with Darlington transistor drivers. Open-emitter outputs with transient protection diodes enhance durability. Compatible with CMOS, PMOS, NMOS, and TTL logic input levels for versatile interfacing.

Low-power operation supports stable CMOS latches at 5MHz frequencies. 16-pin SOIC surface mount package for compact and space-saving board design. Wide operating temperature range ensures robust industrial use. Typical dimensions of 10.34 mm length and 2.26 mm height.

This Microchip product is an essential component in electronic designs requiring reliable, efficient, and robust latch IC performance with high-voltage and current output capabilities. Explore more Microchip semiconductor products on EnvMart.

Explore more products in our Logic ICs category.
